2.2.2. Sensor Installation
ORP sensor
pH sensor
Permanently
connected cable
CLB3 Free
Chlorine sensor
Unique 13.5 mm
Swivel cap with
o-ring
USE NO Teflon
tape
Screw 13.5 mm
threads into
threaded cap
until o-ring
seats. Hand
tight should be
enough
DO NOT over
tighten
DCM2-Cl
versions of the
controller are
supplied with a
CLB3 free
chlorine sensor,
instead of an
ORP sensor. The
CLb3 sensor
also uses the
13.5mm cell.

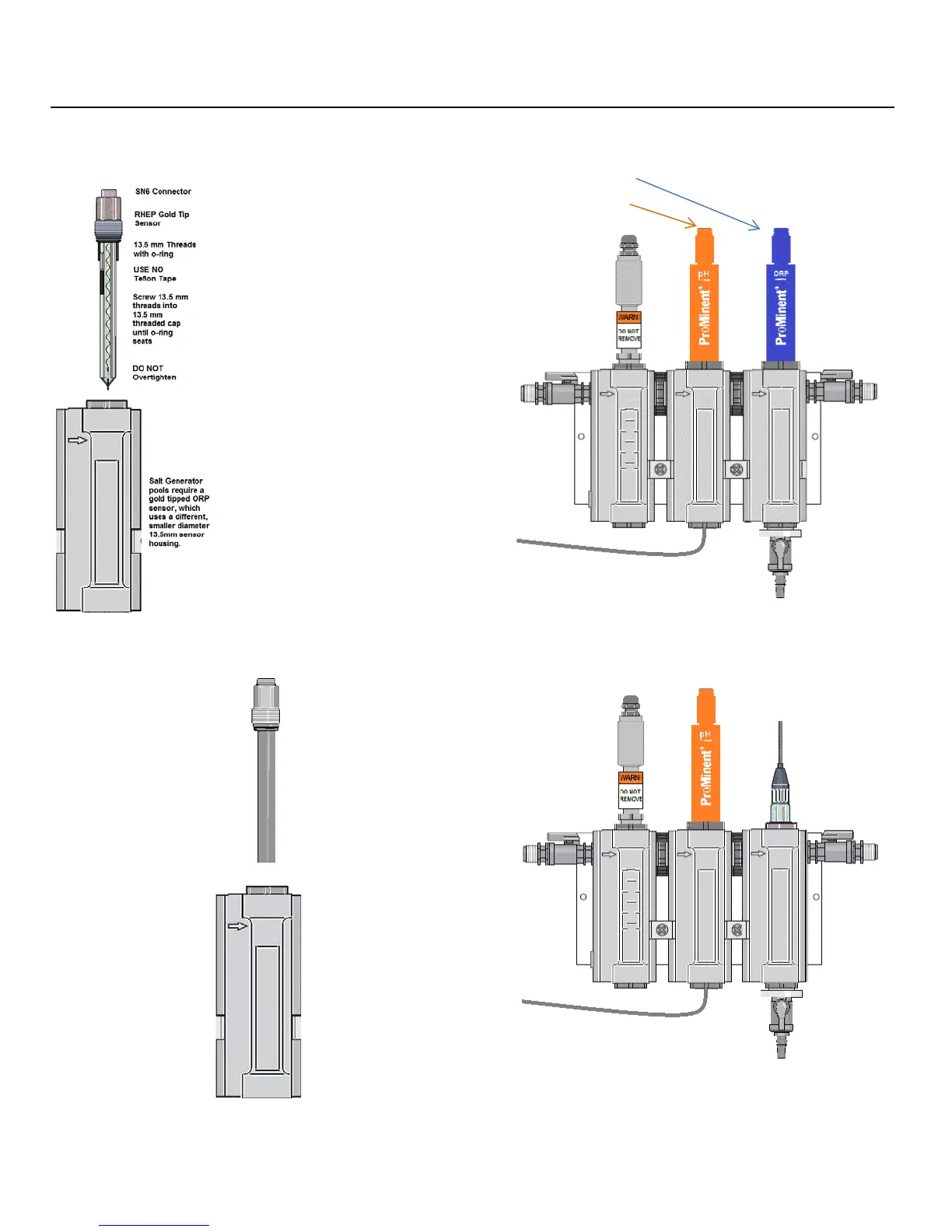

DCM200 Sensor Arrangement
DCM2-Cl Sensor Arrangement
CLB3 Sensor
