DCM 2 Installation
Page 8
control involves
irritating, corrosive,
caustic, and potentially
toxic chemicals. Use
extreme caution and
comply with all national,
state and local
regulations and
recommendations for the
handling and storage of
2 .2 System Mounting

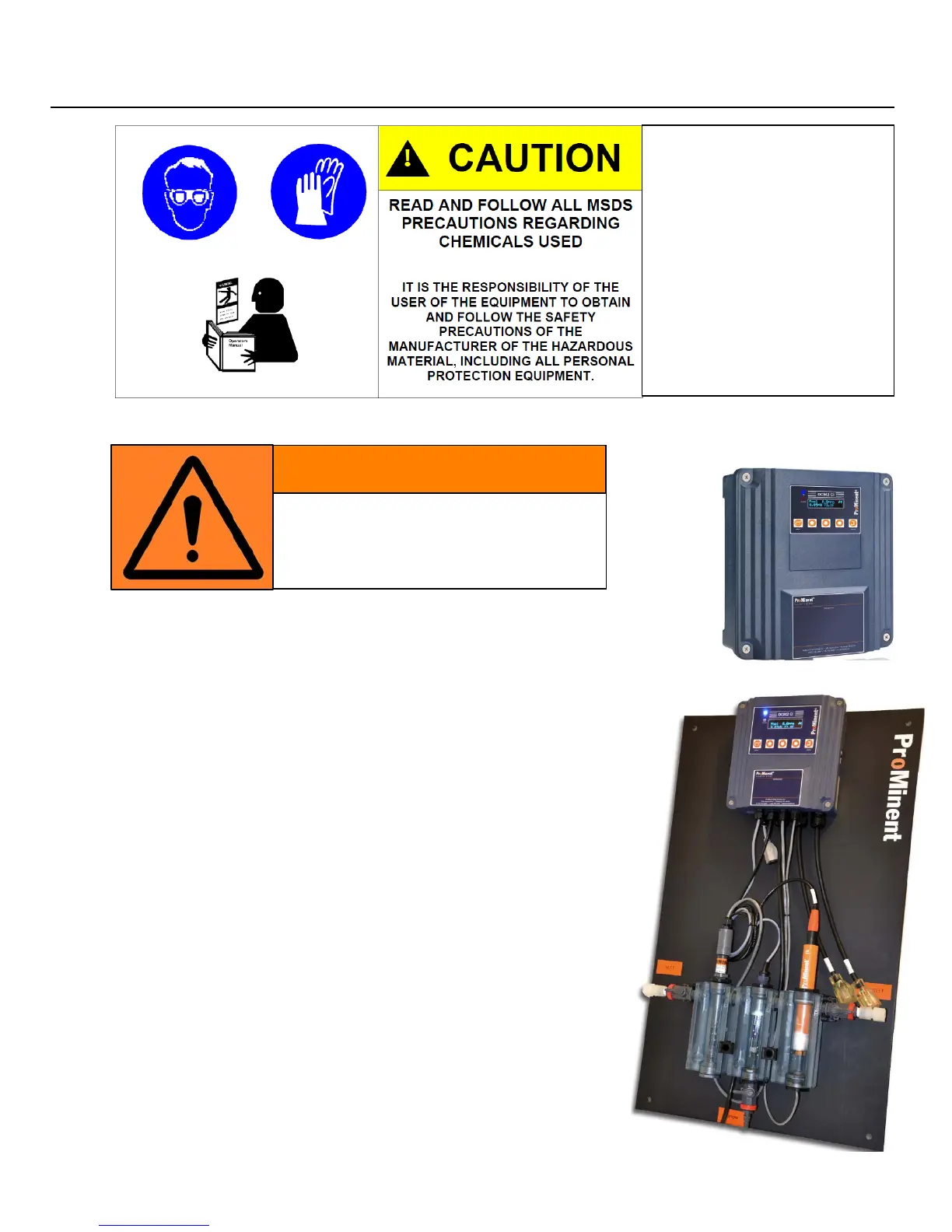

Fully Assembled System on Acrylic Backpanel
• Locate an area on a flat wall large enough to accommodate the full size of the
18 x 30” acrylic system panel with enough extra room to
accommodate flexible sample tubing connections.
• NOTE: Location of the system should not be in the direct
sunlight if mounted outside, as this may cause false
temperature readings and can cause temperatures inside the
enclosure to exceed maximum temperature ratings of 120°F.
• The controller is shipped with a 3 ft. power cord already installed,
for easy connection to a close indoor wall receptacle.
Alternatively, you may choose, or be required by local electrical
code, to install conduit into the bottom of the controller enclosure.
Refer to the wiring section of this manual for enclosure opening
sizes and locations.
• Refer to dimensional drawings for location and spacing of pre-
drilled mounting holes, measure and mark these locations on the
wall.
• Approximate weight of the assembled system with water flowing,
may be in excess of 30 lbs., so take care to choose adequately
sized mounting hardware.
• NOTE: Spacers on the back of the acrylic panel, if present, are
not secured and can be easily removed from their groove, if
desired.
