31

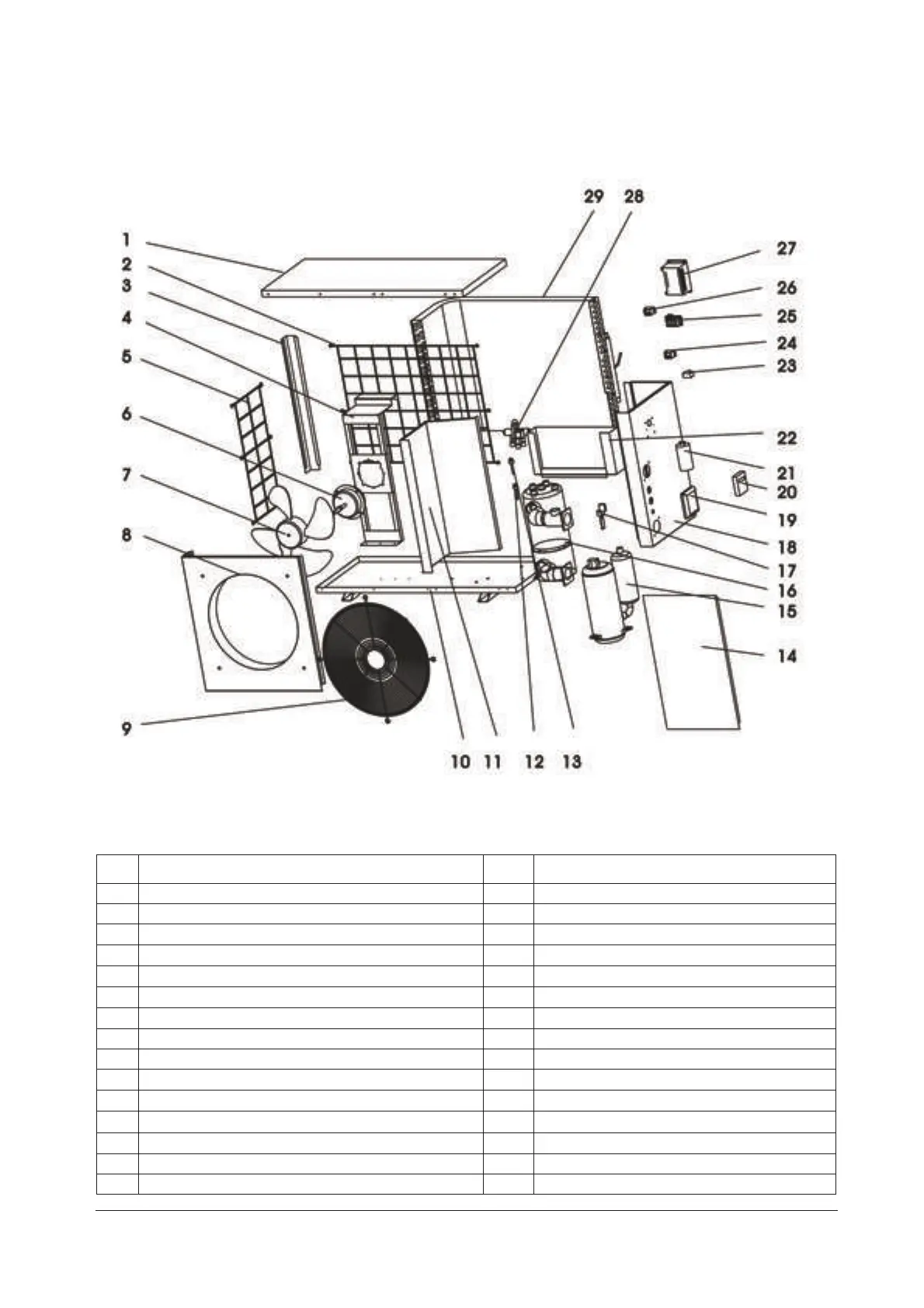

7. de View and Spare Parts PP07C, PP10C, PP15CExplo
Pos. Part Name Pos. Part Name
01 Top cover 16 Heat exchanger
02 Back web 17 Water flow switch
03 Back holder 18 Right panel
04 Motor bracket 19 Box for wire controller
05 Left web 20 LED-wire controller
06 Fan motor 21 Comp. apa itance
07 Axi blower fan 22 Controlling box
08 Front panel 23 Motor capacitance
09 Fan protection web 24
10 Bottom plate 25 Terminal 2
11 Middle plate 26 Relay
12 Pressure switch (Low) 27 Main controller
13 Pressure switch (Mid) 28 4 way valvel
14 Front- ight panel 29 Down condenser
15 Compressor
cc
al
r
Relay
