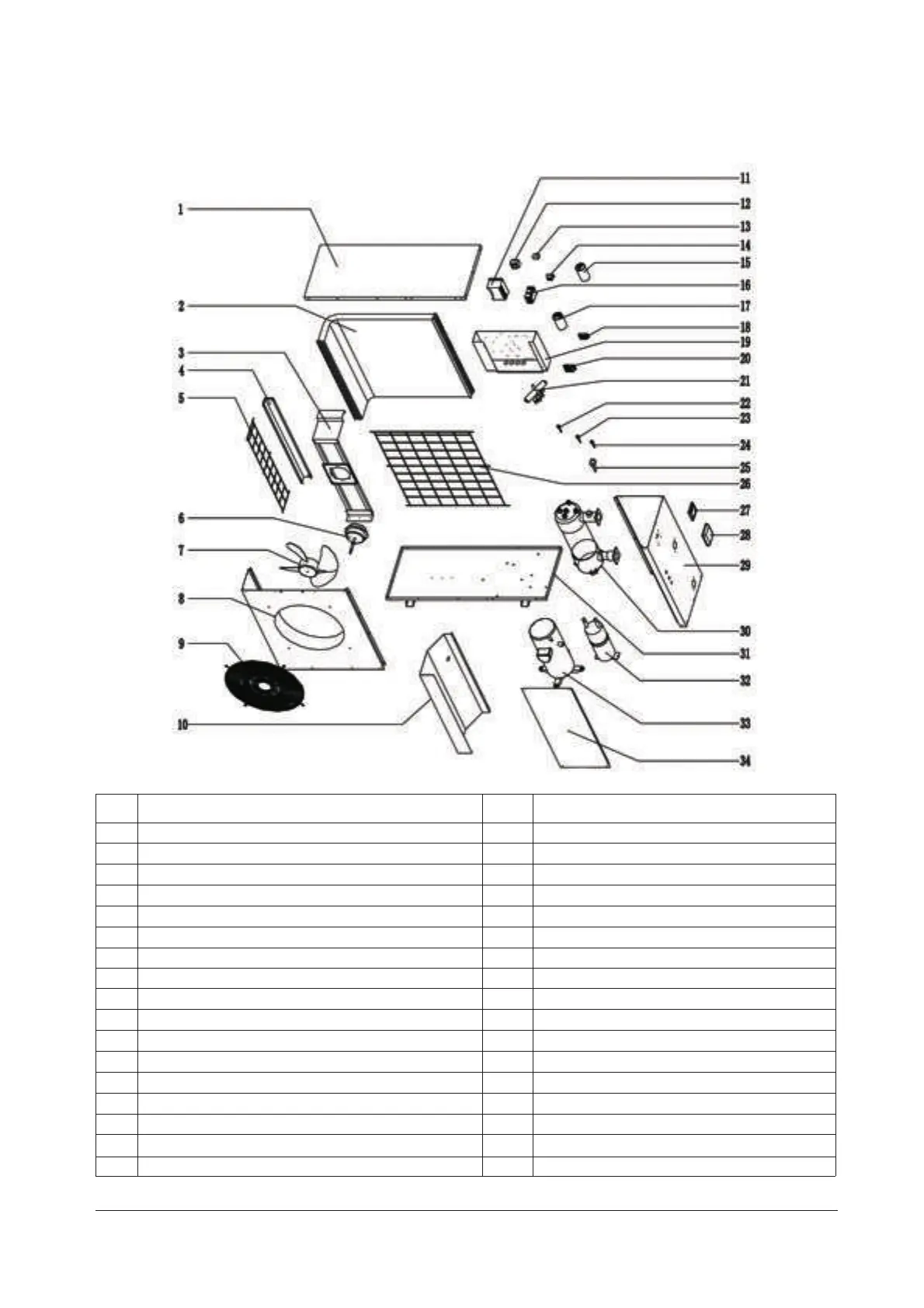

7. de View and Spare Parts PP20CExplo
Pos. Pos.Part name Part name
01 Top cover 18 Terminal 6
02 Condenser 19 Controlling box
03 Motor bracket 20 Terminal
04 Back holder 21 4-way valve
05 Left web 22 Pressure switch (mid)
06 Fan motor 23 Pressure switch (low)
07 Axis blower fan 24
08 Front panel 25 Water flow switch
09 Fan protection web 26 Back web
10 Middle plate 27 LED-wire controller
11 Controlling box 28 Box for wire controller
12 comp. starting relay 29 Right panel
13 Motor capacitance 30 Heat exchanger
14 lay 31 Bottom plate
15 Comp capacitance (running) 32
16 AC contactor 33 Compressor
17 Comp. capacitance (starting) 34 Front-right panel
Pressure switch (high)
