Appendix A System Diagrams
SE-8134 SERIES USER MANUAL
Page: A-5

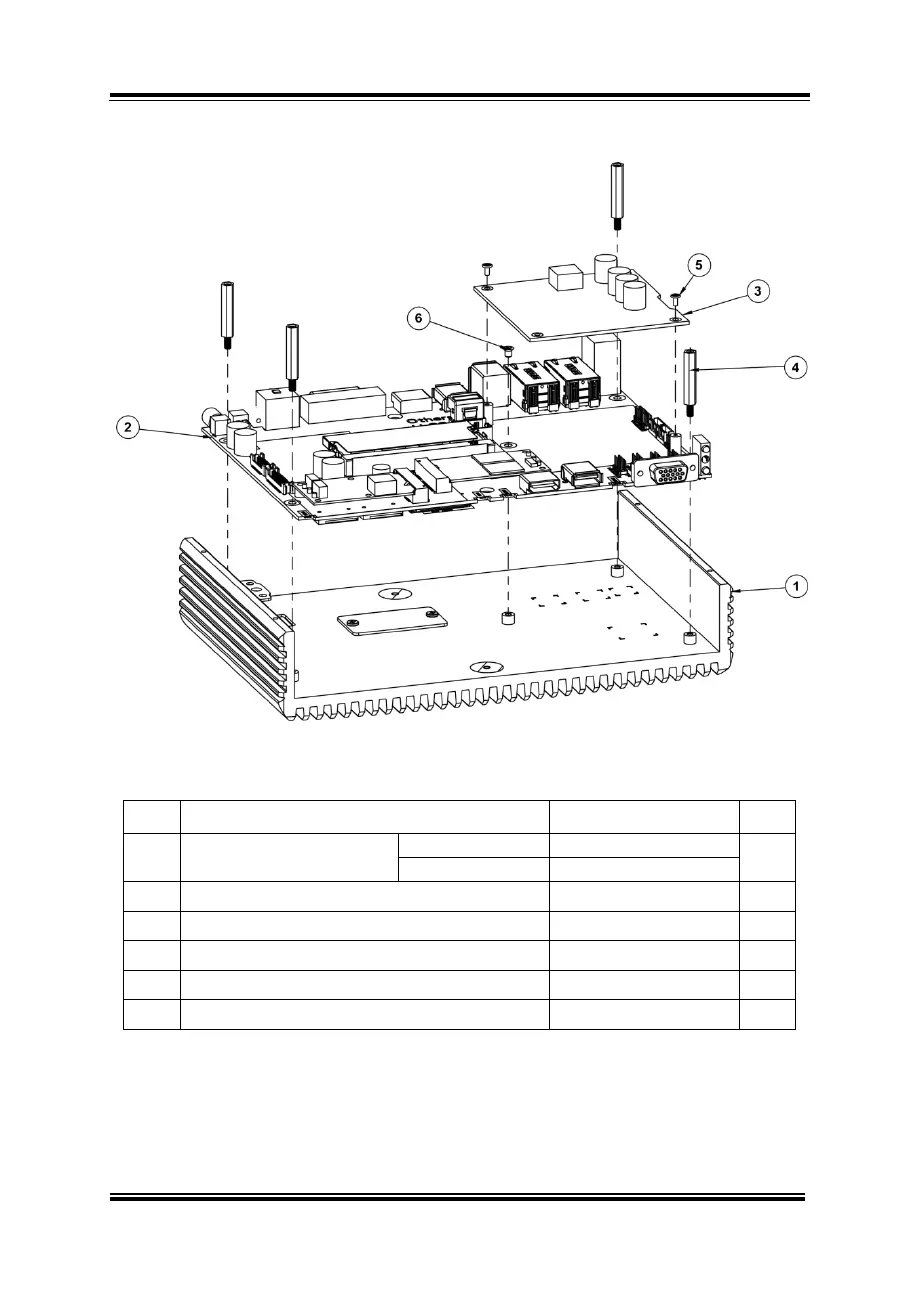

Mother Board Exploded Diagram
No.
Component Name
Part No.
Q’ty
1
Heat Sink Assembly
Black
1
Silver
2
SB-8134 M/B
1
3
PoE Board
SR-8134RB-D0N
1
4
HEX Boss(NI) M3x0.5Px6L,H=24.7mm
22-252-30025901
4
5
Fillister Head Screw #1/M2x0.4Px4mm
22-272-20004011
2
6
Flat Head Screw #2/M3x0.5Px5mm
22-215-30005001
1
