Chapter 3 Hardware Configuration
SE-8134 SERIES USER MANUAL
Page: 3-15

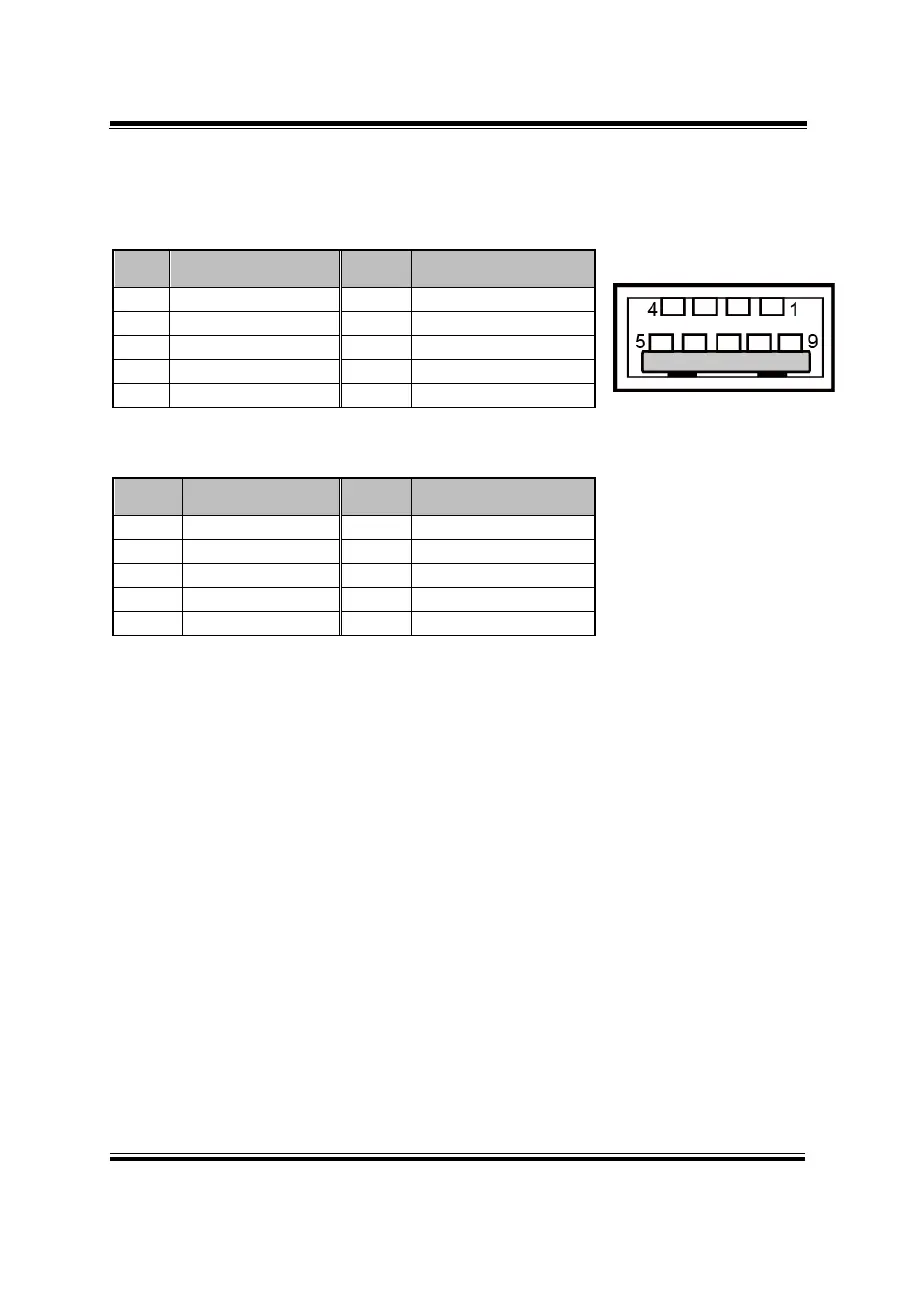

3.4.7 USB 3.0 Connectors
Connector Location: USB2, USB3
Description: USB 3.0 Connectors
USB 3.0 (USB2) signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
VCC5_USB2
5
USB3_RXN3
2
USB2_P3_DN
6
USB3_RXP3
3
USB2_P3_DP
7
GND
4
GND
8
USB3_TXN3
-
-
9
USB3_TXP3
USB 3.0 (USB3) signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
VCC5_USB3
5
USB3_RXN4
2
USB2_P4_DN
6
USB3_RXP4
3
USB2_P4_DP
7
GND
4
GND
8
USB3_TXN4
-
-
9
USB3_TXP4
USB2/
USB3
