protech SE-8134 User Manual

Chapter 3 Hardware Configuration
SE-8134 SERIES USER MANUAL
Page: 3-20

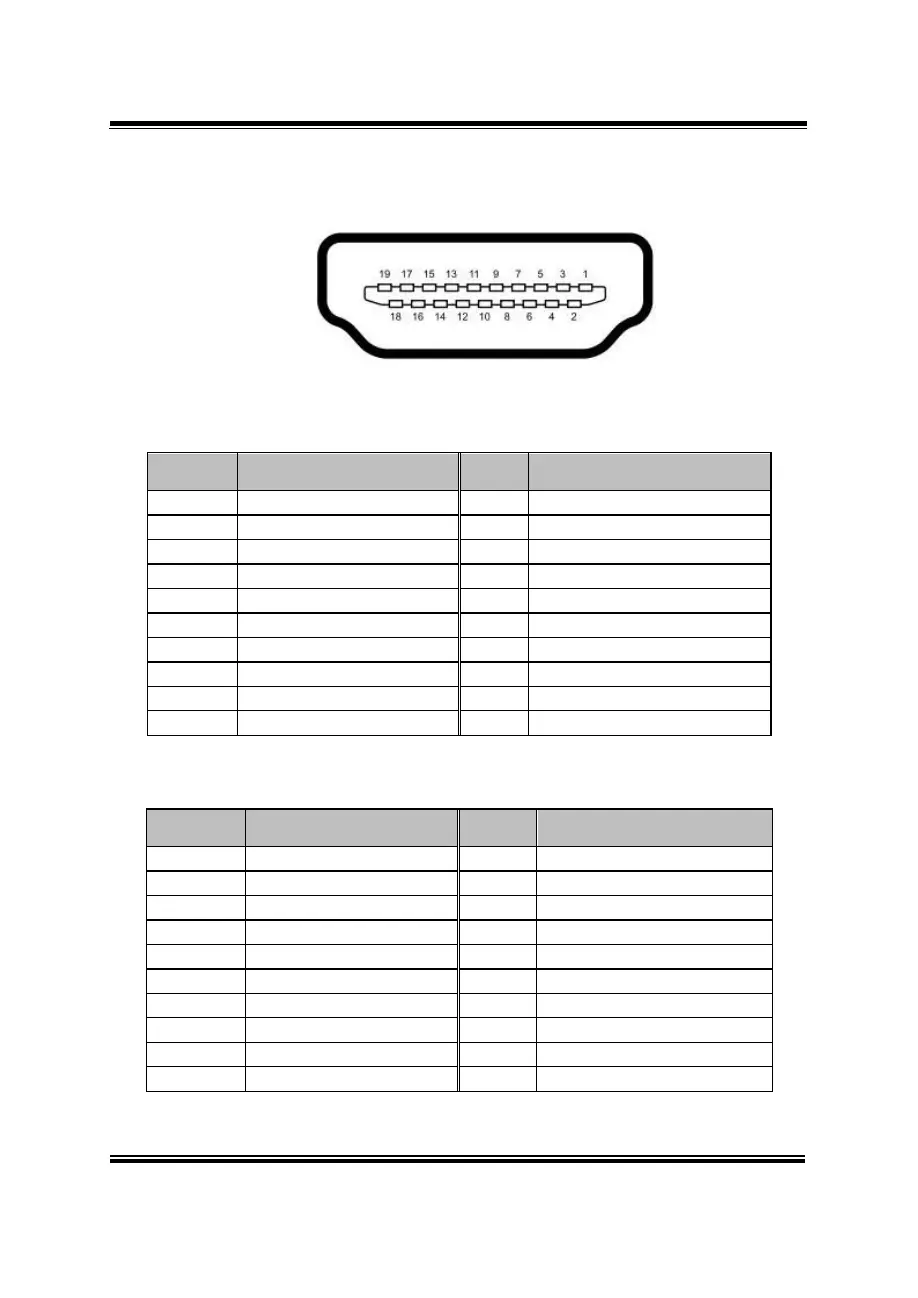

3.4.12 HDMI Port Connector
Connector Location: HDMI1, HDMI2
Description: Display Port Connector
HDMI Connector (HDMI1) signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
DP1_HDMI_P2
2
GND
3
DP1_HDMI_N2
4
DP1_HDMI_P1
5
GND
6
DP1_HDMI_N1
7
DP1_HDMI_P0-
8
GND
9
DP1_HDMI_N0
10
DP1_HDMI_CLKP
11
GND
12
DP1_HDMI_CLKN
13
NC
14
NC
15
DP1_HDMI_SCL
16
DP1_HDMI_SDA
17
GND
18
VCC5_HDMI
19
DP1_HDMI_HPD_IN
20
-
HDMI Connector (HDMI2) signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
HDMI_P2
2
GND
3
HDMI_N2
4
HDMI_P1
5
GND
6
HDMI_N1
7
HDMI_P0
8
GND
9
HDMI_N0
10
HDMI_CLKP
11
GND
12
HDMI_CLKN
13
NC
14
NC
15
HDMI_SCL
16
HDMI_SDA
17
GND
18
V5_HDMI
19
HDMI_HPD
20
-
HDMI1/ HDMI2
