Menu Path Advanced > F81946 Super IO Configuration >
Serial Port 1 Configuration

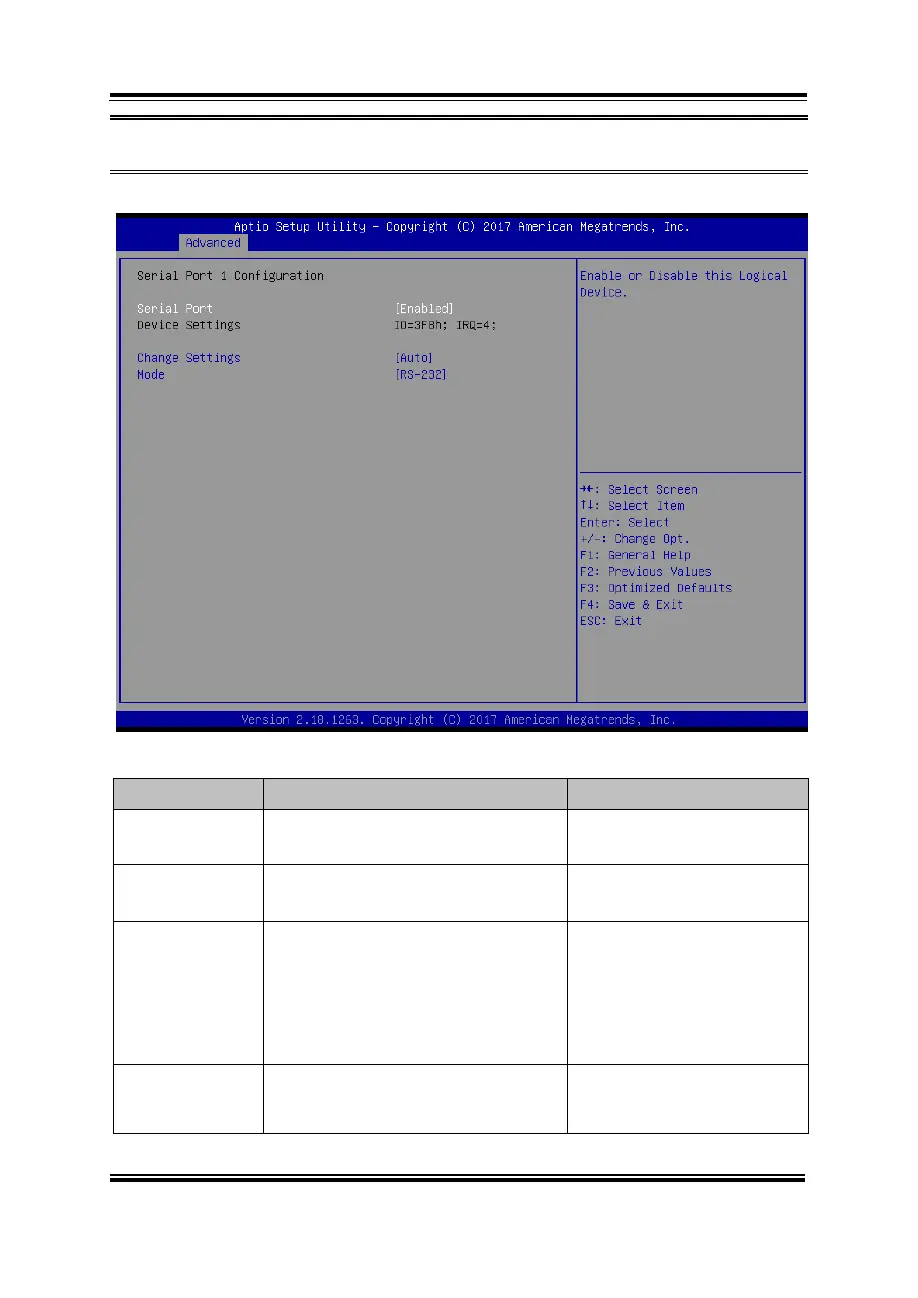

Serial Port 1 Configuration Screen
BIOS Setting
Options
Description/Purpose
Serial Port
- Disabled
- Enabled
Enables or Disables Serial
Port 1.
Device settings
No changeable options
Displays the current settings
of Serial Port 1.
Change Settings
- Auto
- IO=3F8h; IRQ=4;
- IO=3F8h; IRQ=3,4,5,6,7,10,11;
- IO=2F8h; IRQ=3,4,5,6,7,10,11;
- IO=3E8h; IRQ=3,4,5,6,7,10,11;
- IO=2E8h; IRQ=3,4,5,6,7,10,11;
Allows you to select specific
IO address and IRQ for Serial
Port 1.
Mode
- RS-232
- RS-422
- RS-485
Selects COM mode.
