Getting Started

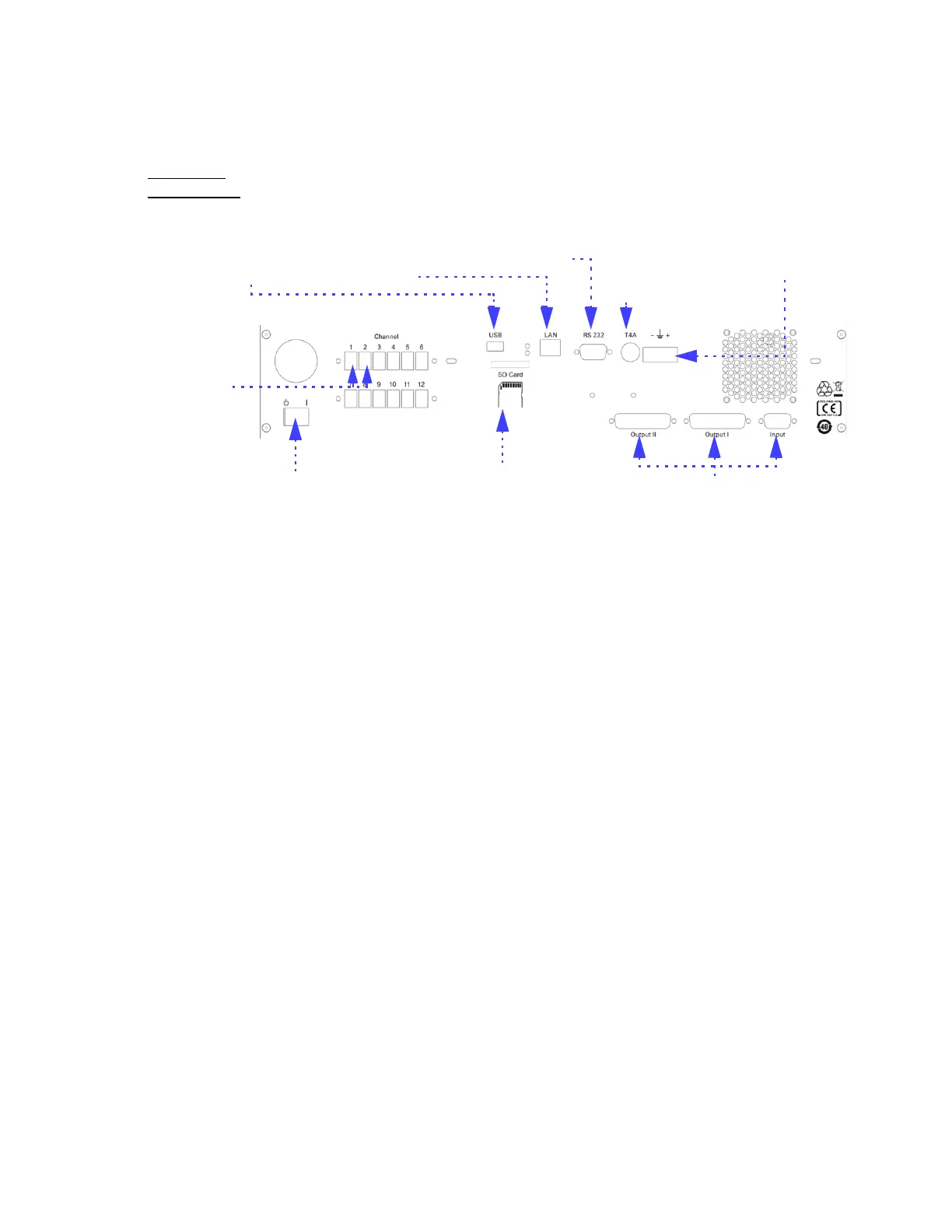

Cardcage
Bottom view
USB
USB connector, for
link
to configuration
computer.
LAN
LAN connector, for
link to network.
RS 232
Not used
Fuse
Replace only with
same type (T4A L
250V, P/N 2110-
1362).
Power
Connect to DC
power supply.
Channel
Connectors to
optical fibres (
E2000-
Connection APC)
(depending on
channel options)
Memory card slot
Disabled; for
further use
On/Off
To switch
FIBERSYSTEM
8000
instrument
on
or off.
Relays
Connectors to input and output
relays
