Getting Started

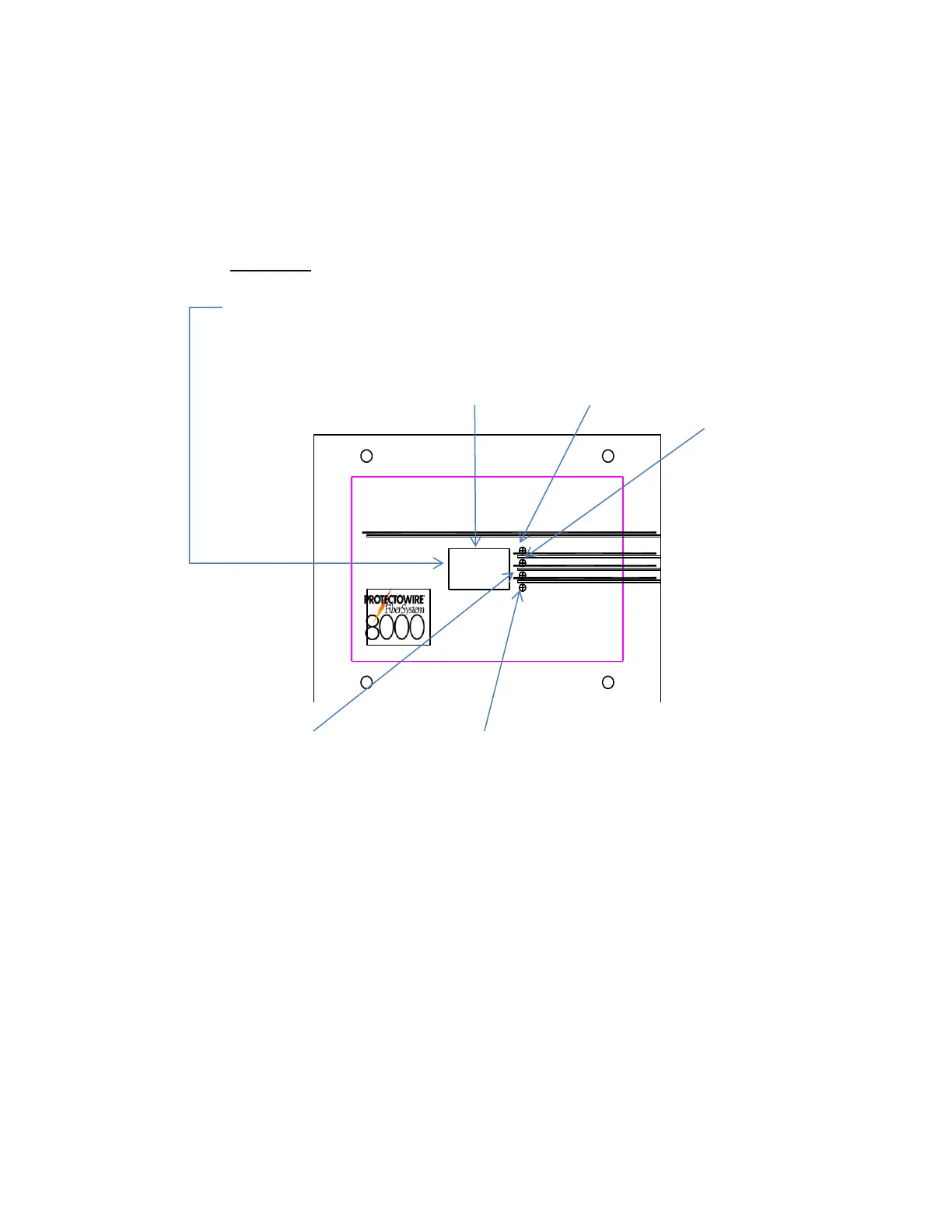

Front, Rear and Connection Panels of the FIBERSYSTEM
8000 Instrument
FIBERSYSTEM 8000 Indoor Housing
(19, Option - H01D)
Frontpanel
Color display
Top line indicates system
status (e.g. Ready, Error,
Measuring) -Bottom lines
indicate alarm conditions.
Display color
indicates:
white (=default), red
(=alarm), yellow
(=fiber break)
Power LED
Switches on
after booting as
readiness
indicator.
Tx/Rx LED
Indicates
communication
activity
between
the
FIBERSYSTEM 8000
and the
controller.
Alarm LED
Fault LED
Indicates the
FIBERSYSTEM 8000
has an
error condition
(e.g. fiber
break).
On when a temperature value
measured exceeds alarm
limits
on one or more
channels.
18
The Protectowire Company, Inc.
FIBERSYSTEM 8000 - Linear Heat
Series
Fiber Optic
Linear Heat Detection
POWER
TX/RX
FAULT
ALARM
