HYPER3™ IN-LINE REGULATOR
ADJUSTMENTS AND MAINTENANCE
HYPER3™ REGULATOR DIS-ASSEMBLY INSTRUCTIONS
To disassemble the Hyper3™ regulator you will need a 3⁄16” Allen key and a 5⁄16” Allen key. Place
the 3⁄16” Allen key inside the top cap and the 5⁄16” Allen key inside the bottom cap. Unscrew the
bottom cap from the Hyper3™ body.
Next unscrew the brass seat housing from the body with a 3⁄16” Allen key. Slide the swivel from
the body.
To change the seat, pull out the old seat from the housing with a sharp object. Insert the new seat
in place and push it down with a fl at object. Notice that it takes about 2000 shots for the seat to
perfectly sit into the seat housing. This is called the break in period for the regulator.
Remember to apply lube to the 010 and 013’s in the regulator before re-assembly.
Further disassembly to service the top section of the Hyper3™ should be performed by a trained
Tech.
W W W . P R O T O P A I N T B A L L . C O M
21

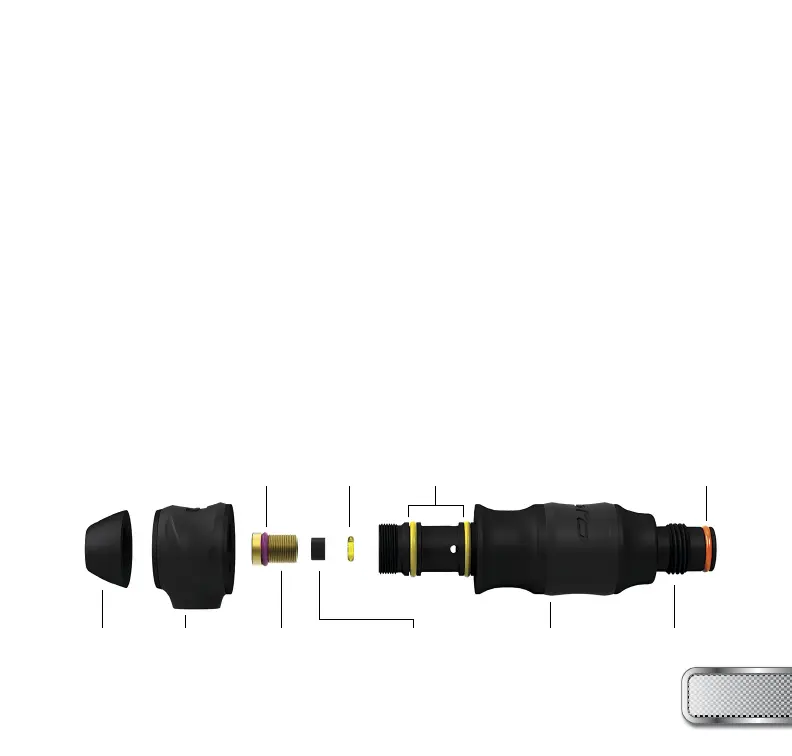

010 BN 70 013 BN 70
SEAT HOUSINGSWIVELBOTTOM CAP TOP CAPBODY
007 UR 90
011 BN 70
REGULATOR SEAT
