QUICK START UP GUIDE
Before playing with your new REFLEX RAIL™ paintball marker there are a
few important steps to take.

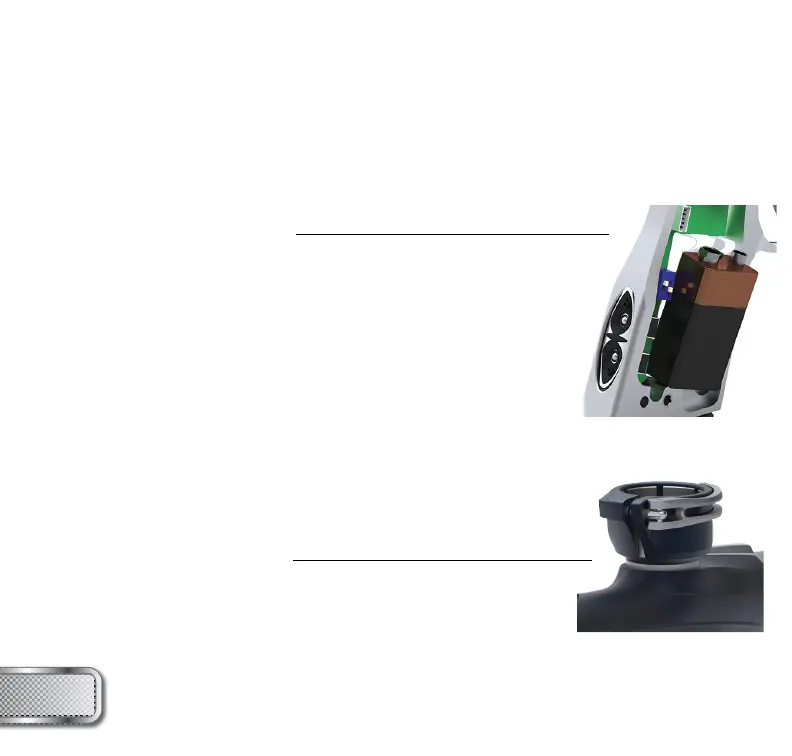

STEP 1. BATTERY INSTALLATION
A. Remove three right hand side grip panel screws with a 3/32” Allen key.
B. Open grip panel and install 9V battery into the connector inside the frame.
Note the markings on the board above the battery terminals that indicate
which of the board contacts are positive and negative and install the battery
accordingly.
C. Close grip panel and tighten the three screws back. While closing the panel
observe that no wires get caught between the frame and the grip panel.
STEP 2. BARREL INSTALLATION
A. Screw on the barrel to the front of the REFLEX RAIL™. Make sure it threads
all the way in and is secure.
B. Attach the barrel sock so that it covers the tip of the barrel and secure the
strap around the back of the REFLEX RAIL™.
STEP 3. LOADER INSTALLATION
A. Use the lever arm to tighten your loader into the adjustable feedneck
on the REFLEX RAIL™. For best performance you need a force-feeding
motorized loader, preferably the Rotor™ Loader. Loader should now be
held in with a snug fi t.
QUICK REFERENCE
USING YOUR MARKER
