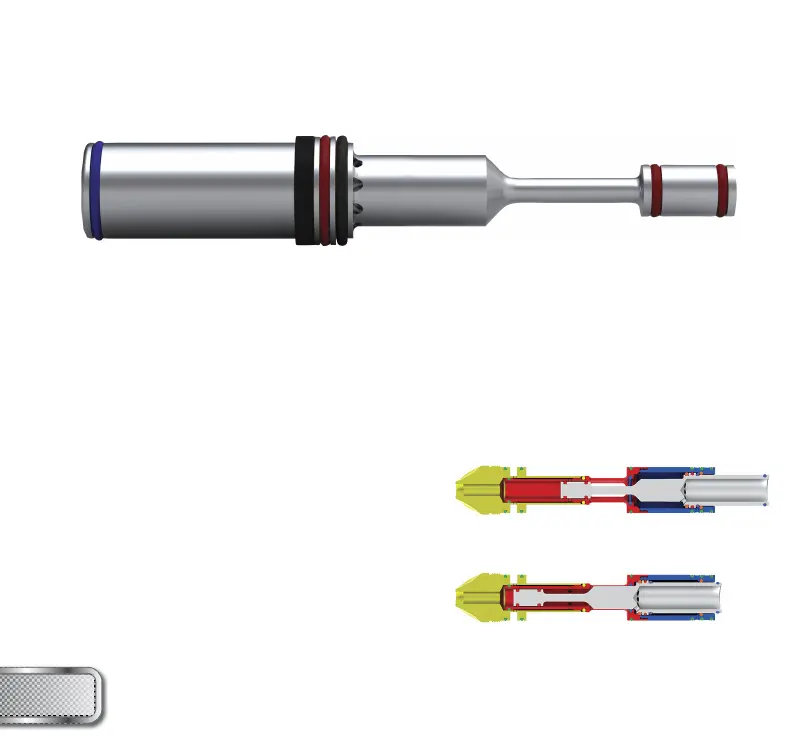

The REFLEX RAIL™ BOLT is the main component of the REFLEX RAIL™ marker. In order to
achieve the best possible performance of the REFLEX RAIL™ it is essential that the REFLEX
RAIL™ BOLT is kept clean, well lubed and in good working order.
The REFLEX RAIL™ BOLT should be cleaned and re-lubed after each day of use.
There are 4 parts in the REFLEX RAIL™ BOLT kit that mount together as one unit. To remove the
REFLEX RAIL™ BOLT from your REFLEX RAIL™, use a 1/4” Allen key and turn the Back Cap out 2
full turns counter clockwise. Now pull out the complete REFLEX RAIL™ bolt kit from the REFLEX
RAIL™.
To disassemble the REFLEX RAIL™ bolt kit, you unthread the front most part called the Can and
the Manifold from each other. Then pull out the actual moving bolt from inside these pieces.
Notice that to separate the Can and the Bolt you need to remove the bolt tip O-ring before the
bolt is able to slide through the Can.
HOW DOES IT WORK
Air is supplied into two points on the REFLEX RAIL™
BOLT. In the back air is routed through the Back Cap and
Manifold and fi lls up the supply chamber around the
Manifold. In the front air is routed through the solenoid
into the Can. This air pushes against the Sail on the Bolt,
which keeps the bolt in the back position.
When the REFLEX RAIL™ is fi red the solenoid is actuated
and the air inside the Can is exhausted out. The force created by the air
FORWARD POSITION
REFLEX RAIL™ BOLT
ASSEMBLY AND MAINTENANCE
BACK POSITION
W W W . P R O T O P A I N T B A L L . C O M
14
