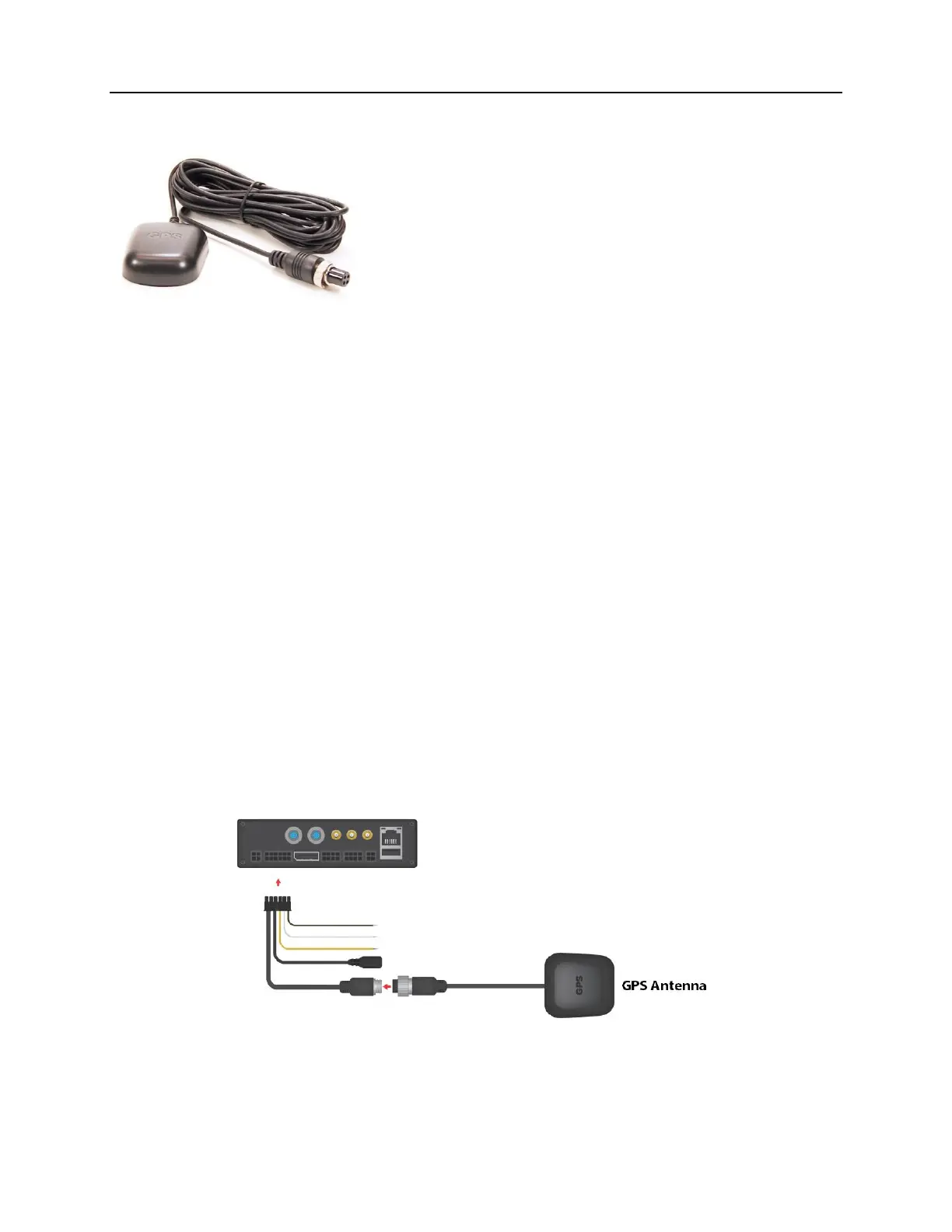

GPS Receiver Antenna Installation
The GPS Antenna (P/N: PD-1750) provides GPS data to the DVR,
this data includes vehicle speed, location, and current date/time.
The data can be used to trigger events, map the vehicles location
during playback, as well as syncronize date/time with the DVR.
Recommended mounting locations:
Typically the GPS Antenna is mounted to the dash in front of the driver close to the windshield.
Unsure about mounting location?
If you are unsure about your GPS mounting location providing proper signal strength, power on the DVR
unit with the GPS antenna connected prior to installing it, the GPS antenna will have a red LED light
come on underneath the “GPS” print. This light will flash red if a signal cannot be acquired, and will be
solid red if acceptable signal strength is acquired. Ensure the vehicle is outside, and then place the
antenna in the desired location, if the LED light stays solid red then that location is suitable for mounting.
If the LED light flashes red in the mounting location, then the signal is not acceptable and an alternate
location will need to be found.
The buttons are commonly mounted to the dash to the left of the gauge cluster, to the upper driver’s side
corner of the windshield (to the glass) or on the center console.
Installation:
The GPS Receiver Antenna has 4m (13 ft.) of cable. Because of the size of the antenna, it is best to start
routing this cable from the antenna location to the DVR. The black 4-pin connector on the antenna will
connect to the 4-pin “GPS” connector on the PD-1833 GPS / Event / Triggers at the rear of the DVR unit.
The GPS Antenna is waterproof and can be exterior mount, but can provide a good signal when mounted
in the vehicle interior. It can be fixed to the mounting surface using the included adhesive, the built-in
magnet, or simply placed on the surface if mounted in the front dash or rear deck.
