Digital HD Camera Installation
The DVR unit supports two (2) digital HD cameras which can be expanded up to four (4) digital HD
cameras by using PX-1848 Expansion Cables.
Digital HD Camera Cables/Connections:
Each of the digital HD cameras can be connected via a single 10 ft. or 20 ft. cable included with the
camera kit or using a specific combination of multiple cables (See below).

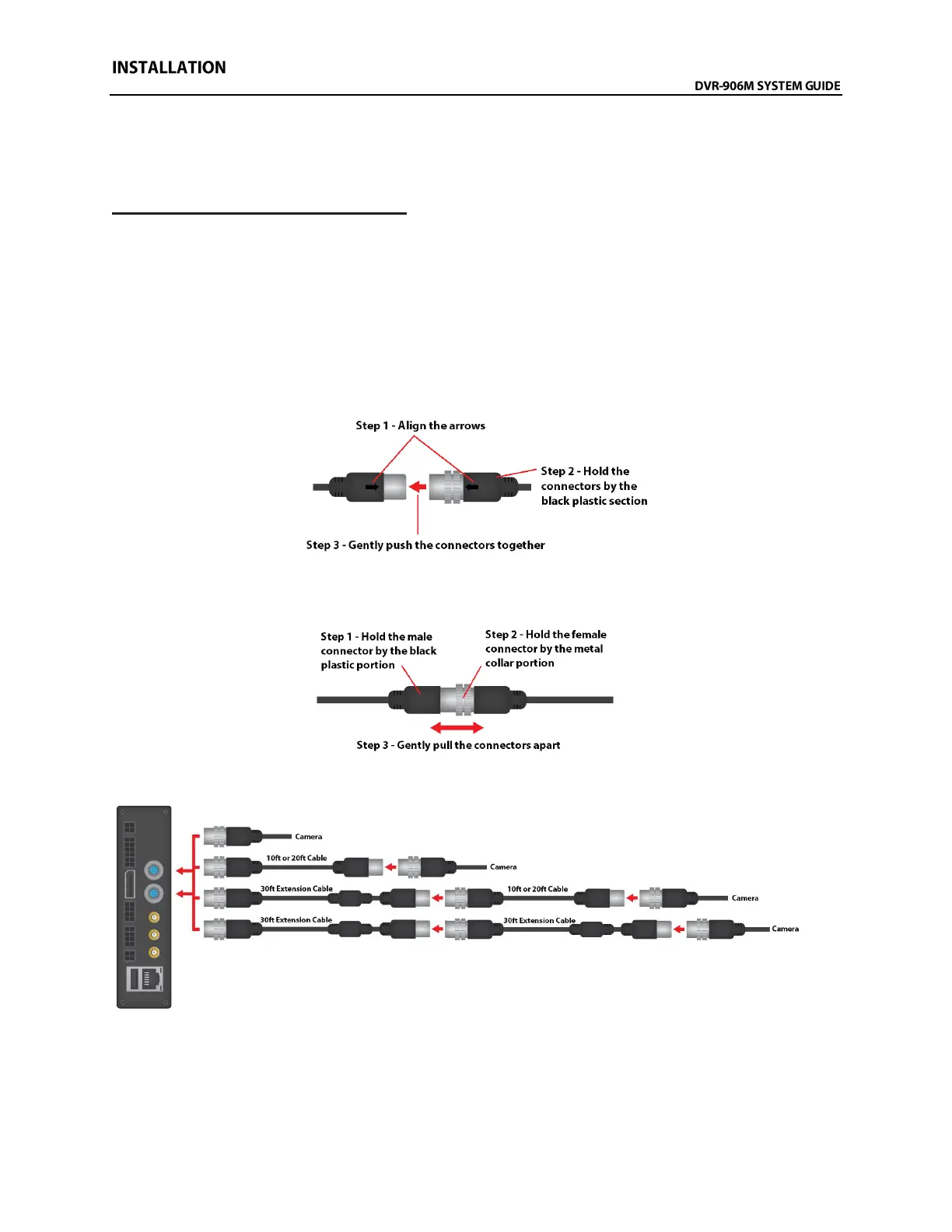

To connect a camera or cable, align the arrow on the connector with the notch on the plug on the DVR
unit (arrow should be visible when looking at the DVR unit from the top) and then gently press the
connector in holding on to the black part of the connector until a click is heard. The HD cameras and
cables use a sliding quick release collar on the female connectors, holding this connector by the sliding
metal collar will make it difficult for the release mechanism to engage when connecting the camera or
cable.
To disconnect a camera or cable, simply grab the female connector by the metal collar and pull it
backwards to disengage the locking mechanism and allow the connectors to separate.
Up to two (2) Digital HD cameras can be connected to the DVR using the configurations shown below:
IMPORTANT! If you are using a 30 ft. Extension Cable (Part # PX-1843) it must be connected directly to
the DVR Unit or to another 30 ft. Extension Cable in the proper order as shown above.
Connecting two 10 ft. / 20 ft. Cable together or between the 30 ft. Extension Cable and
the DVR will provide intermittent or no camera signal.
