DVR Installation
DVR Unit Mounting
The DVR unit is the core of the Recording System. All system connections go to the DVR unit and the
storage device (SD Card or SSD) is located inside the DVR unit. It is important to choose a good
mounting location for the DVR unit as its location should be readily accessible for viewing status/removing
the disk as well as optimal for reducing the installation time of the entire system.
Choosing Mounting Location:
The DVR unit itself is small and can be mounted in a variety of locations. The black lockable mounting
cage has four (4) pre-drilled holes for mounting; however additional holes can be drilled in the mounting
cage to provide better attachment to the mounting surface.
Things to consider when choosing mounting location:
Access to the front of the DVR to view lights and/or remove storage media
Access to insert and turn key to remove cover, test for accessibility if necessary.
Access to the rear of the DVR for service
Locate all structural members that may make it difficult to run wires. Avoiding these by choosing a
good mounting location saves installation time
Proximity to other RF devices such as two way radios and computers (must be at least 6” away)
Cable routing for power, GPS, Event Marker Button, triggers, and cameras
Fastening to mounting surface and what is behind it

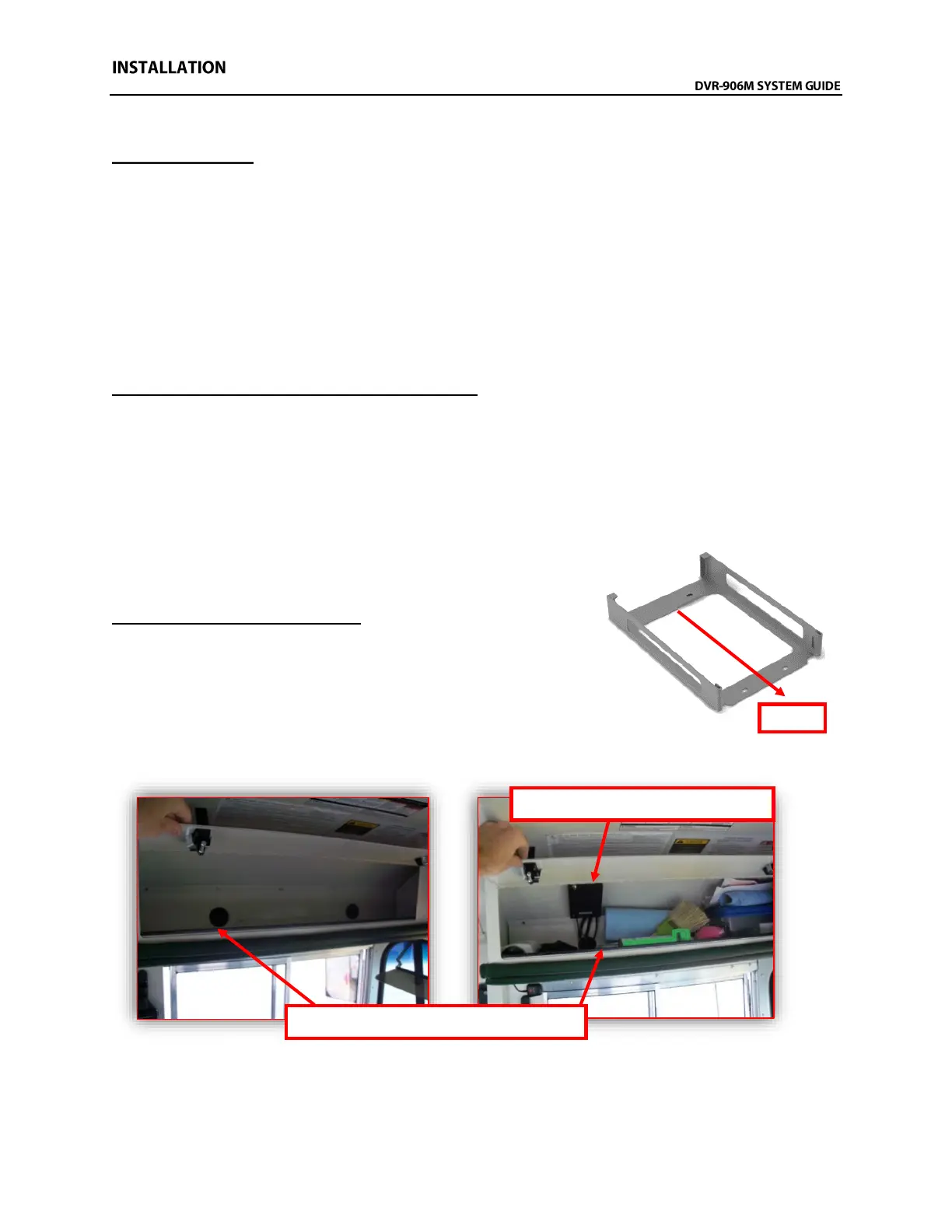

Recommended Mounting Locations:
Front overhead compartment above windshield: Mount to the
driver’s side for easy cable routing.
Compartment above the driver: Place locking enclosure and
use the key to ensure easy access.
Under the first seat behind the driver: Mount inverted directly
to the seat bottom.
