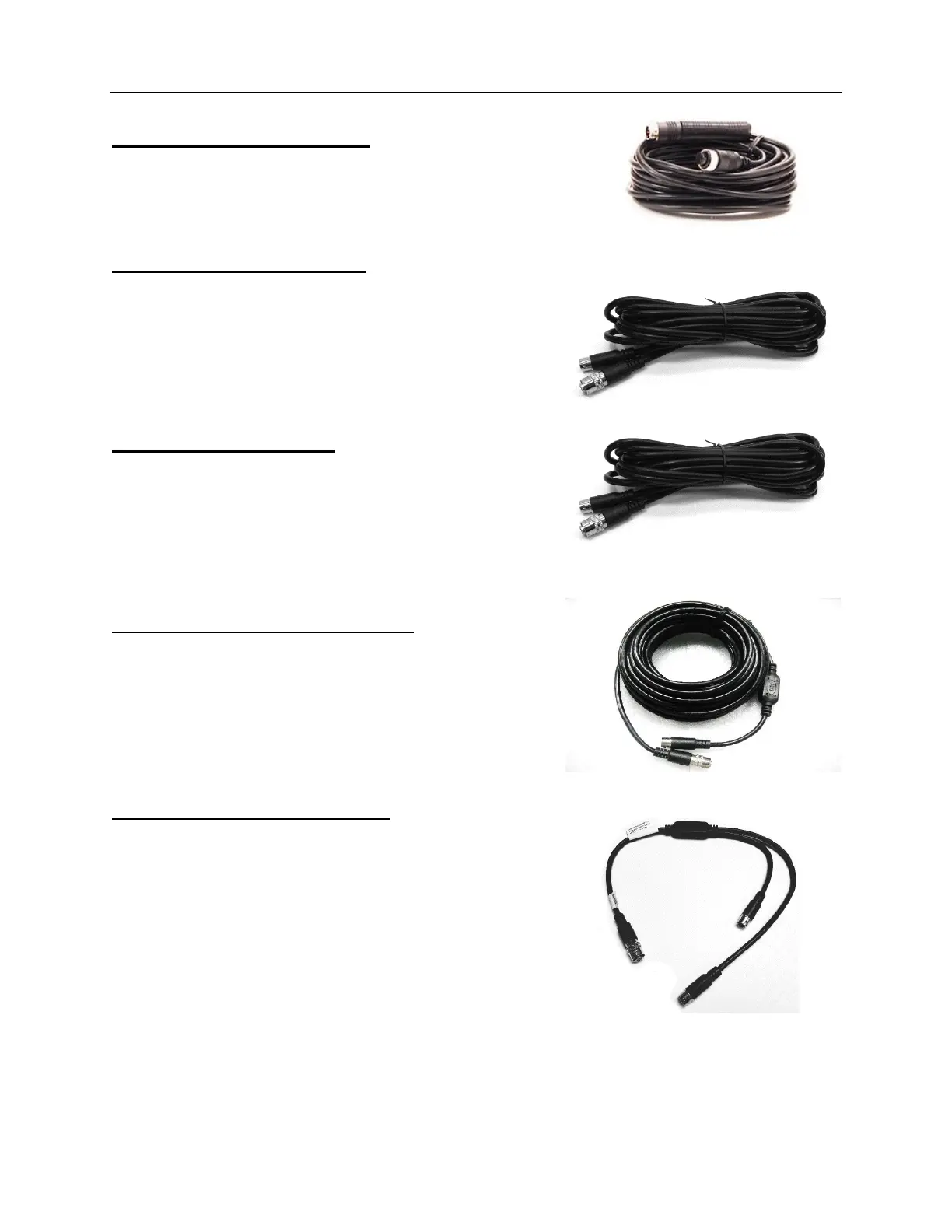

PX-1843 33ft Analog HD A/V Cable:
33ft Analog HD cables are used for the connecting both analog
standard definition (SD) and high definition (HD) cameras to the DVR
unit. The male ends connect to cameras and the female ends connect
to the DVR.
PX-1841 10ft Digital HD A/V Cable:
10ft Digital HD cables are used for the connecting digital HD
cameras to the DVR unit. The male ends connect to cameras
and the female ends connect to the DVR.
Note: Two 10-ft. cables cannot be connected to each other.
If more than one cable is needed, the PX-1843 30ft
Digital HD Extension Cable must be used.
PX-1842 20ft Digital HD Cable:
20ft Digital HD cables are used for the connecting digital HD
cameras to the DVR unit. The male ends connect to cameras
and the female ends connect to the DVR.
Note: Two 20ft cables cannot be connected to each other. If
more than one cable is needed, the PX-1843 30ft
Digital HD Extension Cable must be used.
PX-1843 30ft Digital HD Extension Cable:
30ft Digital HD cables are used for the connecting digital HD
cameras to the DVR unit. The male ends connect to cameras
and the female ends connect to the DVR. The 30ft cable may
be used by itself or with any other Digital HD cable, but the 30ft
cable must be closest to the DVR. Up to three (3) PX-1843
extension cables may be connected in series.
PX-1848 HD Camera Expansion Cable
The PX-1848 cable can be used on the Digital Camera 5 and 6
inputs of the DVR unit to allow the connection of a 7
th
and 8
th
camera. The cable splits the camera input into two (2) inputs; the
first is the original input, and the second is the original input number
plus two (2). It can be used to make the split at either the DVR
location or at the end of one of the standard cables. Only one (1)
cable can be used per digital input on the DVR.
