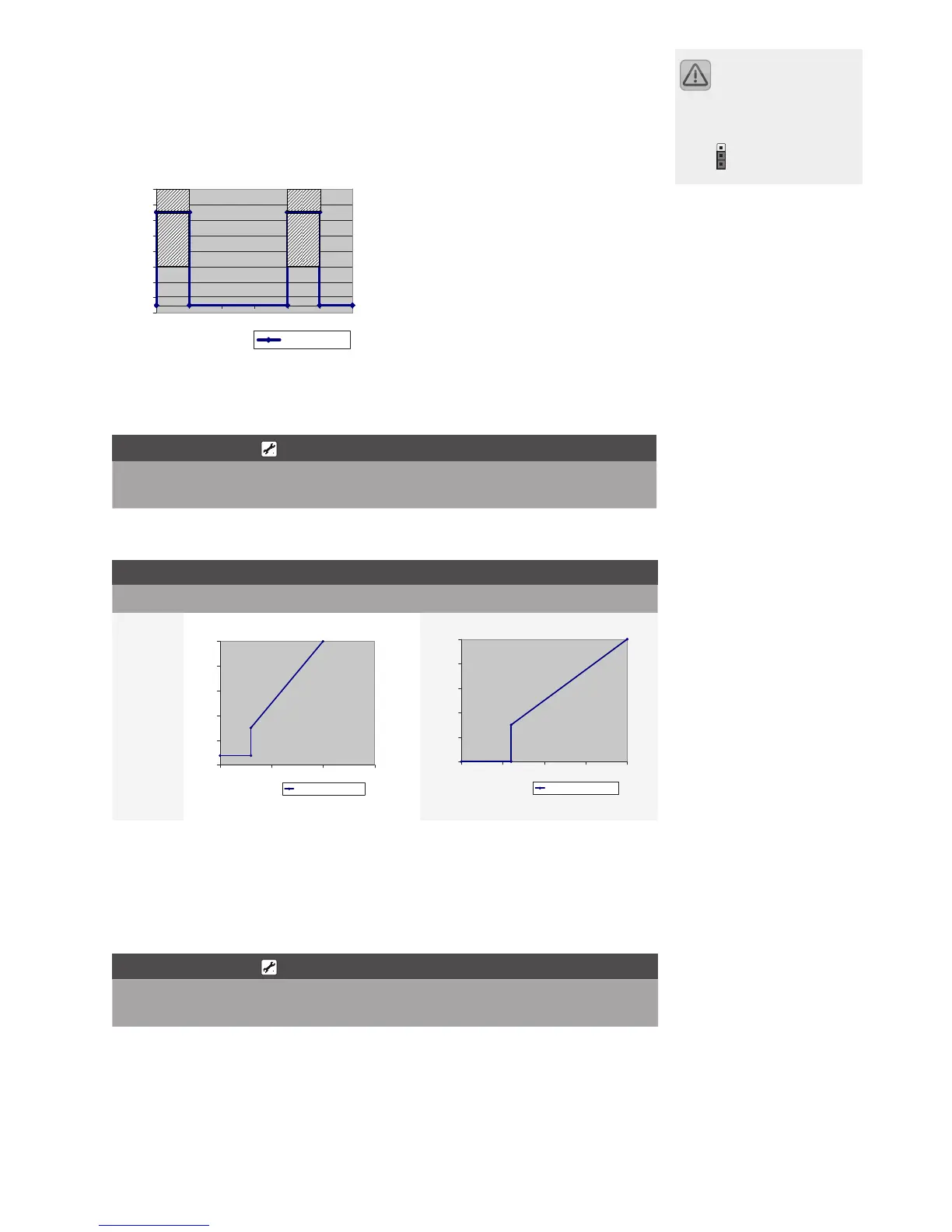

Control of the solar circuit pump via PWM signal
The controller emits a PWM signal at connection O1 for the control of PWM
pumps (jumper position PWM).
Base frequency = 2 kHz, approx. 12 V, approx. 5 mA
- Non-inverse PWM control
Non-inverse PWM control: Target RPM 0-100% equates to PWM 0-100%
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
5 1 Type of pump control
1 = Non-inverse PWM
control
1
Control output
A1 O1 O1
230 V AC
Analogue Type A
ANALOG Typ A
0
2
4
6
8
10
0 50 100 150
nSoll in %
U in Volt
bei nmin = 30 %
PWM Type A
PWM Typ A
0
20
40
60
80
100
0 25 50 75 100
nSoll in %
PWM in %
bei nmin = 30 %
A1 no RPM control, only switched operation on/o. Minimum switch-on time 5
sec.
- Inverse PWM control
Inverse PWM control: Target RPM 0-100% equates to PWM 100-0%
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
5 2 Type of pump control
2 = Inverse PWM
control
1
Selections are made via
the jumper on the connec-
tion assembly.
PWM position:
PWM
ANA
-1
1
3
5
7
9
11
13
15
0 125 250 375 500 625 750
t in µs
U in V
PWM = 25 %
