Prozeda Solareg II BASIC HE - Drain-Back Function

12

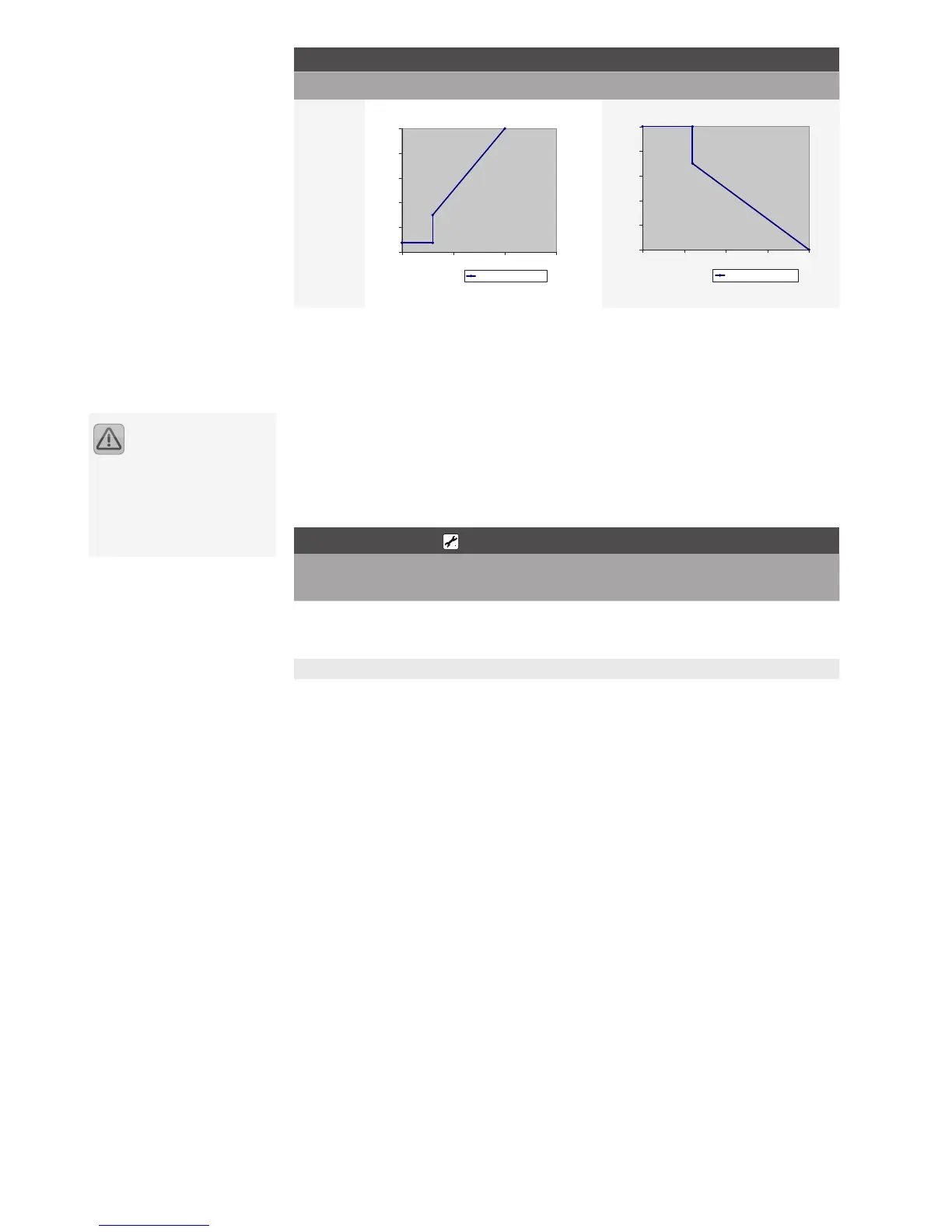

Control output
A1 O1 O1
230 V AC
Analogue Type A
ANALOG Typ A
0
2
4
6
8
10
0 50 100 150
nSoll in %
U in Volt
bei nmin = 30 %
PWM Type B
PWM Typ B
0
20
40
60
80
100
0 25 50 75 100
nSoll in %
PWM in %
bei nmin = 30 %
A1 no RPM control, only switched operation on/o. Minimum switch-on time 5
sec.
7.1.5 Drain-back function
If this function is active when the solar circuit pump is switched o, then the
medium drains back into a collection container. This prevents the system freezing
or overheating. When the pump is switched back on, it is operated at maximum
capacity for the preset ll time before then switching to capacity control.
Recooling is not possible at this time (menu items 3 and 4 are not shown)
"Basic Setup" menu
Display Meaning Value range Factory set-
ting
Line Value
0 2 Collector protection function
0 = O
1 = On
2 = Drain back
0 = O
1 120 °C Collector protection temperature 80 – 150 °C 120 °C
2 180 Fill time for drain-back function 15 – 360 sec 180 sec
Settings and changes in
this menu must only be
carried out by a specialist techni-
cian. Incorrect settings can
damage or adversely affect the
function of the solar power
system.
