PMA7000B Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-780-0004 Appendix B Feb. 2004

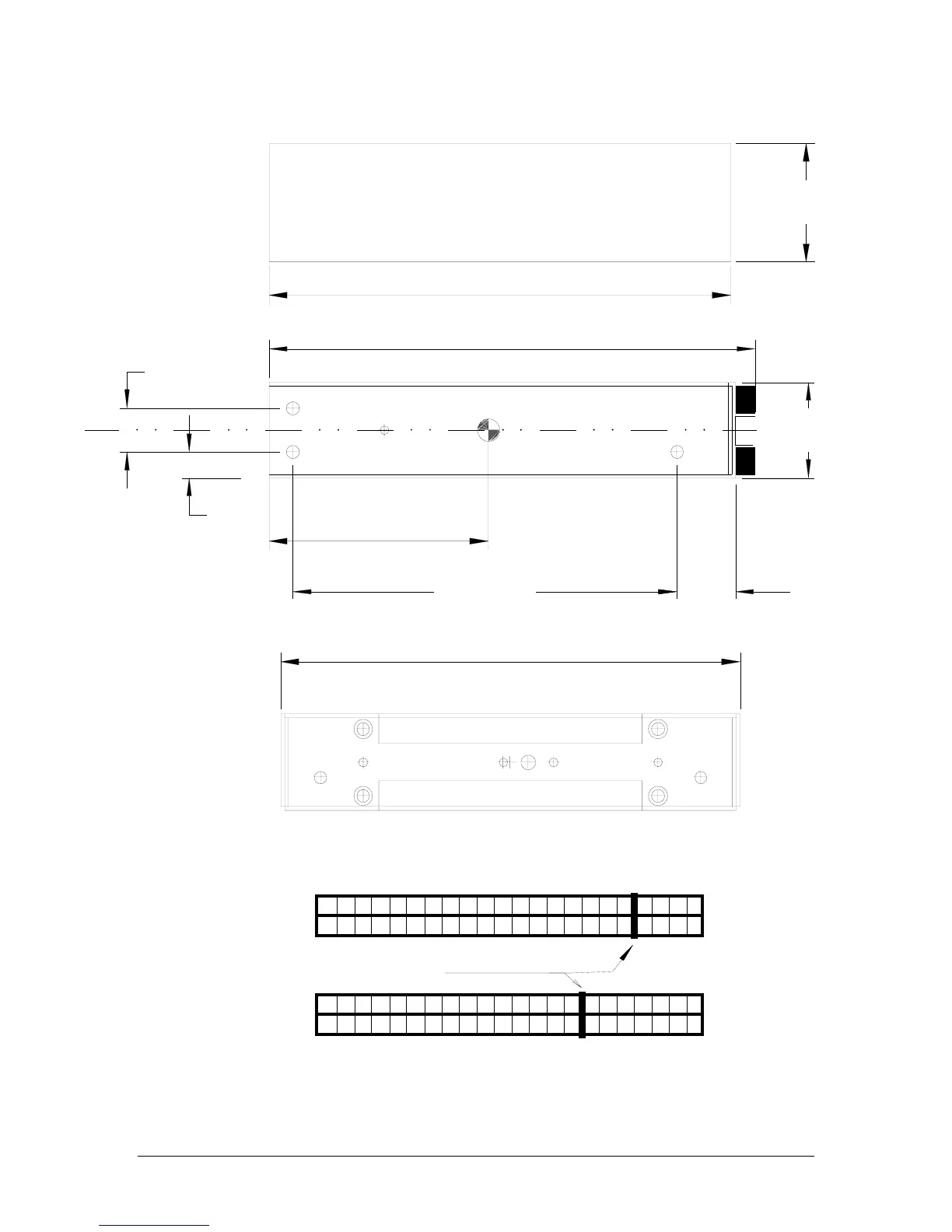

Appendix B – PMA 7000B Installation Drawing
1.31 in
(33.27 mm)
0.60 in (15.25 mm)
0.35 in
(8.9 mm)
5.25 in
(133.4 mm)
0.8 in
(20.3 mm)
6.31in (160.3 mm)
Cutout size for front mount installation
1.315 in
(33.4 mm)
6.28 in
(159.5 mm)
3.00 in (76.2 mm)
CG
Weight: 1.5 lb with tray and connectors ( .68 kg)
Side View
Rear View
6.65 in (167 mm)
J1 (bottom)
J2 (top)
ZYXWVU T SR PNM LK
J
H
FEDCB
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Connector viewed from the rear
ZYXWVU T S R PNM LK JH F EDCB
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Keying Pins
