PAGE 35313 REV.970317
I1006-2 & I1006-3-A
GEAR MOTOR

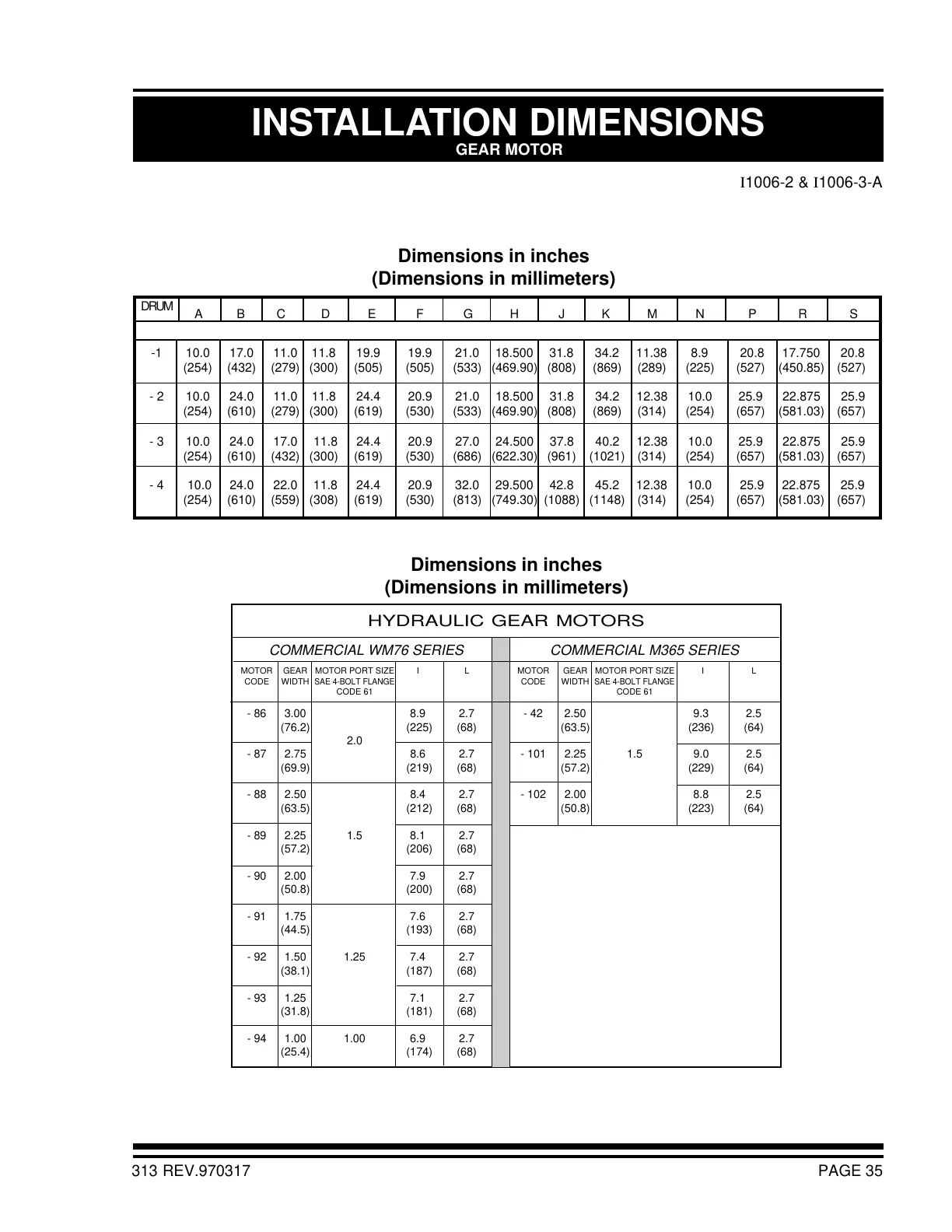

INSTALLATION DIMENSIONS
-1 10.0 17.0 11.0 11.8 19.9 19.9 21.0 18.500 31.8 34.2 11.38 8.9 20.8 17.750 20.8
(254) (432) (279) (300) (505) (505) (533) (469.90) (808) (869) (289) (225) (527) (450.85) (527)
- 2 10.0 24.0 11.0 11.8 24.4 20.9 21.0 18.500 31.8 34.2 12.38 10.0 25.9 22.875 25.9
(254) (610) (279) (300) (619) (530) (533) (469.90) (808) (869) (314) (254) (657) (581.03) (657)
- 3 10.0 24.0 17.0 11.8 24.4 20.9 27.0 24.500 37.8 40.2 12.38 10.0 25.9 22.875 25.9
(254) (610) (432) (300) (619) (530) (686) (622.30) (961) (1021) (314) (254) (657) (581.03) (657)
- 4 10.0 24.0 22.0 11.8 24.4 20.9 32.0 29.500 42.8 45.2 12.38 10.0 25.9 22.875 25.9
(254) (610) (559) (308) (619) (530) (813) (749.30) (1088) (1148) (314) (254) (657) (581.03) (657)
DRUM
E
FGDCA
HJKM
NPR
B
Dimensions in inches
(Dimensions in millimeters)
S
MOTOR GEAR MOTOR PORT SIZE I L MOTOR GEAR MOTOR PORT SIZE I L
CODE WIDTH SAE 4-BOLT FLANGE CODE WIDTH SAE 4-BOLT FLANGE
CODE 61 CODE 61
- 86 3.00 8.9 2.7 - 42 2.50 9.3 2.5
(76.2) (225) (68) (63.5) (236) (64)
2.0
- 87 2.75 8.6 2.7 - 101 2.25 1.5 9.0 2.5
(69.9) (219) (68) (57.2) (229) (64)
- 88 2.50 8.4 2.7 - 102 2.00 8.8 2.5
(63.5) (212) (68) (50.8) (223) (64)
- 89 2.25 1.5 8.1 2.7
(57.2) (206) (68)
- 90 2.00 7.9 2.7
(50.8) (200) (68)
- 91 1.75 7.6 2.7
(44.5) (193) (68)
- 92 1.50 1.25 7.4 2.7
(38.1) (187) (68)
- 93 1.25 7.1 2.7
(31.8) (181) (68)
- 94 1.00 1.00 6.9 2.7
(25.4) (174) (68)
HYDRAULIC GEAR MOTORS
Dimensions in inches
(Dimensions in millimeters)
COMMERCIAL WM76 SERIES COMMERCIAL M365 SERIES
