PAGE 36
T
BARREL)
POCKET OR ON
IN CABLE ANCHOR
(LOCATED EITHER
1/2-14 NPT
FILLER PORT
PRESSURIZE FOR
COUNTERCLOCKWISE
ROTATION
PRESSURIZE FOR
CLOCKWISE ROTATION
L
I
SAE 4-BOLT FLANGE
SEE MOTOR CHART
FOR PORT SIZE
(SEE MOTOR CHART FOR DRAIN
PORT SIZE) PLUMB UPPERMOST
DRAIN PORT DIRECT TO TANK.
DRAIN LINE MUST ENTER
RESERVOIR BELOW MINIMUM
FLUID LEVEL. FILL MOTOR
CASE BEFORE START-UP.
MOTOR CASE DRAIN
C D
H c/c
G
[32]
1.3
R c/c
S
N
E
DIAA
DIAB
[173]
6.8
M
[FREE SPOOL MODELS]
K
A MINIMUM OF 3 TO 4 WRAPS OF
WIRE ROPE MUST BE MAINTAINED
AT ALL TIMES !
FOR SAFETY:
OPTIONAL
EXTERNAL BRAKE
RELEASE PORT
1/8-27 NPT
4 MOUNTING HOLES 1-9/32 DIA [32.5]
USE 1-1/4" MOUNTING BOLTS
GRADE 5 OR BETTER
CIRCULATION
RETURN PORT
1-11 1/2 NPT
STANDARD CABLE ANCHOR IS
SUITABLE FOR 7/16" - 7/8"
DIA WIRE ROPE
BREATHER RELIEF VALVE
FILLER PORT
3/4-14 NPT
DRAIN PORT
3/4-14 NPT
CLOCKWISE
FREE SPOOL
PORT
1/4-18 NPT
[STANDARD MODELS]
J
P
[31.8]
1.25
F
CIRCULATION SUPPLY
PORT 3/8-18 NPT
HIGH-SPEED CLUTCH
PRESSURE AND DRAIN
PORTS 9/16-18 UNF
SAE 0-RING
I1007-1-E
PISTON MOTOR

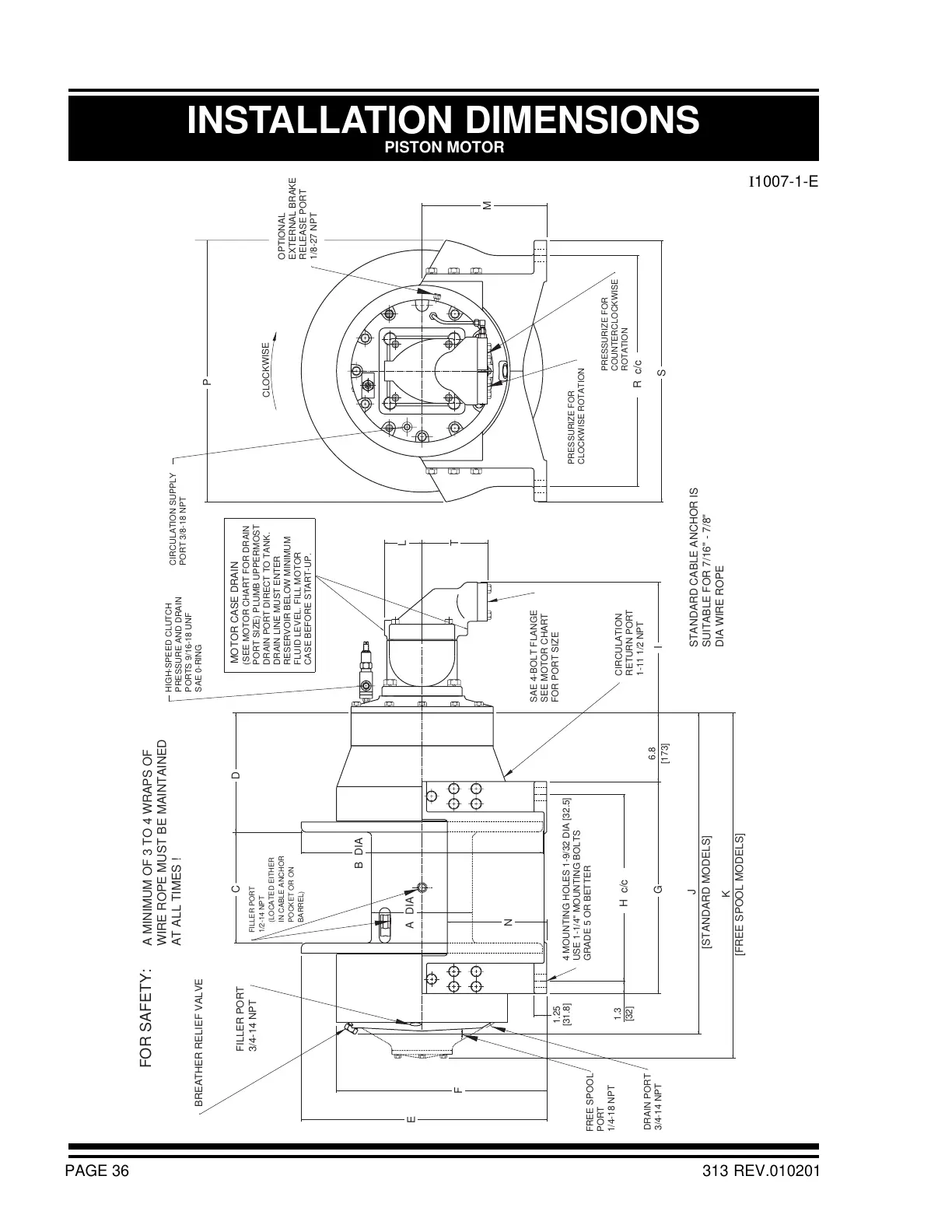

INSTALLATION DIMENSIONS
313 REV.010201
