PAGE 37
PISTON MOTOR

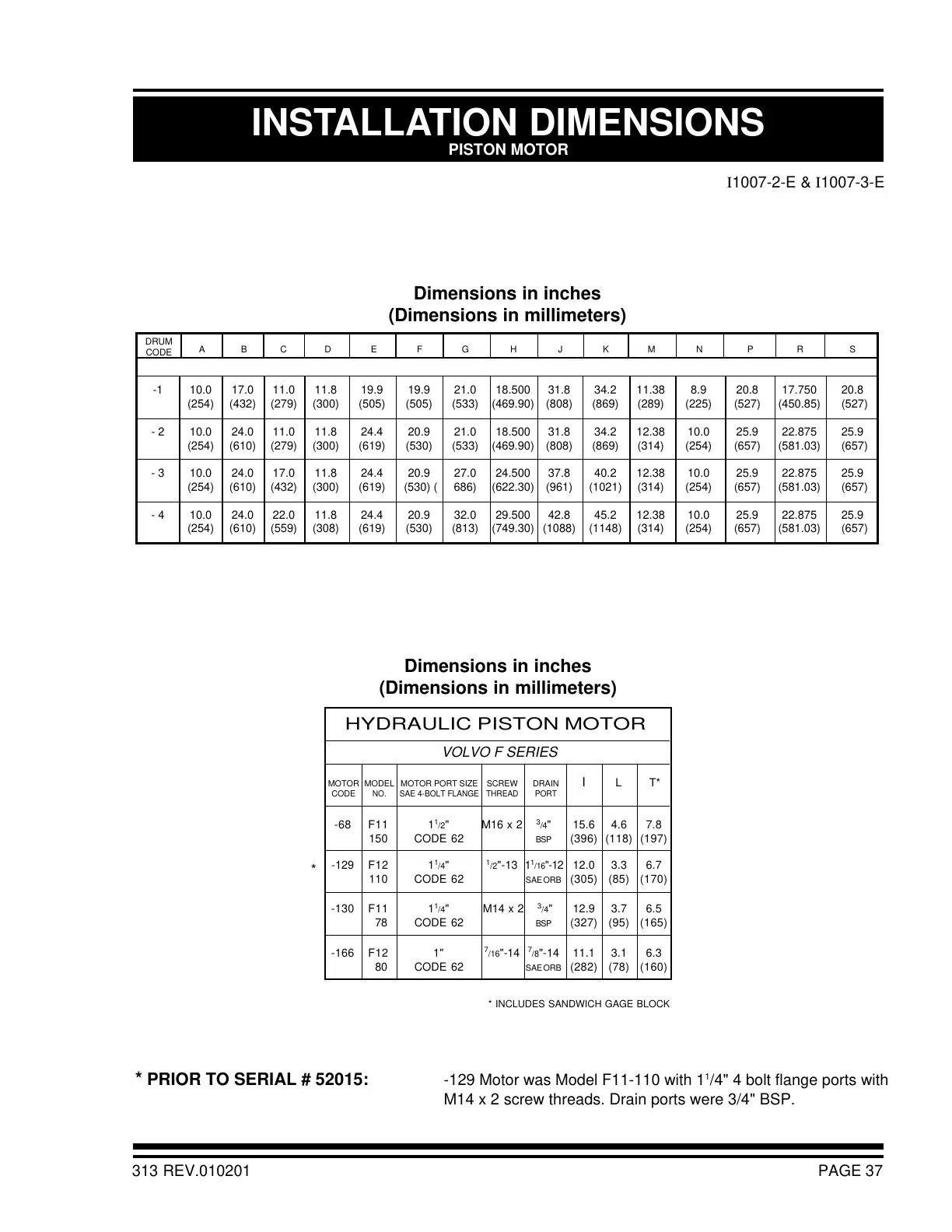

INSTALLATION DIMENSIONS
313 REV.010201
* PRIOR TO SERIAL # 52015: -129 Motor was Model F11-110 with 1
1
/4" 4 bolt flange ports with
M14 x 2 screw threads. Drain ports were 3/4" BSP.
I1007-2-E & I1007-3-E
MOTOR
CODE
I LT*
-68 F11 1
1
/2 " M16 x 2
3
/4 " 15.6 4.6 7.8
150 CODE 62
BSP (396) (118) (197)
-129 F12 1
1
/4 "
1
/2 "-13 1
1
/16 "-12 12.0 3.3 6.7
110 CODE 62
SAE ORB (305) (85) (170)
-130 F11 1
1
/4 " M14 x 2
3
/4 " 12.9 3.7 6.5
78 CODE 62
BSP (327) (95) (165)
-166 F12 1"
7
/16 "-14
7
/8 "-14 11.1 3.1 6.3
80 CODE 62
SAE ORB (282) (78) (160)
Dimensions in inches
(Dimensions in millimeters)
VOLVO F SERIES
HYDRAULIC PISTON MOTOR
*
* INCLUDES SANDWICH GAGE BLOCK
MODEL
NO.
MOTOR PORT SIZE
SAE 4-BOLT FLANGE
SCREW
THREAD
DRAIN
PORT
DRUM
CODE
E
FG H JDCA
KM
NPR
B
Dimensions in inches
(Dimensions in millimeters)
S
-1 10.0 17.0 11.0 11.8 19.9 19.9 21.0 18.500 31.8 34.2 11.38 8.9 20.8 17.750 20.8
(254) (432) (279) (300) (505) (505) (533) (469.90) (808) (869) (289) (225) (527) (450.85) (527)
- 2 10.0 24.0 11.0 11.8 24.4 20.9 21.0 18.500 31.8 34.2 12.38 10.0 25.9 22.875 25.9
(254) (610) (279) (300) (619) (530) (533) (469.90) (808) (869) (314) (254) (657) (581.03) (657)
- 3 10.0 24.0 17.0 11.8 24.4 20.9 27.0 24.500 37.8 40.2 12.38 10.0 25.9 22.875 25.9
(254) (610) (432) (300) (619) (530) ( 686) (622.30) (961) (1021) (314) (254) (657) (581.03) (657)
- 4 10.0 24.0 22.0 11.8 24.4 20.9 32.0 29.500 42.8 45.2 12.38 10.0 25.9 22.875 25.9
(254) (610) (559) (308) (619) (530) (813) (749.30) (1088) (1148) (314) (254) (657) (581.03) (657)
