• Press the F8 key continuously, the system will progressively amplify graphic.
• Press ESC to exit the amplified display, back to the cutting interface.
CUTTING EXIT
When the cutting operation does not get finished, and the cutting machine also being in the pause condition, if press [Esc], the system will query whether
quit the cutting operation. If pressing [Enter], the system will exit, and if pressing [Esc] the system will not exit, get into the automatically interface and
go on with the cutting operation at the current place.
F1 Back F2 Forward F3 GoBack
F4
SpeedDown
F5 SpeedUp
F6
PreheatDown
F7
PreheatUp
F8
JumptoPierce
FLSK F2500
Version 3.3.71.1
Speed:
00000
File:
SHAPE_43.TXT
Status:
Pause
Current Line/Hole:
00000/00000
+X:500.00 -X:0.00 +Y:500.00 -Y:0.00
00006: G01 X0 Y500.00
00007：G01 X500.00 Y0
●Ignition s
●Lowheat s
●HighPreheat s
●Pierce 1 s
●Pierce 2 s
●Pierce 3 0.1 s
●TorchUp s
●TorchDn s
●THC En s
●Exhaust s
Manual 【F】keepMov StepMov ContiMov
StepDis【G】 5.00 Flame Cu 【M】
CutSpeed 【X】1000.00 Kerf【Z】1.20
ManualSpeed【Y】3000.00 Angle 0.00
Quit of cutting?
ENTER: Quit
ESC: Continue cutting
F1 Back F2 Forward F3 GoBack
F4
SpeedDown
F5 SpeedUp
F6
PreheatDown
F7
PreheatUp
F8
JumptoPierce
FLSK F2500
Version 3.3.71.1
Speed:
00000
File:
SHAPE_43.TXT
Status:
Pause
Current Line/Hole:
00000/00000
+X:500.00 -X:0.00 +Y:500.00 -Y:0.00
00006: G01 X0 Y500.00
00007：G01 X500.00 Y0
●Ignition s
●Lowheat s
●HighPreheat s
●Pierce 1 s
●Pierce 2 s
●Pierce 3 0.1 s
●TorchUp s
●TorchDn s
●THC En s
●Exhaust s
Manual 【F】keepMov StepMov ContiMov
StepDis【G】 5.00 Flame Cu 【M】
CutSpeed 【X】1000.00 Kerf【Z】1.20
ManualSpeed【Y】3000.00 Angle 0.00
Quit of cutting?
ENTER: Quit
ESC: Continue cutting

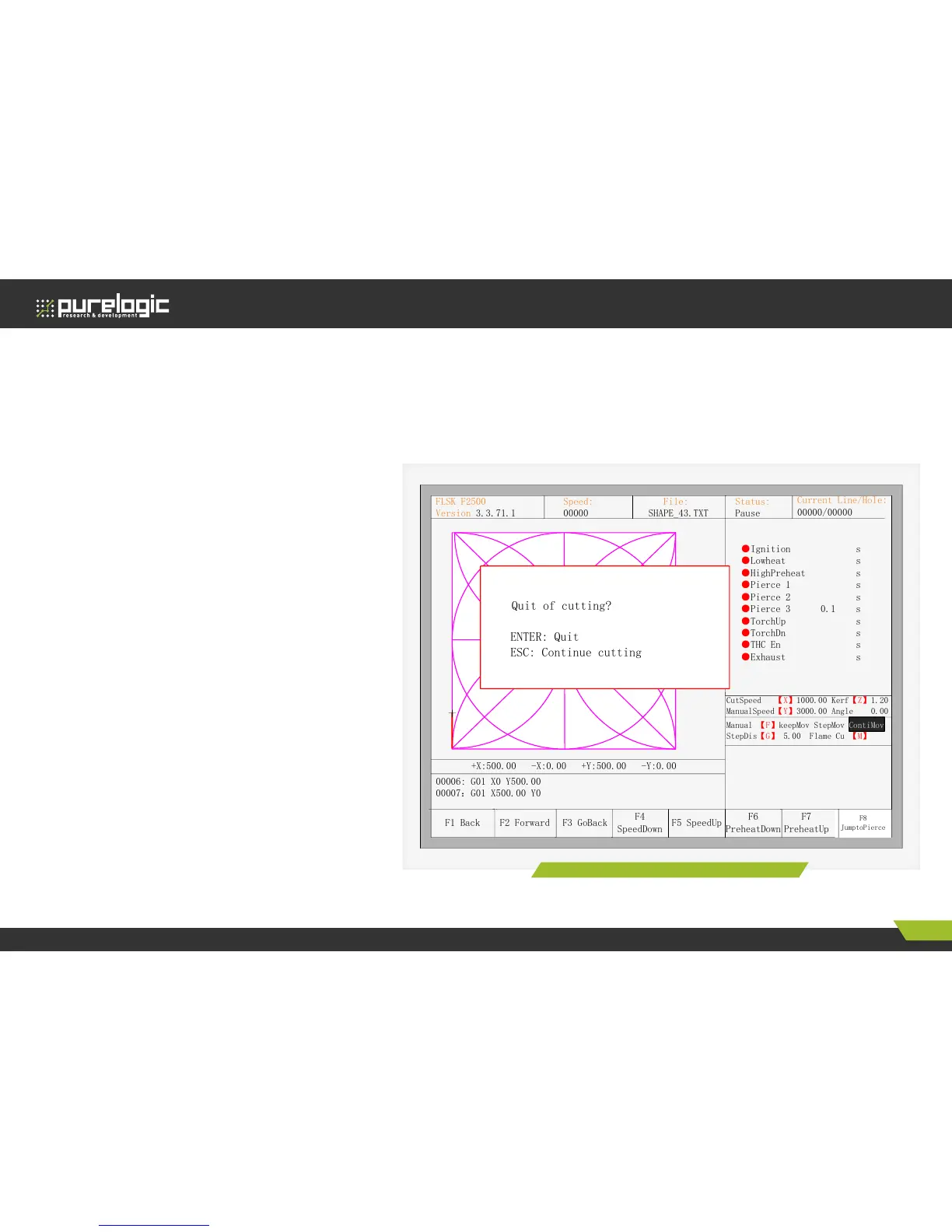

Figure 12. Quit of cutting
