Purelogic HYD-2300

HYD-2100. CNC Plasma&Flame Cutting Control System
Edition of 28.07.2015
36
www.purelogic.ru8 (800) 555 63 74

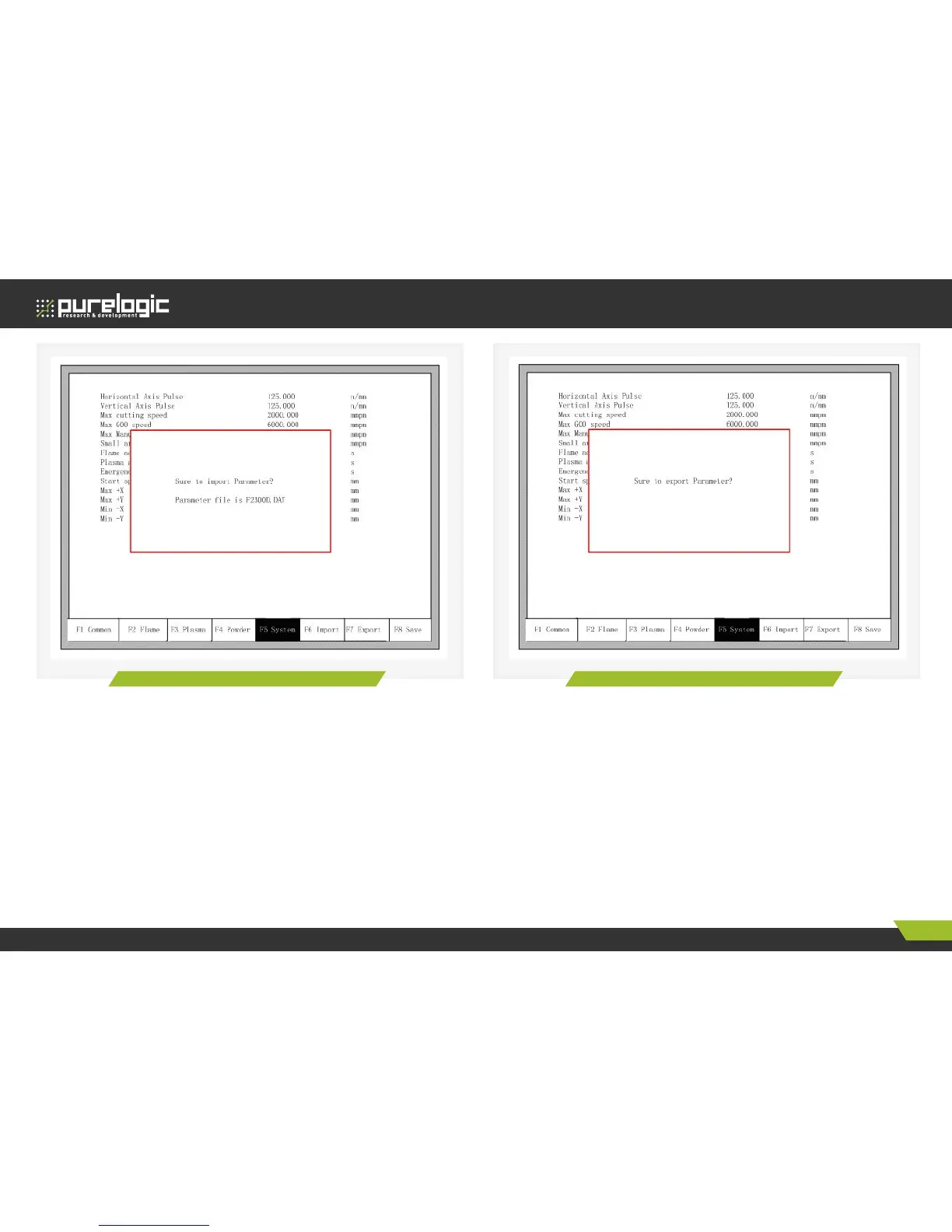

Figure 44. Parameter import Figure 45. Parameter export
PARAMETER EXPORT
After the parameter configuration is over, press F7 in the parameter configuration interface to export the parameters, you should connect the flash disk
to the USB interface before exporting.
In the interface shown in Fig. 45, after pressing Enter, the parameters will automatically be saved in the root folder of flash disk, the file name is F2500.
DAT
SAVE PARAMETERS
After parameter modification, press [F8] to save, shown in Figure 46.
