Purelogic HYD-2300 User Manual

HYD-2100. CNC Plasma&Flame Cutting Control System
Edition of 28.07.2015
14
www.purelogic.ru8 (800) 555 63 74
04
Part options
XY MIRROR
Press F1, the system will prompt:
• Press F1 to mirror along the horizontal axis
(X axis).
• Press F2 to mirror along the vertical axis
(Y axis).
• Press ESC to exit mirror operation.
ANGLE ADJUSTMENT
Press F2, the system will prompt:
• Press F1 to adjust steel plate.
• Press F2 to enter angle directly.
• Press ESC to exit angle adjusting.
F1- Steel plate adjust
F2- enter angle

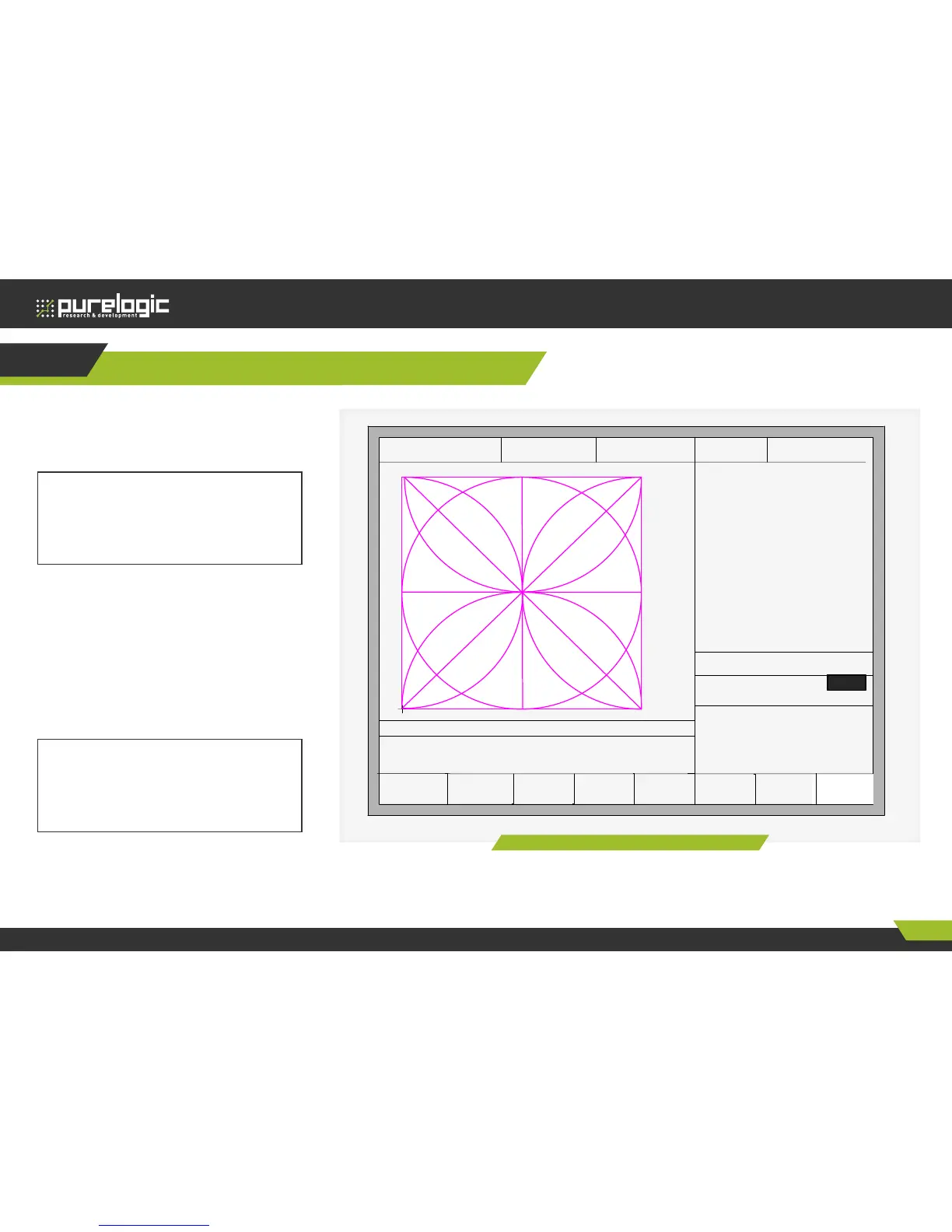

Figure 13. Part options
F1 Mirror F2 Angle F3 Array F4 Scale
F5
SelLinePierce
F6 EditFile F7 Revert
F8 OK
FLSK F2500
Version 3.3.71.1
Speed:
00000
File:
SHAPE_43.TXT
Status:
Pause
Current Line/Hole:
00000/00000
+X:500.00 -X:0.00 +Y:500.00 -Y:0.00
Operate Mode:
PartOption
●Ignition s
●Lowheat s
●HighPreheat s
●Pierce 1 s
●Pierce 2 s
●Pierce 3 0.1 s
●TorchUp s
●TorchDn s
●THC En s
●Exhaust s
Manual 【F】keepMov StepMov ContiMov
StepDis【G】 5.00 Flame Cu 【M】
CutSpeed 【X】1000.00 Kerf【Z】1.20
ManualSpeed【Y】3000.00 Angle 0.00
