DIAGNOSIS INTERFACE INDEX
Input Diagnosis
The system will read current IO information when press [F1] (Refresh) to refresh the interface, and display all IO’s
status. “On” means the input is effective, and “Off” means the input is ineffective.
Output Diagnosis
In diagnosis interface ,press [F2] to enter output diagnosis interface, shown as Fig. 48.
Press [↑], [↓], [←], [→], you can move the cursor to the corresponding output port, press [F3] to open the
corresponding output port, press [F4] to close the corresponding output.
– Represents the valid output.
– Represents the invalid output.
F5
System Diagnosis
F1
Input Diagnosis
F2 Output
Diagnosis
F6
System Self-test
F8
System Definition
F1
Parameters
Reset
Parameters
F2
Backup
F3
Definition
F4
Encryption
F5
Decrption
F6
Language
F5
Keyboard
Diagnosis
F7
Date time
F1 Input
F2 Output F5 KeyBrd F6 SelfCheck
F7
DataTime
F8
SystemDef
Output
Ignition
Low preheat
High preheat
Low Oxygen
Medium Oxygen
High Oxygen
Torch up
Torch down
exhaust
THC enable
Position detect
Arc starting
HoldTorch
Dust spray
Raise dust
Dust preheat
F3 OpenOutF4 CloseOut
F1 Input
F2 Output F5 KeyBrd F6 SelfCheck
F7
DataTime
F8
SystemDef
Output
Ignition
Low preheat
High preheat
Low Oxygen
Medium Oxygen
High Oxygen
Torch up
Torch down
exhaust
THC enable
Position detect
Arc starting
HoldTorch
Dust spray
Raise dust
Dust preheat
F3 OpenOutF4 CloseOut

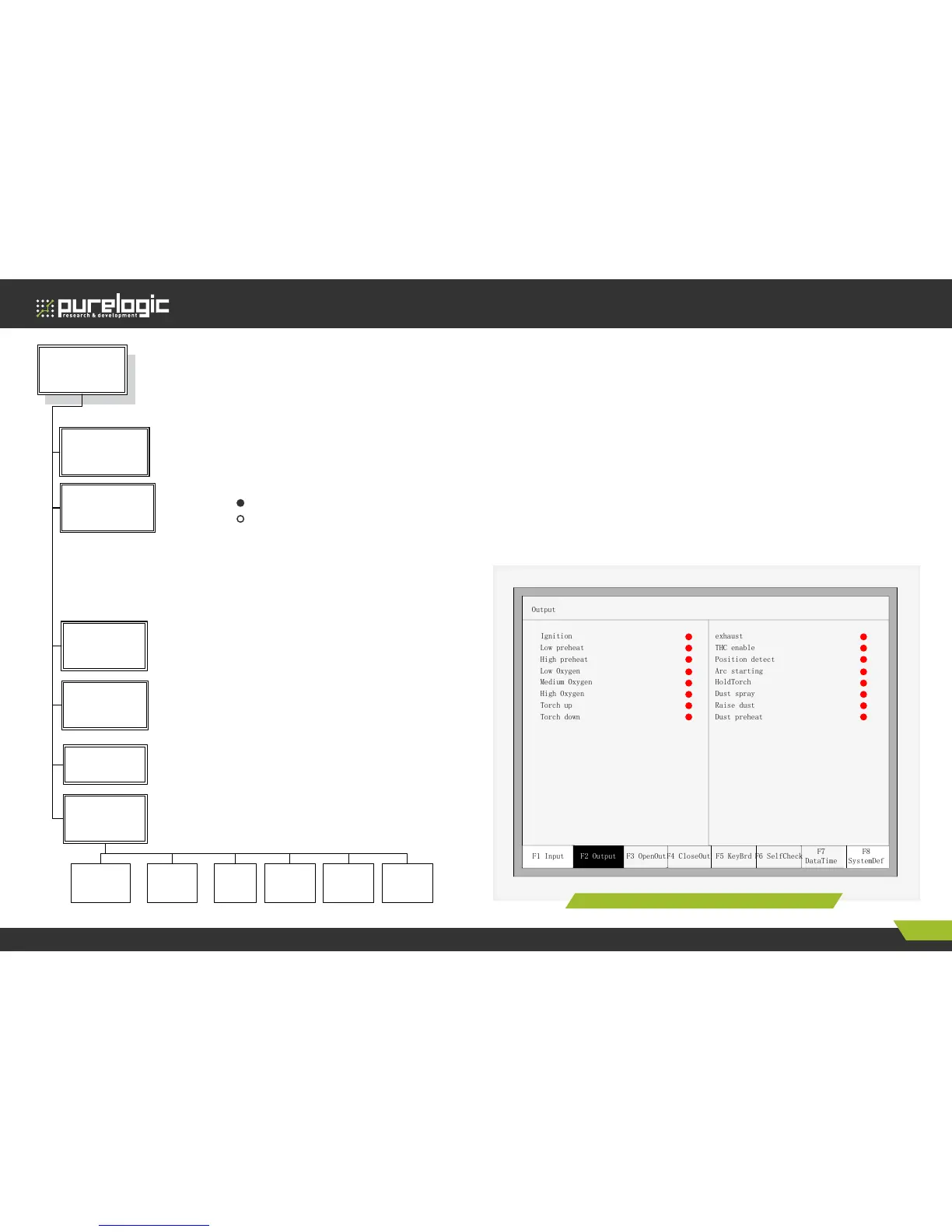

Figure 48. Output diagnosis
