Page 6 iGen
®
Man u al

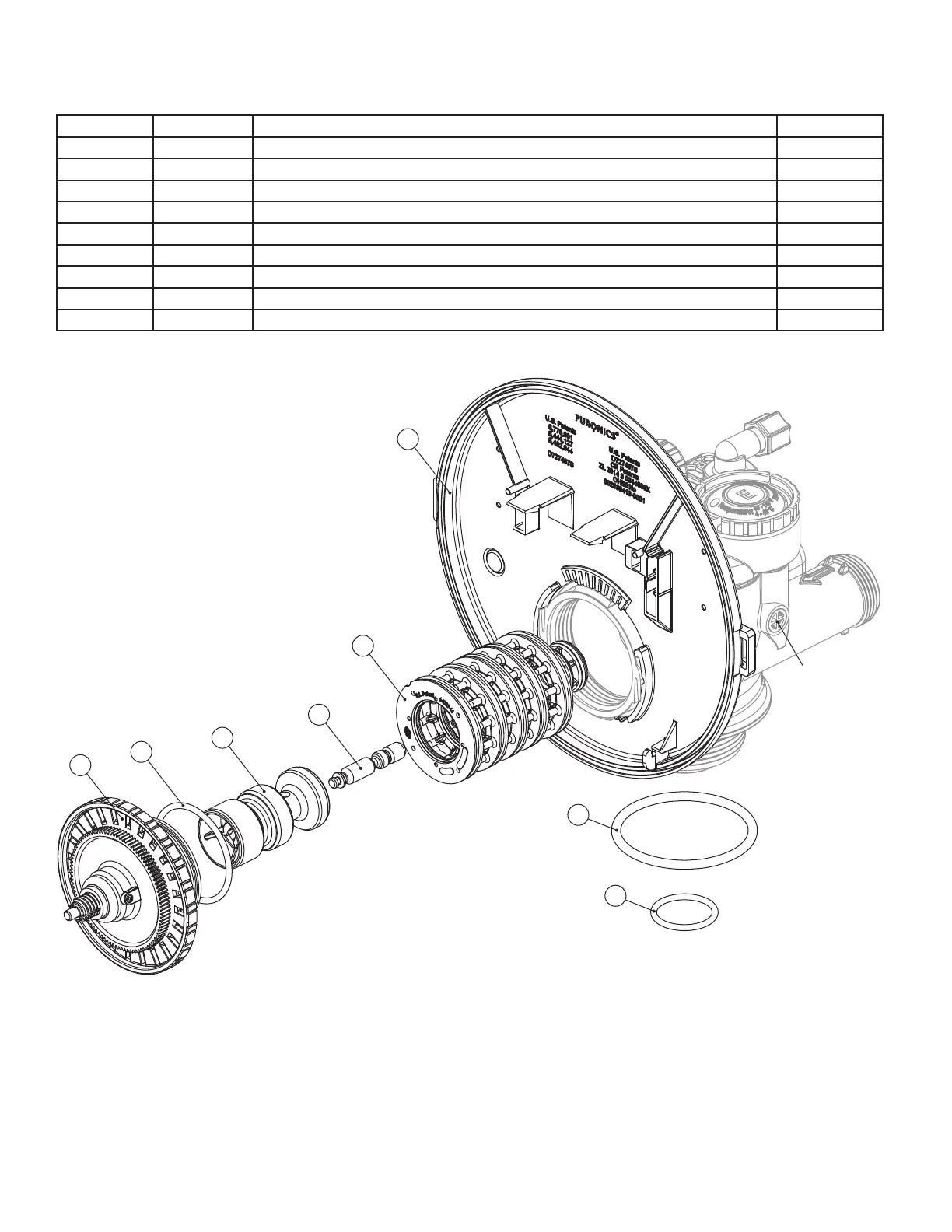

WS1.25 iGen® Drive Cap Assembly, Down ow Piston, Regenerant Piston and Spacer Stack Assembly
Drawing No. Order No. Description Quantity
1 V3430-01 WS1.5 SPACER STACK ASSEMBLY 1
2 V3004 DRIVE CAP ASY 1
3 V4166 WS1 iGen® BACK PLATE 1
4 V3407 WS125/15 PISTON DOWNFLOW ASY (AMBER) 1
5 V3174 WS1 REGENERANT PISTON 1
6 V3135 O-RING 228 1
7 V3180 O-RING 337 1
8 V3358 O-RING 219 (DISTRIBUTOR TUBE OPENING 1.32") 1
Not Shown V3020 WS1.25 BODY ASY DOWNFLOW (DISTRIBUTOR TUBE OPENING 1.32") 1
Note: The regenerant piston is not used in backwash only applications.
2
6
4
5
1
3
7
8
Grey plug
