USR-DR13X User Manual

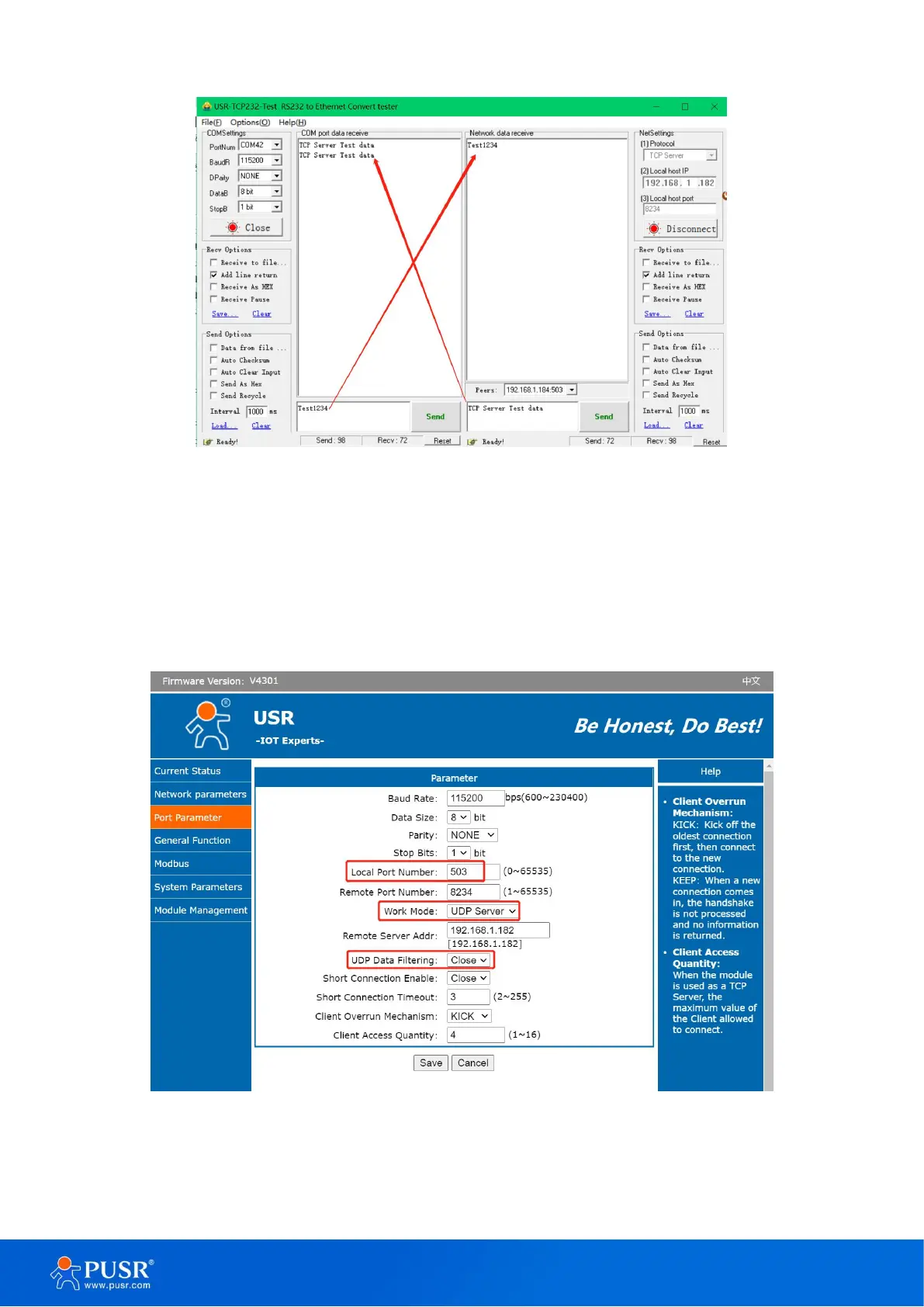

Figure 28. Test result of TCP client
4.3. UDP server
UDP is a faster and more efficient transport protocol than TCP, but it is a connection-less transport protocol.
When the USR-DR134 works as UDP server, it doesn’t verify the source address. After receiving a UDP data packet,
the destination IP and port are changed to the one which send the UDP data to USR-TCP232-306.
Figure 29. UDP server mode
For test software,
1.The local host port is the same with the remote port of the USR-TCP232-306,
To Next Page
