USR-DR13X User Manual

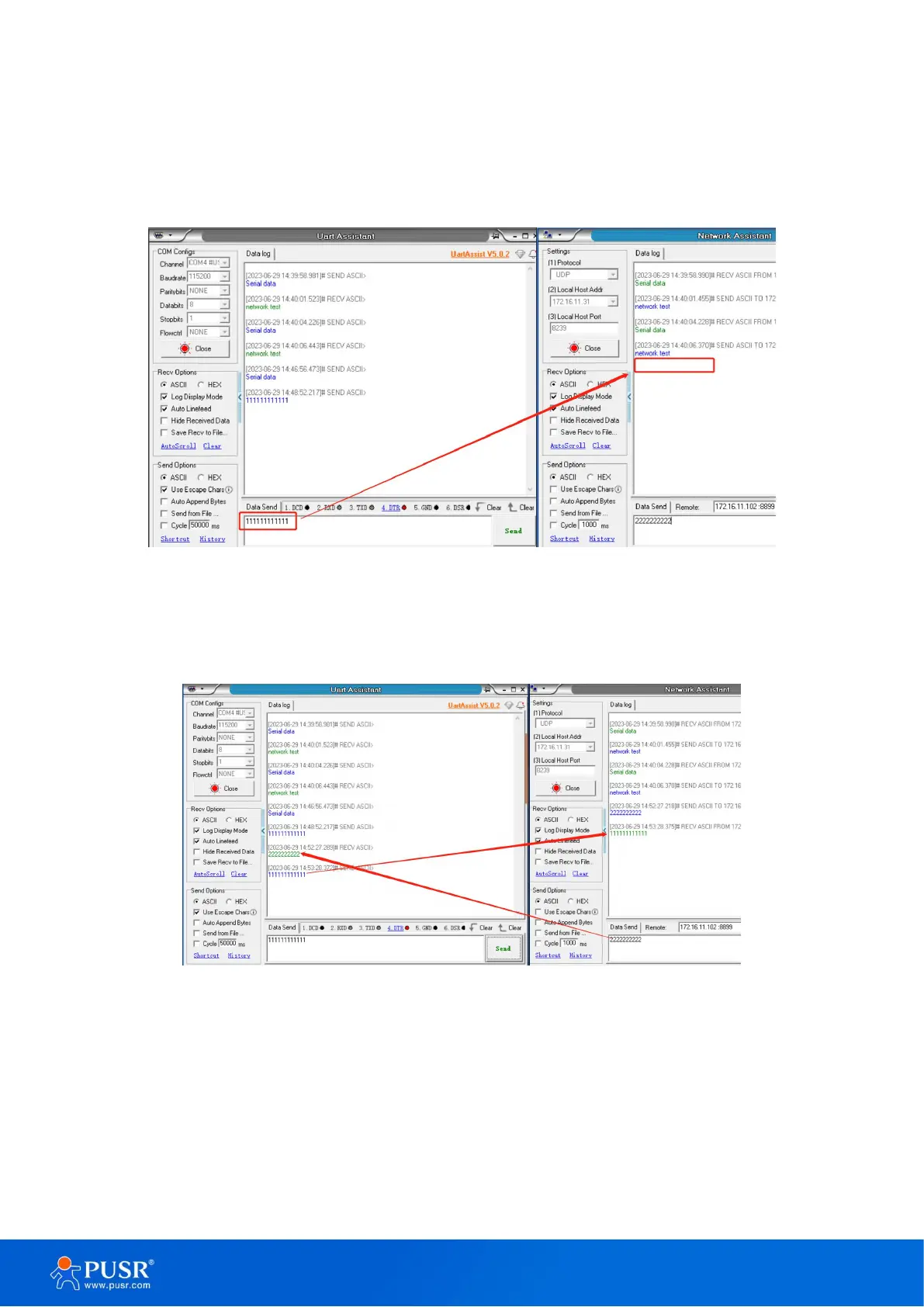

Figure 32. Different UDP port
If we send the first data packet from serial to network, the data isn’t transmitted successfully, the test result
can be seen in the following picture.
Figure 33. Test result with no data
If we send the first data packet from network to serial successfully, then we can also send the data from
serial to network successfully.
Figure 34. Test result with data transmission
4.4. UDP client
4.4.1. Transparent data transmission
In UDP client mode, DR13X will only communicate with target IP/Port. If data is not from target IP/Port, it
won’t be received by DR13X.
