PV Powered PVP4800 - Figure 4-8 Wiring Multiple Arrays with Inverter;Disconnect Units

28
GND L1 L2/N
Pos Gnd Neg
Pos Gnd Neg
GND L1 L2/N
Pos Gnd Neg
GND L1 L2/N
Pos Gnd Neg
Inverter #1 Inverter #2 Inverter #3
From Utility
L1, L2 and EGC
From PV System
Pos, Neg and GEC

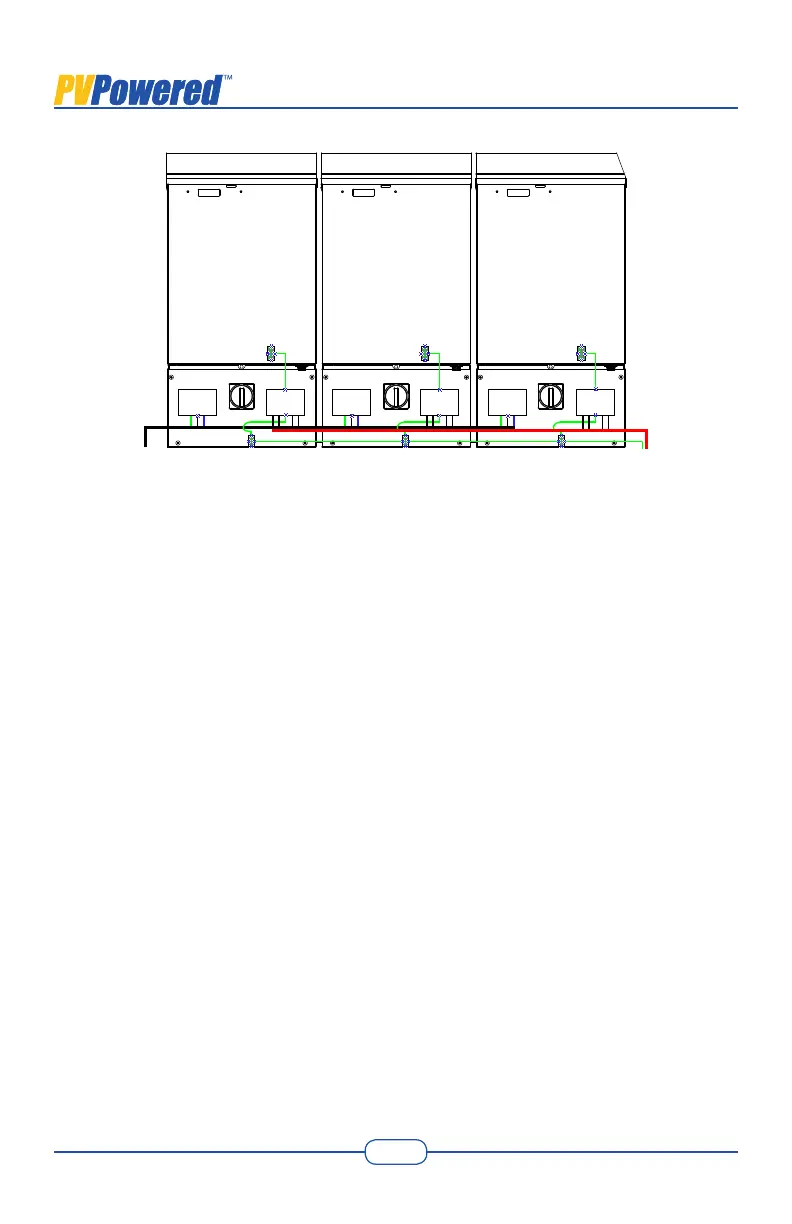

Figure 4-8 Wiring Multiple Arrays with Inverter/Disconnect Units
To start the inverter/disconnect unit, see the next chapter Operation .
