PV Powered PVP4800 - Schematics for Inverter with Integrated AC;DC Disconnect; PVP2800, PVP3000 and PVP3500 Inverter with Integrated AC;DC Disconnect Cabinet

PV Grid-tied Residential Inverter and Integrated AC/DC Disconnect
Installation and Operation Manual
55
C.2 Schematics for Inverter with Integrated AC/DC Disconnect

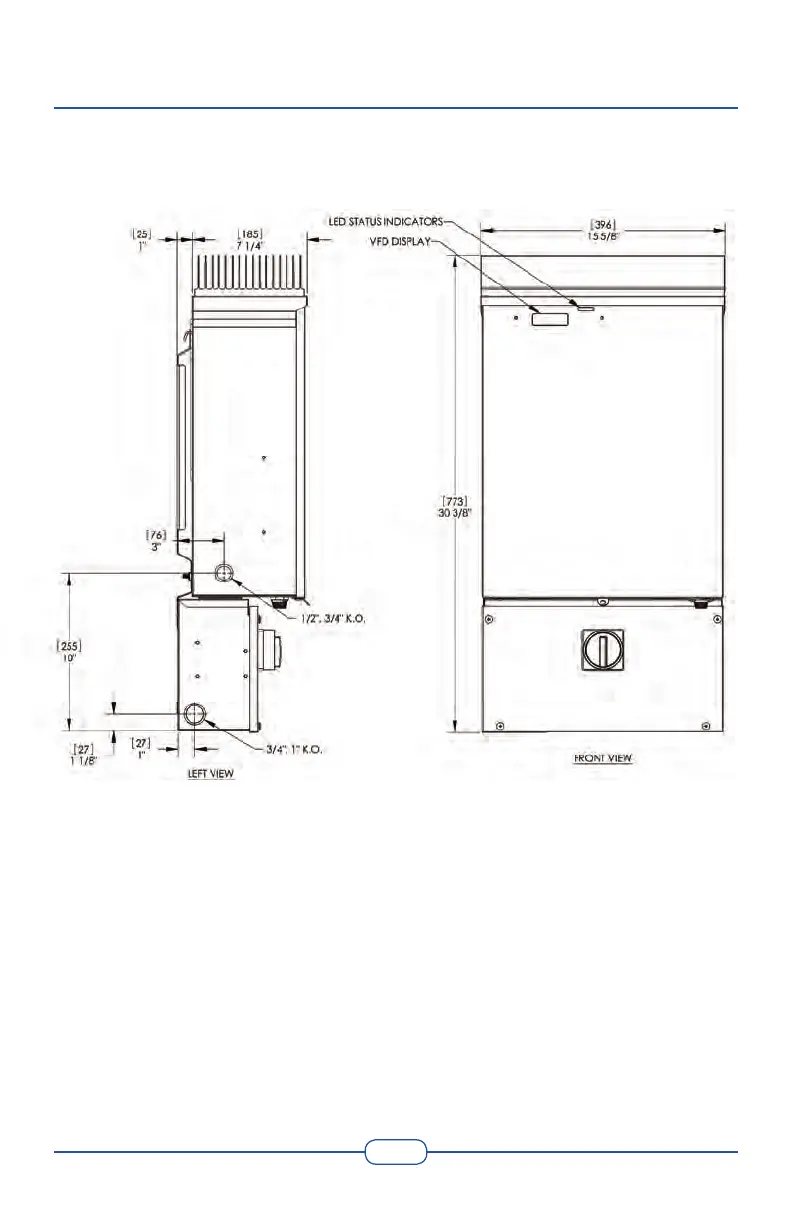

Figure C-5 Side and Front Views of the PVP1100, PVP2000, PVP2500, PVP2800,
PVP3000 and PVP3500 Inverter with Integrated AC/DC Disconnect Cabinet
