www.PyleUSA.com
13

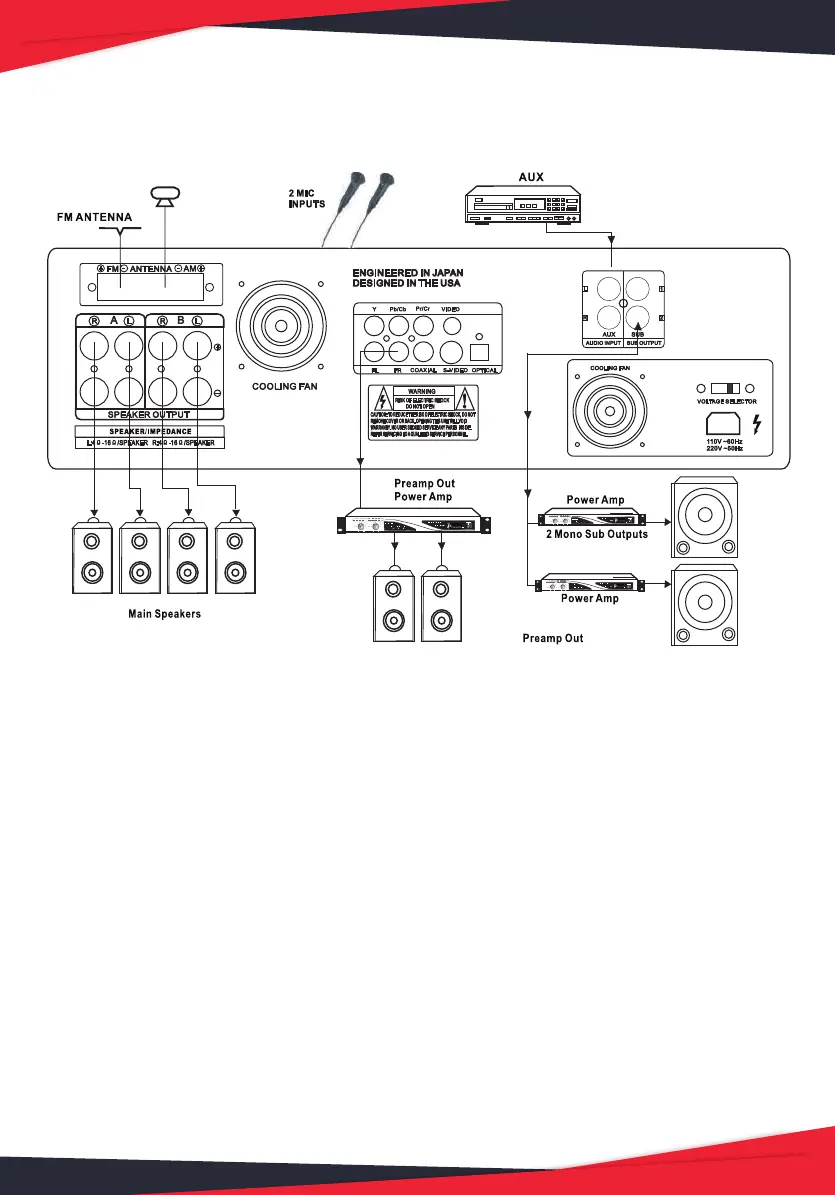

REAR PANEL CONNECTION
Connecting to Amplifier
SAFETY INSTRUCTIONS
1. Make sure that all connections are properly connected and the main volume is
set to minimum level before turning ON the unit.
2. When more then one pair of speakers are used, (specially the main speaker
output) make sure that the speakers used have the same wattage and impedance,
otherwise the unit maybe damaged under high power or long term operation.
3. To avoid humming sounds and unwanted noise, make sure that all the wires are
properly inserted.
4. For speaker cords, strip o the vinyl coating and twist the wire tip. Push down the
pink jack or loosen the screw terminal, before inserting the wire tip, then fasten it
and tighten the screw. Be careful not to let the wires stick out of the terminal
otherwise this may cause a short circuit when wires of dierent terminal contact
each other.
5. After the unit is turned ON, adjust the main volume to the desired level same
with the bass and treble volume, etc.
