OSD Settings:

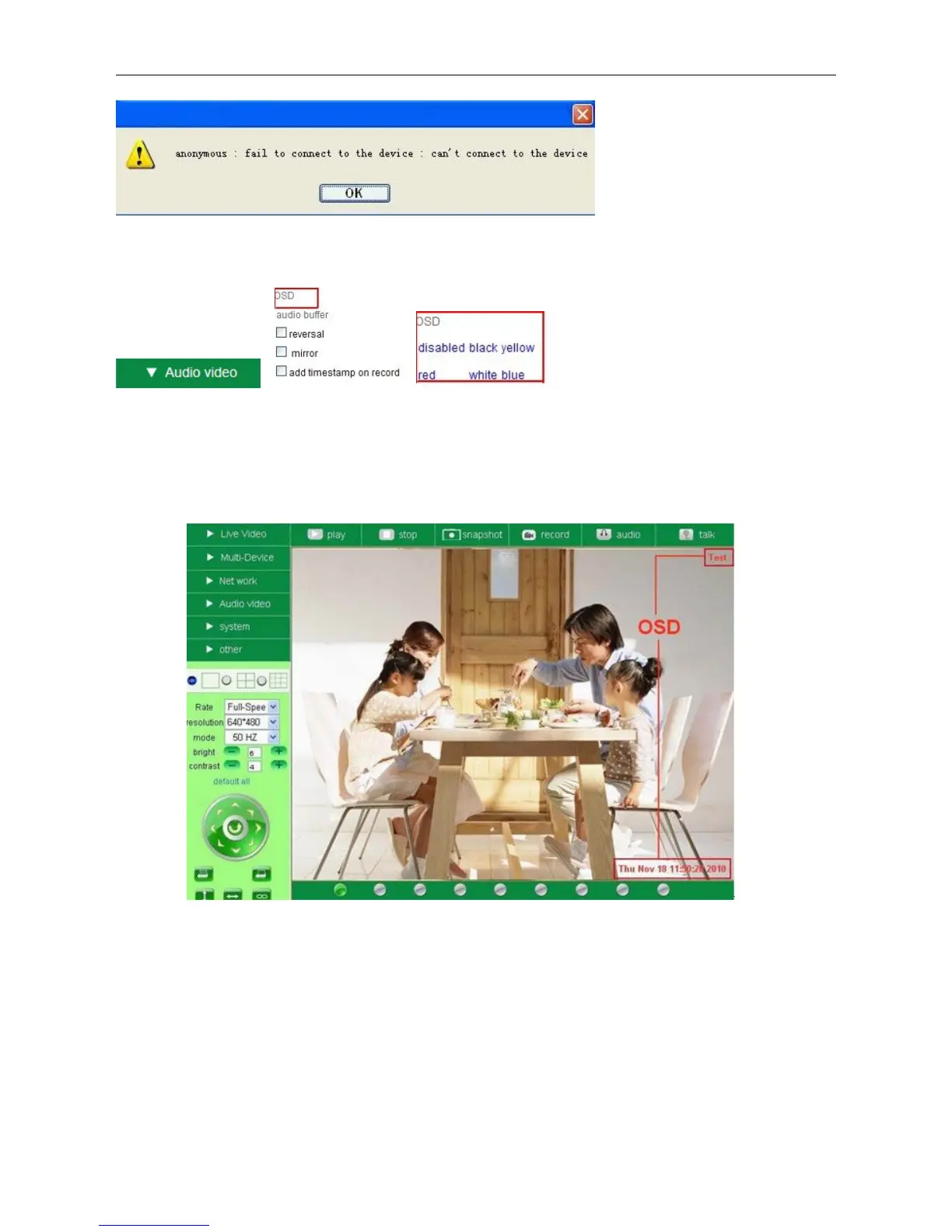

Figure 3.6
OSD: Means “On-Screen Display”, click “Audio video” > “OSD”, set display date and time on the video.
Disabled: Clicking this one means clear the OSD.
Color: Can set the OSD text color as black, yellow, red, white, blue etc.
Add time stamp on record: if you click this, there will be time OSD on record video files.
Figure 3.7
Rate and Resolution:
Rate: Set video frame here, from “full-speed to 1fp/5s”. (Figure 3.8).
Resolution: Set the resolution to be 160*120/ VGA (640*480)/ QVGA (320*240). (Figure 3.9).
NOTE: When doing recording, Rate and Resolution parameter settings is very helpful for getting
smaller sized record files, lower the parameter to get a smaller file.
