Electric Connection

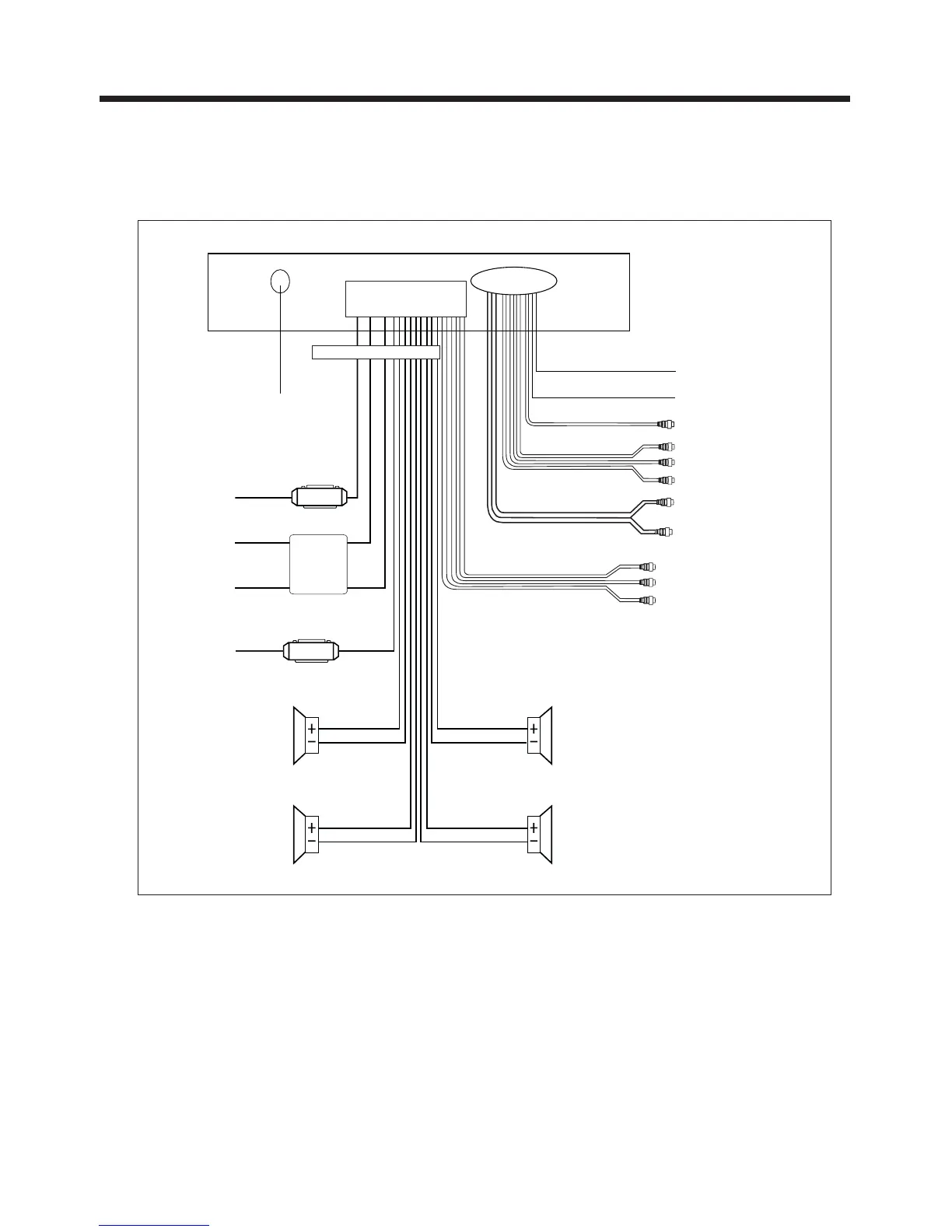

WIRING CONNECTION
-9-
Note:
the earth connection cable (parking brake B-) must be connected in order for DVD
pictures to be played back to the monitor. If the cable has not been correctly
connected, the message “PARKING BRAKE” appears on the monitor.
FRONT RCA WHITE L
FRONT RCA RED R
VIDEO OUT 1 YELLOW
FRONT RCA OUTPUT
CABLE
GREY
GREY/BLACK
FRONT
Rch SPK.
VIOLET
VIOLET/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
REAR
Lch SPK.
AUTO
ANTENNA
BLUE
FUSE
GROUND(B-)
MEMORY
BACK-UP(B+)
IGNITION
SWITCH(B+)
RADIO ANTENNA JACK
RED
YELLOW
BLACK
MAIN UNIT
REAR
Rch SPK.
FRONT
Lch SPK.
CHOKE
BOX
GREY SUBWOOFER
VIDEO OUT 2 YELLOW
COAXIAL OUT BROWN
WHITE
(B+)12V
REAR CAMERA SWITCH
BROWN
YELLOW
RCA CABLE
REAR CAMERA INPUT
(B-)PARKING BRAKE
RCH RED
LCH WHITE
REAR RCA OUTPUT
CABLE
FUSE
ISO CONNECTOR
