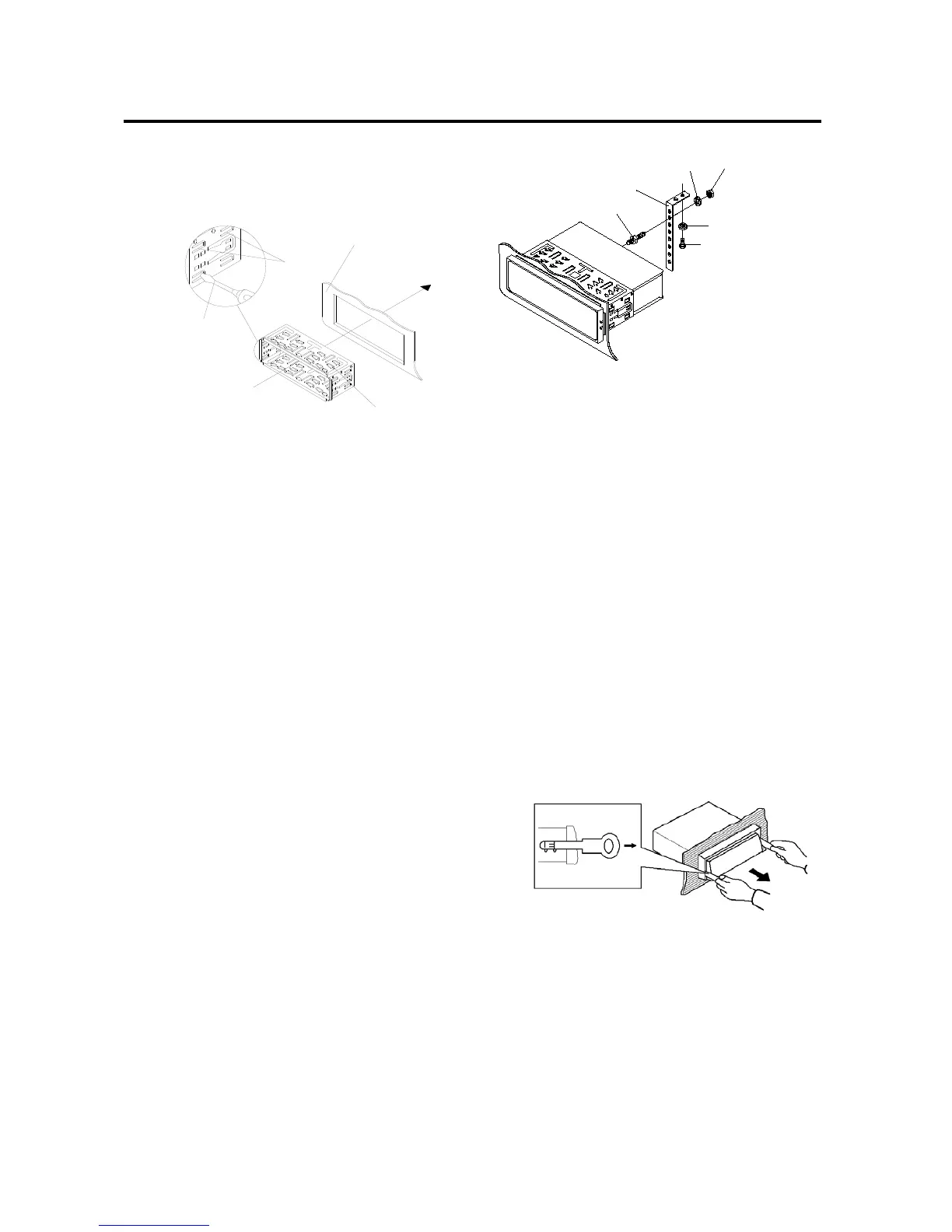

Tabs
Screwdriver
Sleeve
Dashboard
INSTALLATION
tabs behind the dashboard to secure the
sleeve in place.
6. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.
7. Slide the unit into the sleeve until it
locks into place.
8. To further secure the unit, use the
supplied metal strap to secure the back
of the unit in place. Use the supplied
hardware (Hex Nut (M5mm) and Spring
Washer) to attach one end of the strap
to the mounting bolt on the back of the
unit. If necessary, bend the metal strap
to fit your vehicle’s mounting area. Then
use the supplied hardware (Tapping
Screw (5x25mm) and Plain Washer) to
attach the other end of metal strap to a
solid metal part of the vehicle under the
dashboard. This strap also helps ensure
proper electrical grounding of the unit.
Note to install the short threading
terminal of the mounting bolt to the back
of the unit and the other long threading
terminal to the dashboard.
9. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring.
Removing the unit
1. Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2. Remove the metal strap attached the
back of the unit (if attached).
3. Lift the top of the outer trim ring then pull
it out to remove it.
4. Insert both of the supplied keys into the
slots at the middle left and right sides of
the unit, then pull the unit out of the
dashboard.
DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (To yo ta ), N
(Nissan) located on both sides of the unit to
fasten the unit to the factory radio mounting
brackets supplied with your vehicle.
To Next Page
