www.PyleUSA.com12

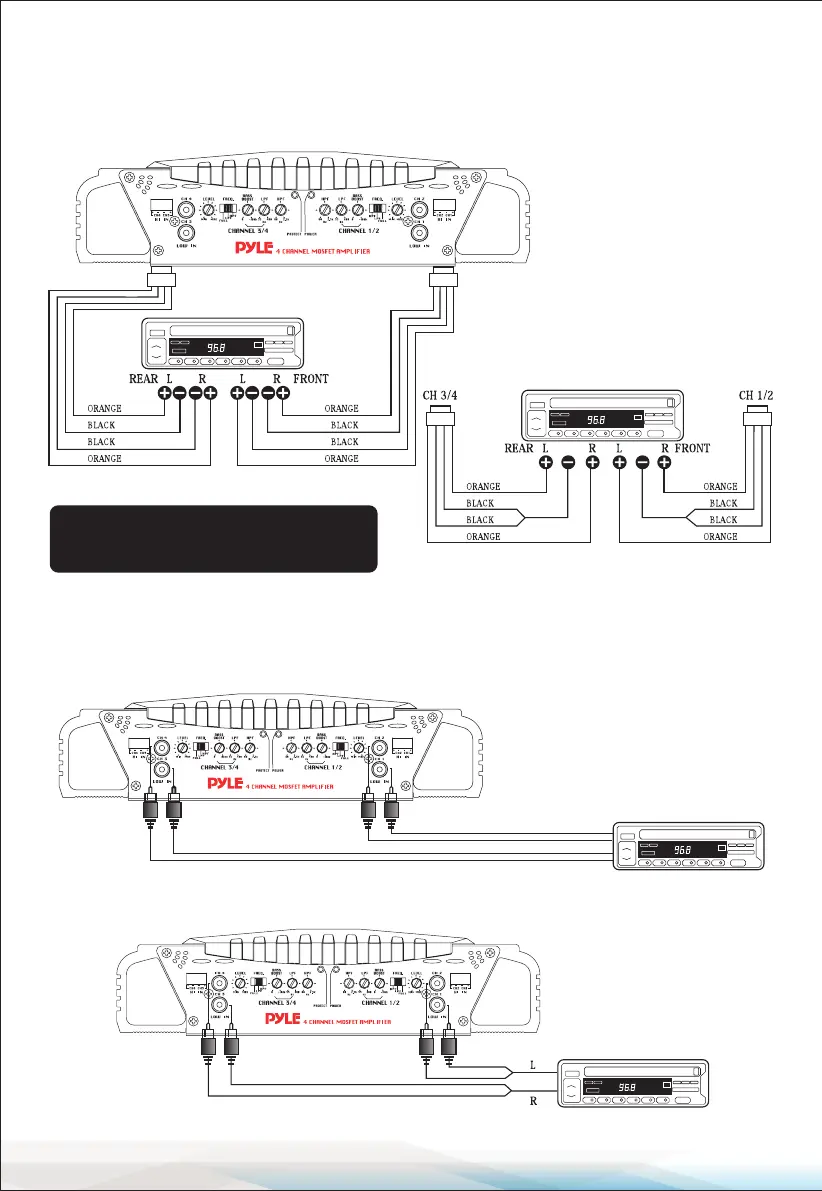

High Level Input Connections
PLMRA420
4 CH Floating Ground Connections
Mono Input Connections
PLMRA420
4 CH Mono Input Connections Using Low-Level Inputs
2 CH Input Connections Using Low-Level Inputs
PLEASE NOTE:
If using high-level inputs, do not use the
low-level RCA inputs at the same time.
from speaker terminals
from speaker terminals
4 CH Harness Wiring for
Common Ground Connections
Head Unit
Right Front
Audio Outputs
Right Rear Audio Outputs
Left Front Audio Outputs
Left Rear Audio Outputs
Y Adaptors
