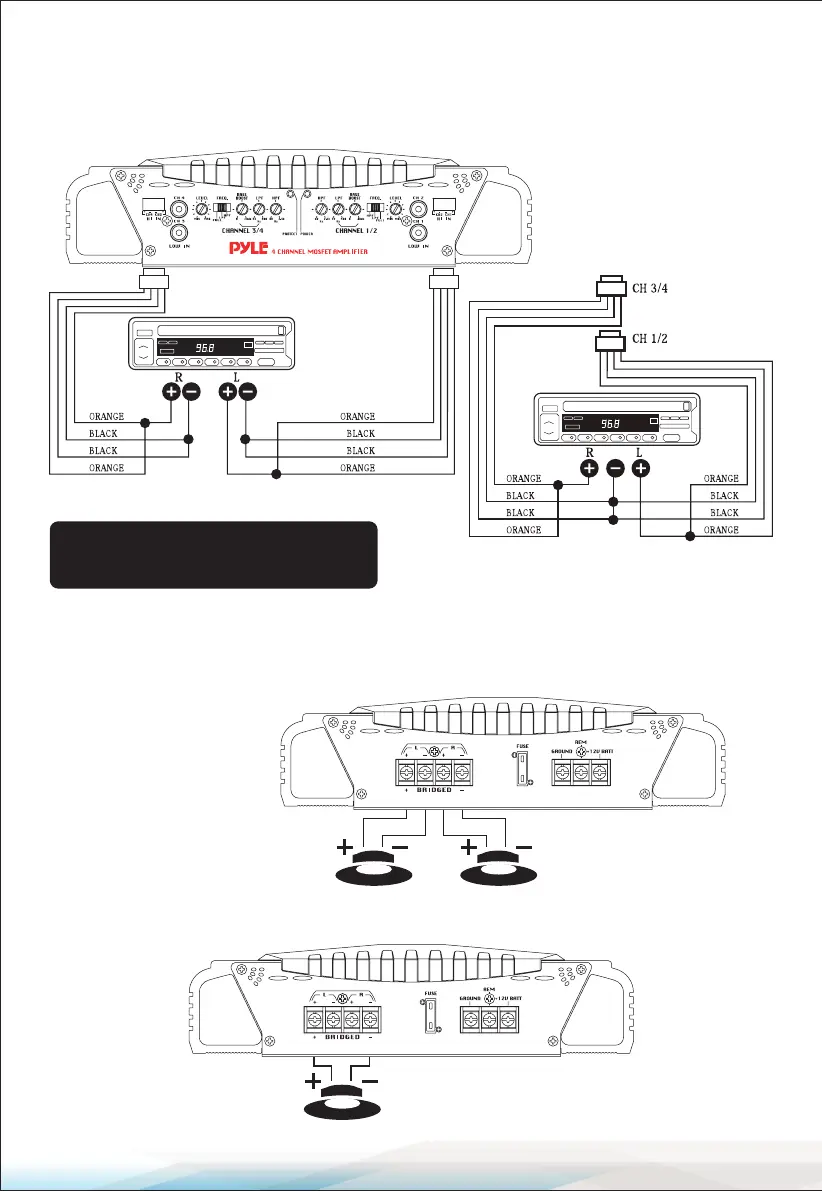

High Level Mono Input Connections
PLMRA420
4 CH Floating Ground Connections
Speaker Connections
PLMRA220
Stereo Output Mode
Bridged Mono Output Mode
PLEASE NOTE:
If using high-level inputs, do not use the
low-level RCA inputs at the same time.
from speaker terminals
4 CH Harness Wiring for
Common Ground Connections
from speaker terminals
Minimum Speaker
Impedance: 4 Ohms
Left Speaker Right Speaker
Speaker
