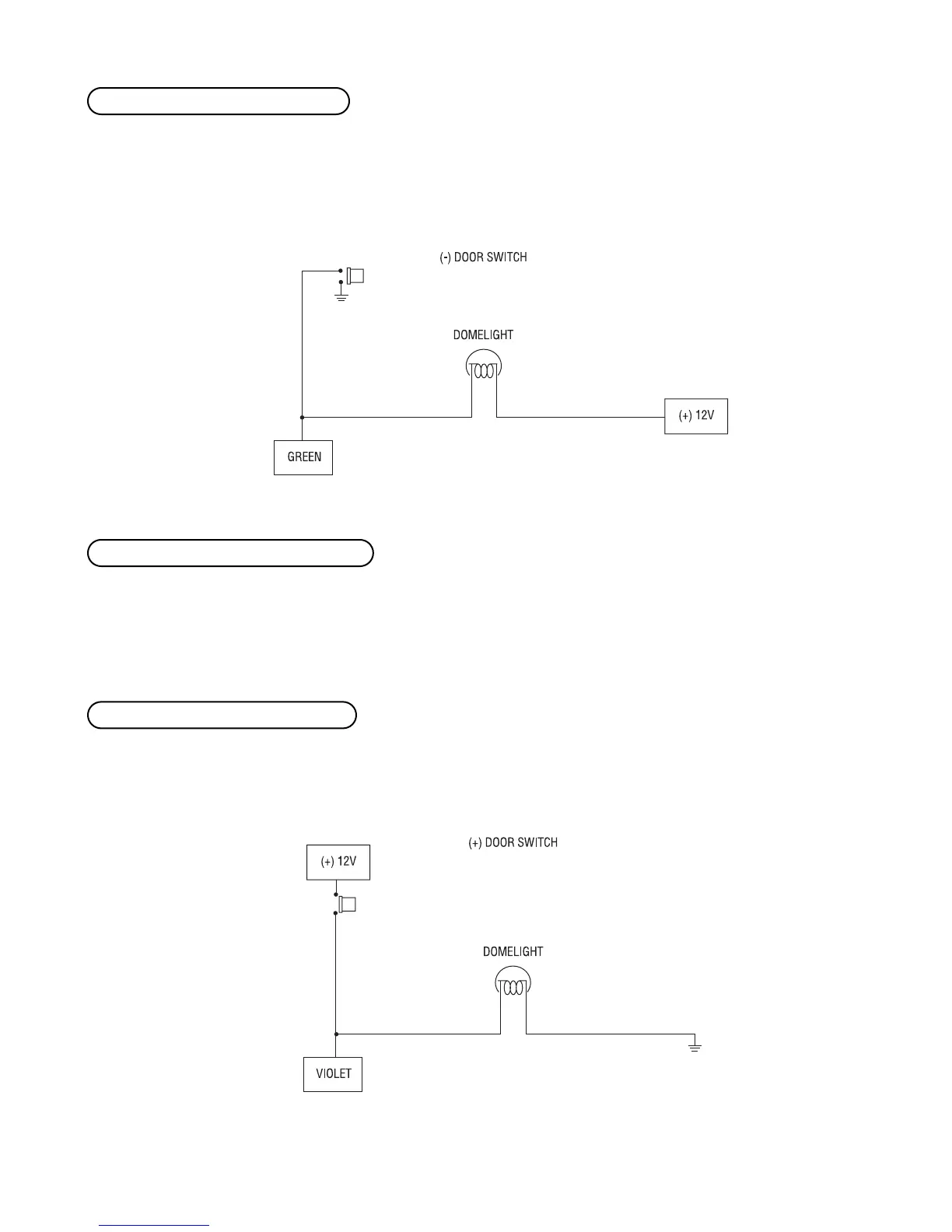

Most vehicles use negative door trigger circuits. Connect the green wire to a wire which shows ground when any
door is opened. In vehicles with factory delays on the domelight circuit, there is usually a wire that is unaffected
by the delay circuitry.
This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk pins and will
report on zone one. It can also be used with 506T Glass Breakage Sensor, as well as other DEI® single stage
sensors.
This type of dome circuit is used in many Ford products. Connect the violet wire to a wire that shows (+)12V
when any door is opened, and ground when the door is closed.
H1/7 VIOLET (+) door trigger input
H1/6(-) instant trigger input, zone 1
H1/5 GREEN (-) door trigger input
