Python 1000 ESP User Manual

© 1999 Directed Electronics, Inc. Vista, CA 15

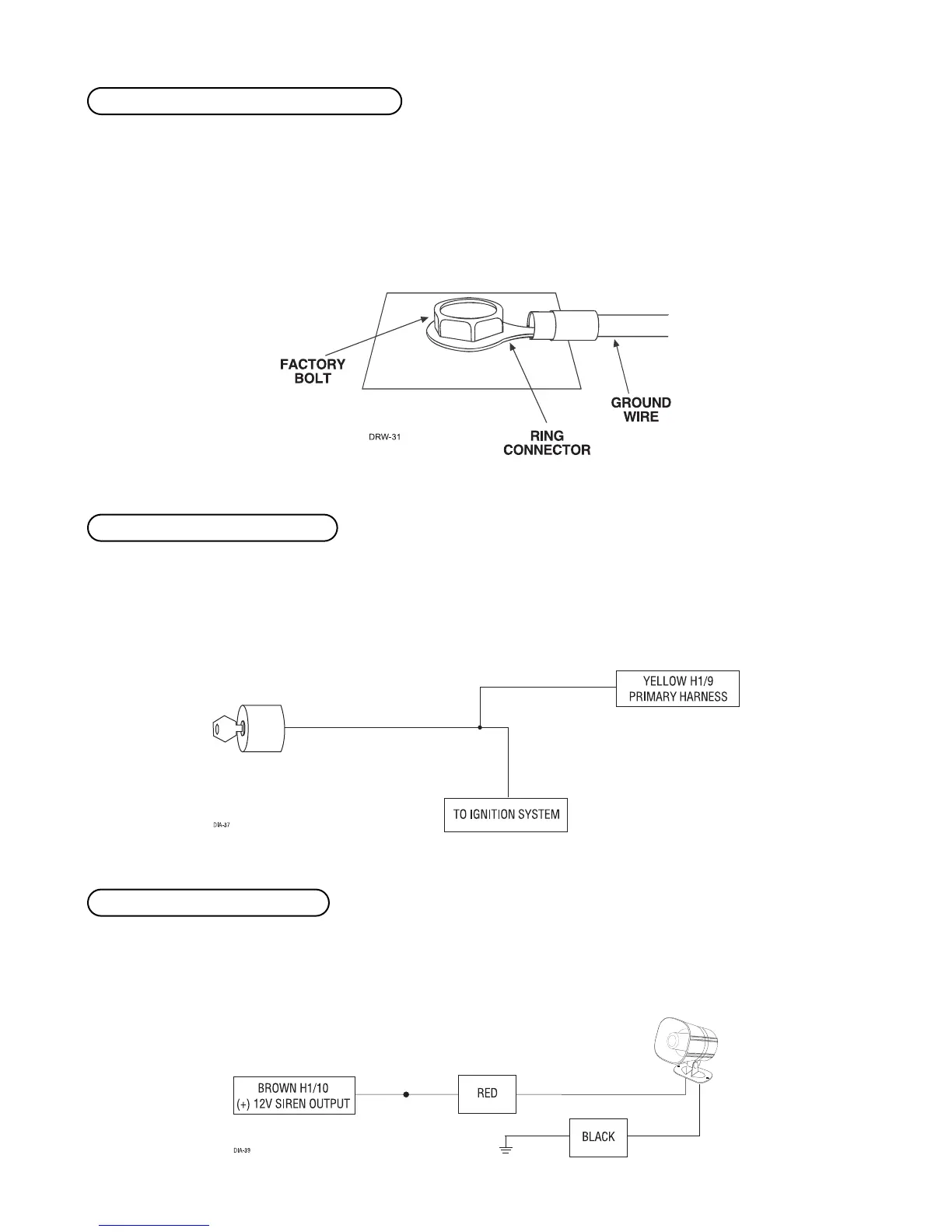

Connect this wire to bare metal, preferably with a factory bolt rather than your own screw. (Screws tend to either
strip or loosen with time.) We recommend grounding all your components, including the siren, to the same point
in the vehicle.
NOTE: Remove any paint below ring connector.
Connect this wire to the (+)12V ignition wire. This wire is pre-wired to the starter kill relay and must show (+)12V
with the key in Run position and during cranking. Take great care that this wire cannot be shorted to the chassis
at any point.
Connect this to the red wire of the Revenger® siren. Connect the black wire of the siren to (-) chassis ground,
preferably at the same point you connect the control module’s black ground wire.
H1/10 BROWN (+) siren output
H1/9 YELLOW (+) ignition input
H1/8 BLACK (-) chassis ground connection
