POCKET ANCHORAGE INSTALLATION

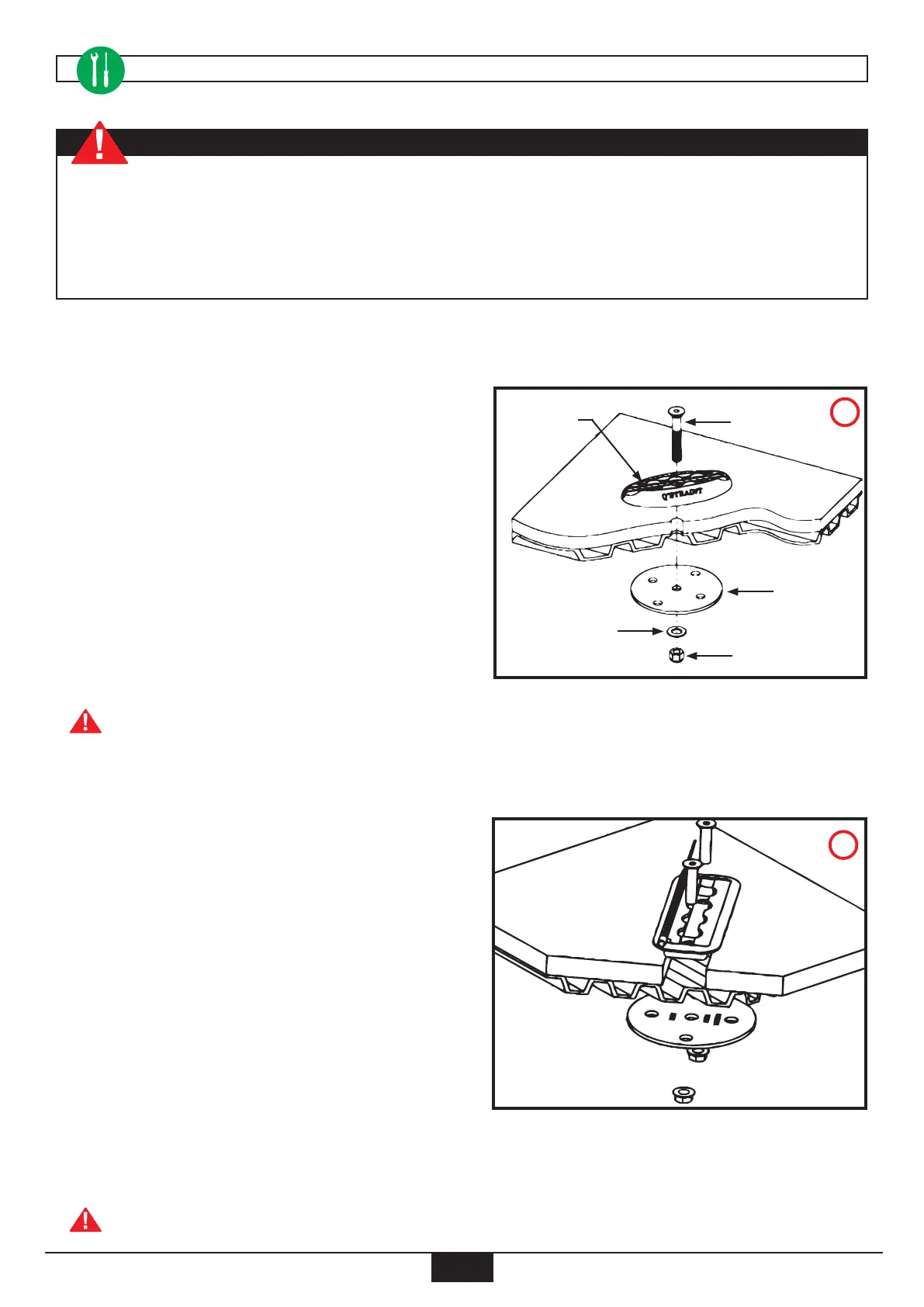

Oval L-Pocket (Part # Q5-7571-A)
1. Use Pocket as template to mark centre of hole to be
drilled
2. Remove pocket and drill 3/8” (10mm) hole through
oor
3. Clean out debris and pass 3/8” (10mm) bolt through
pocket, vehicle oor, Backing plate and Washer. (G)
4. Sealant may be used between Backing plate and oor
is desired
5. Securely fasten bolt and lock nut ensuring at least 2-3
threads are sticking out.
Recommended torque = 35 FT/LB (47 N.m.)
WOOD FLOOR
BOLT
OVAL ‘L’
POCKET
VEHICLE FLOOR
BACKING
PLATE
WALNUT
WASHER
BOLTS
COVERED FLOOR
POCKET
WOOD FLOOR
BACKING PLATE
LOCK NUTS
VEHICLE FLOOR
Covered L-Pocket (Part # Q5-7570-A)
1. Route an area in the oor for each pocket 5.0”
(127mm) long x 1.4” (36mm) wide x 0.4” (10mm)
deep
2. Insert Pocket and use as template to mark centre of
two (2) holes to be drilled (H )
3. Remove pocket and drill two 5/16” (8mm) holes
through oor
4. Clean out debris and place sealant in oor opening.
Reinstall pocket.
5. Pass 5/16” (8mm) bolt through pocket, vehicle oor,
Backing plate and Washer.
6. Sealant may be used between Backing plate and
oor is desired
7. Securely fasten bolt and lock nut ensuring at least
2-3 threads are sticking out.
Recommended Torque=25 FT/LB (34 N.m)
• Pocket may be used with all Q’straint tiedowns EXCEPT QRT3 or QRT5 series retractors.
• Pockets MUST be installed in-line (parallel) to the wheelchair space.
• If not using Q’Straint hardware, only use minimum Grade 8 bolts (reference ASTM 574 bolt specication) coated in
adequate protection against corrosion per ISO 7253 or ASTM B117
G
H
IMPORTANT
Determine location of Anchorages, refer to
Figure 1 & 2
