TESTING THE 4POINT TIEDOWN SYSTEM

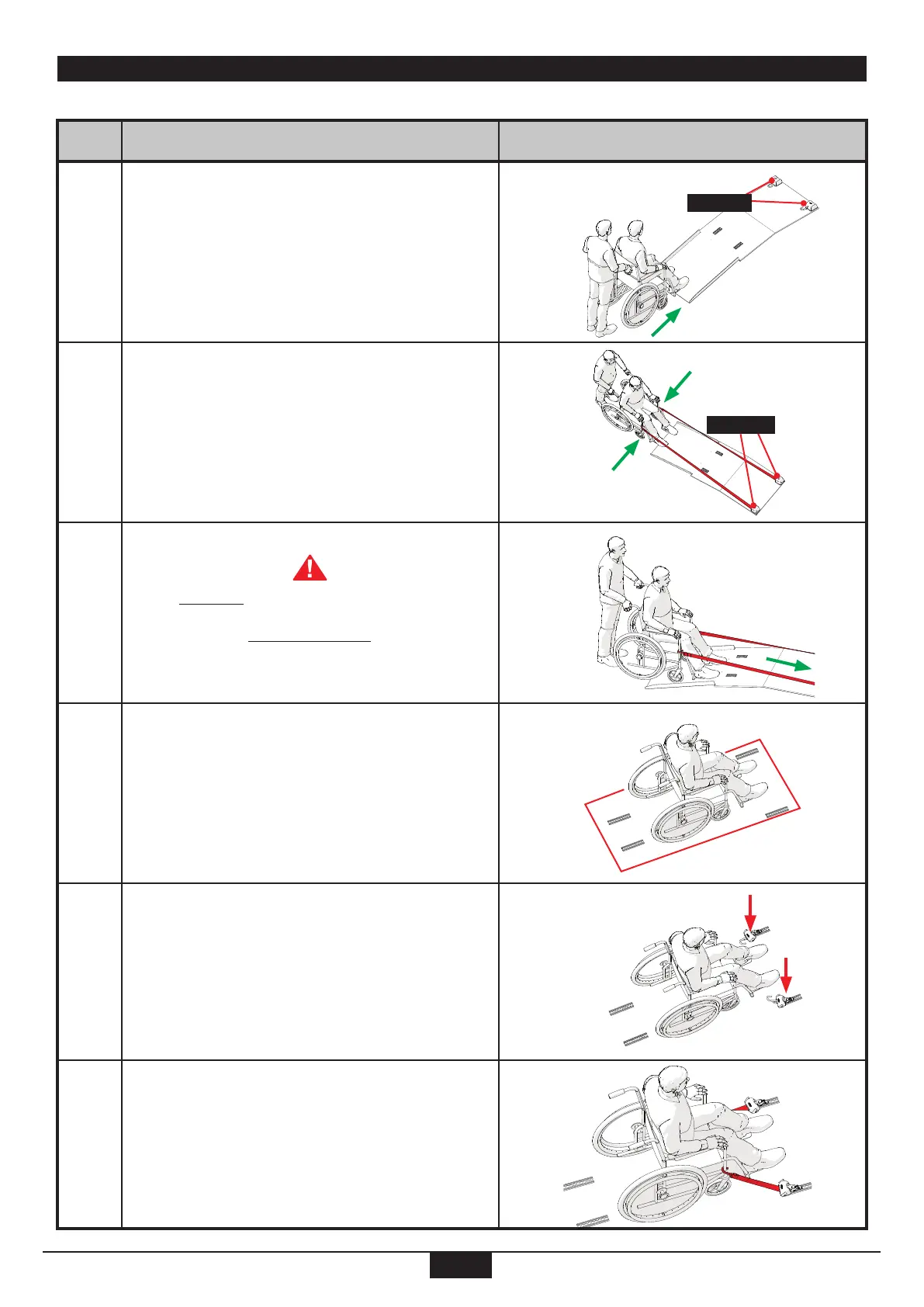

OPERATING SEQUENCE
1
#
Front (QER) Electrical Retractors: (If front retractors are
not electrical follow steps 4-9.) Prior to entering
vehicle, park wheelchair behind ramp, lock
wheelchair brakes and power on
Electrical Retractors.
2
Pull both J-Hooks, attach them to solid wheelchair
securement point, power o Electrical Retractors
and unlock wheelchair brakes.
3
Use CAUTION as you push wheelchair up ramp
and into wheelchair Securement Zone.
Proceed to step 7.
4
Front Mechanical Retractors or Manual Straps:
Center wheelchair facing forward in
Securement Zone.
5
Attach Mechanical Retractor or Front Tiedown
Strap into oor anchorage points and lock
them in place.
8
Power On
8
Power O
6
Completely pull out each Webbing and attach
hooks to solid wheelchair securement point at an
approximate 45 degree angle with oor.
