6. Angle the Electrical Retractor inwards so that the
webbing is aligned with the wheelchair Securement
point (UU).
7. From underneath vehicle oor, put Bolt through Backing
plate, Washer and Locknut (VV).
Recommend using sealant between Backing
Plate and oor.
8. Secure Bolt with Locknut, leaving a minimum of 2-3
threads from Bolt sticking out (WW).
Recommended torque = 35 FT/LB (47 Nm).
9. Repeat steps 2-7 to install the other Electrical Retractor.
UU
V V
WW

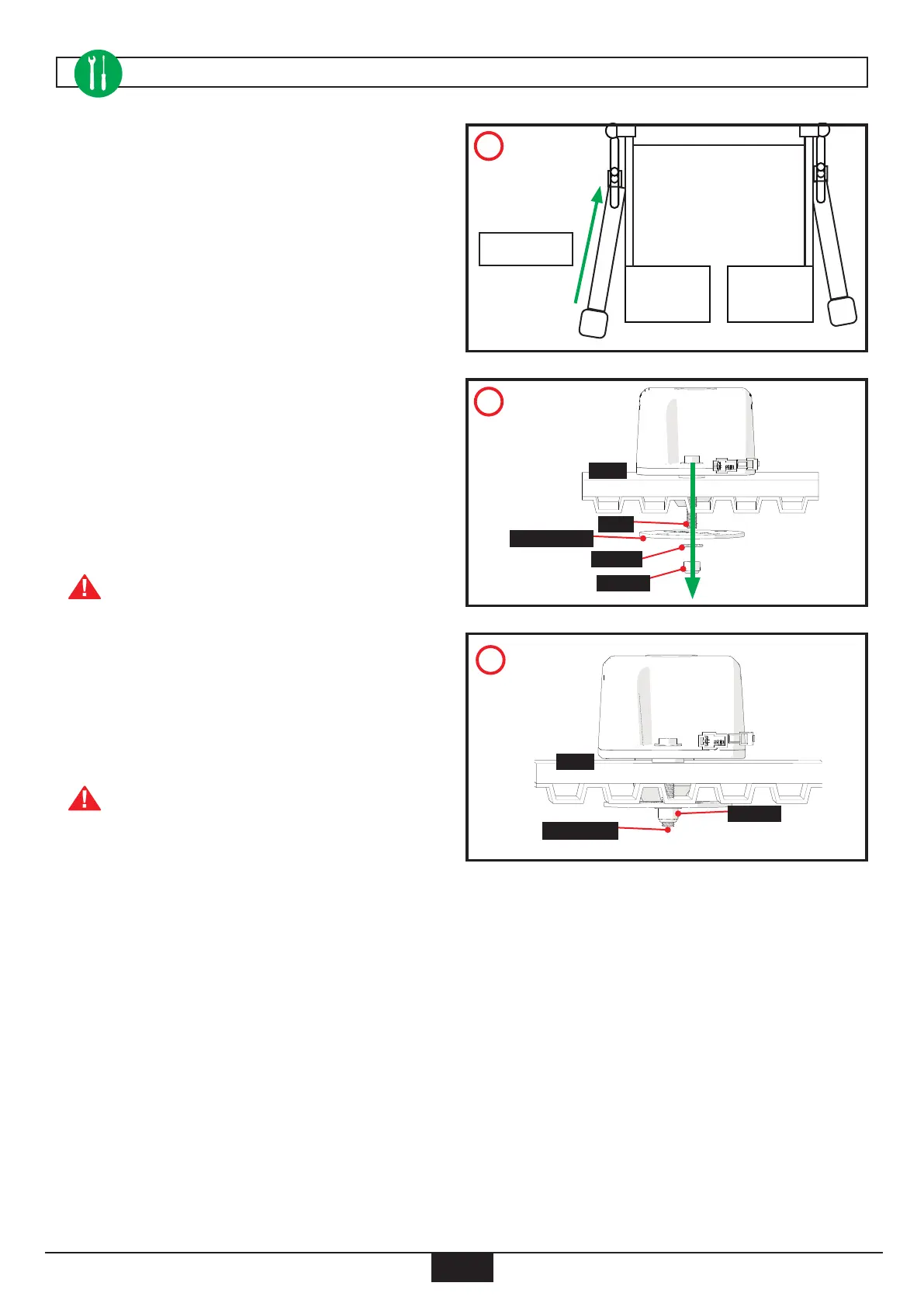

ELECTRICAL RETRACTORS INSTALLATION
8
Floor
8
Bolt
8
Backing Plate
8
Washer
8
Locknut
8
Floor
8
2-3 Threads
8
Locknut
Retractor to Face
Direction of Use
To Next Page
