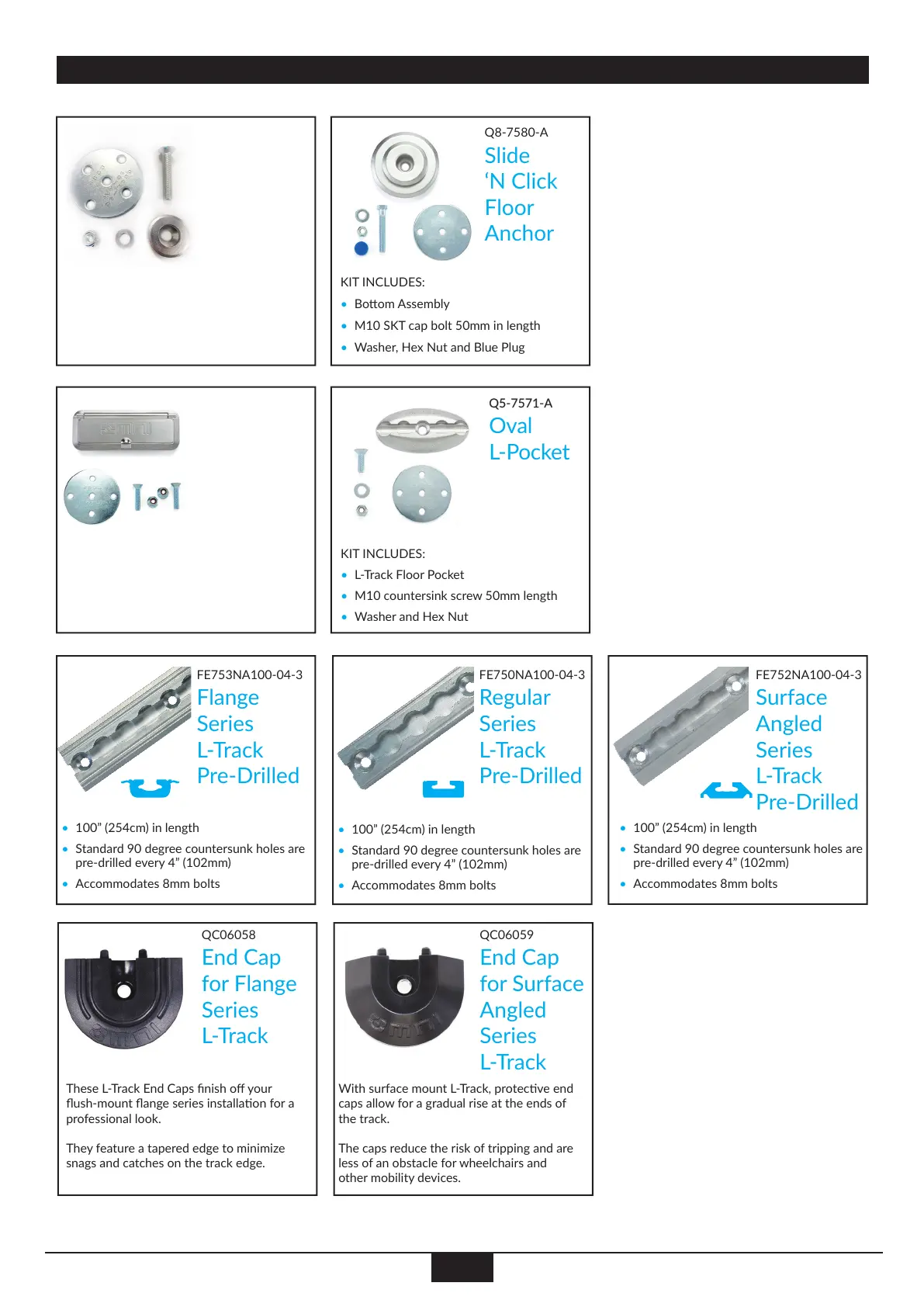

Q'STRAINT QRT-1 Series Installation Manual

8
KIT INCLUDES:
• Boom Assembly
• M10 SKT cap bolt 50mm in length
• Washer, Hex Nut and Blue Plug
Q8-7580-A
Slide
‘N Click
Floor
Anchor
Q5-7570-A
Recessed
L-Pocket
with Cover
KIT INCLUDES:
• L-Track Floor Pocket
• M10 countersink screw 50mm length
• Washer and Hex Nut
Q5-7571-AQ5-7571-A
Oval
L-Pocket
FE753NA100-04-3
Flange
Series
L-Track
Pre-Drilled
• 100” (254cm) in length
• Standard 90 degree countersunk holes are
pre-drilled every 4” (102mm)
• Accommodates 8mm bolts
FE750NA100-04-3
Regular
Series
L-Track
Pre-Drilled
FE752NA100-04-3
Surface
Angled
Series
L-Track
Pre-Drilled
• 100” (254cm) in length
• Standard 90 degree countersunk holes are
pre-drilled every 4” (102mm)
• Accommodates 8mm bolts
• 100” (254cm) in length
• Standard 90 degree countersunk holes are
pre-drilled every 4” (102mm)
• Accommodates 8mm bolts
QC06058
End Cap
for Flange
Series
L-Track
These L-Track End Caps nish o your
ush-mount ange series installaon for a
professional look.
They feature a tapered edge to minimize
snags and catches on the track edge.
QC06059
End Cap
for Surface
Angled
Series
L-Track
With surface mount L-Track, protecve end
caps allow for a gradual rise at the ends of
the track.
The caps reduce the risk of tripping and are
less of an obstacle for wheelchairs and
other mobility devices.
KIT INCLUDES:
• Boom Assembly
• M12 CKS Bolt 70mm in length
• Washer, Hex Nut
Q8-7580-01Q8-7580-01
Mini
Slide
‘N Click
Floor
Anchor
ANCHORAGE AND ACCESSORIES
KIT INCLUDES:
• L-Track Floor Pocket with Cover
• (2) 5/16” (8mm) Bolts 1.5” (38mm)
in length
• Washer and (2) Hex Nuts
