QDI LEGEND-V User Manual

Appendix
A - 2
Retention Mechanism & Pentium
®
II Processor
Installation Procedures

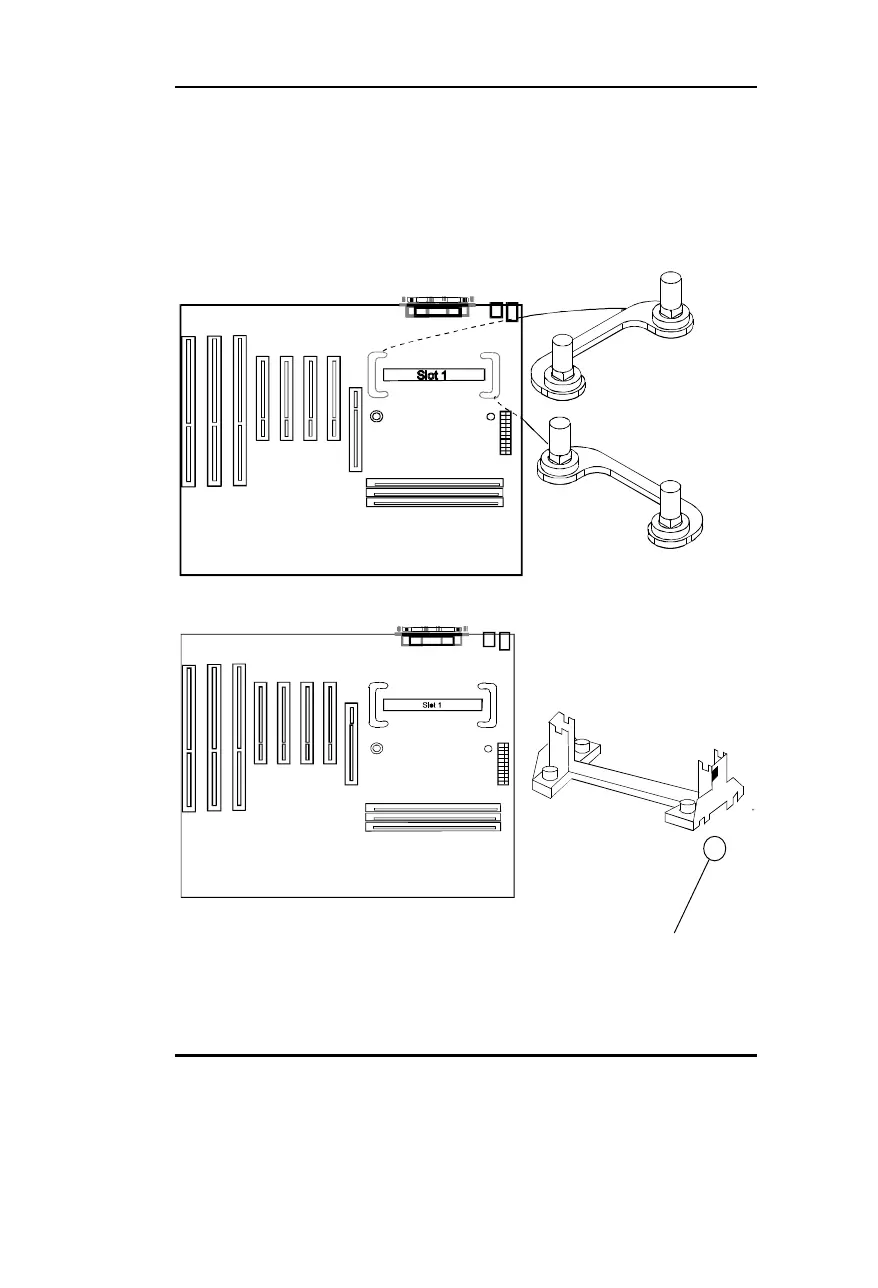

1. Insert the two Retention Mechanism Attach Mount up through
the bottom of the mainboard.
2. Place Plastic Guide with captive nuts on mainboard, then fasten all the four nuts.
Note: Plese pay attention to the direction of the window.
Two Retention
Mechanism Attach Mount
Plastic Guide with four
nuts
Window

QDI LEGEND-V Specifications

General

Form Factor	ATX
CPU Socket	Socket 7
RAM Type	SDRAM
IDE	2
FDD	1
Serial Ports	2
Parallel Port	1
PS/2 Mouse Port	1
PS/2 Keyboard Port	1
RAM Slots	3x DIMM
