QDI Superb 4 Series User Manual

Installation Instructions
Manual for S4 series
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
InstallaInstalla
InstallaInstalla
Installa
tion Instrtion Instr
tion Instrtion Instr
tion Instr
uctionsuctions
uctionsuctions
uctions
This section covers External Connectors and Jumper Settings. Refer to the mainboard
layout chart for locations of all jumpers, external connectors, slots and I/O ports. Further-
more, this section lists all necessary connector pin assignments for your reference. The
particular state of the jumpers, connectors and ports are illustrated in the following figures.
Before setting the jumpers or inserting these connectors, please pay attention to the
directions.

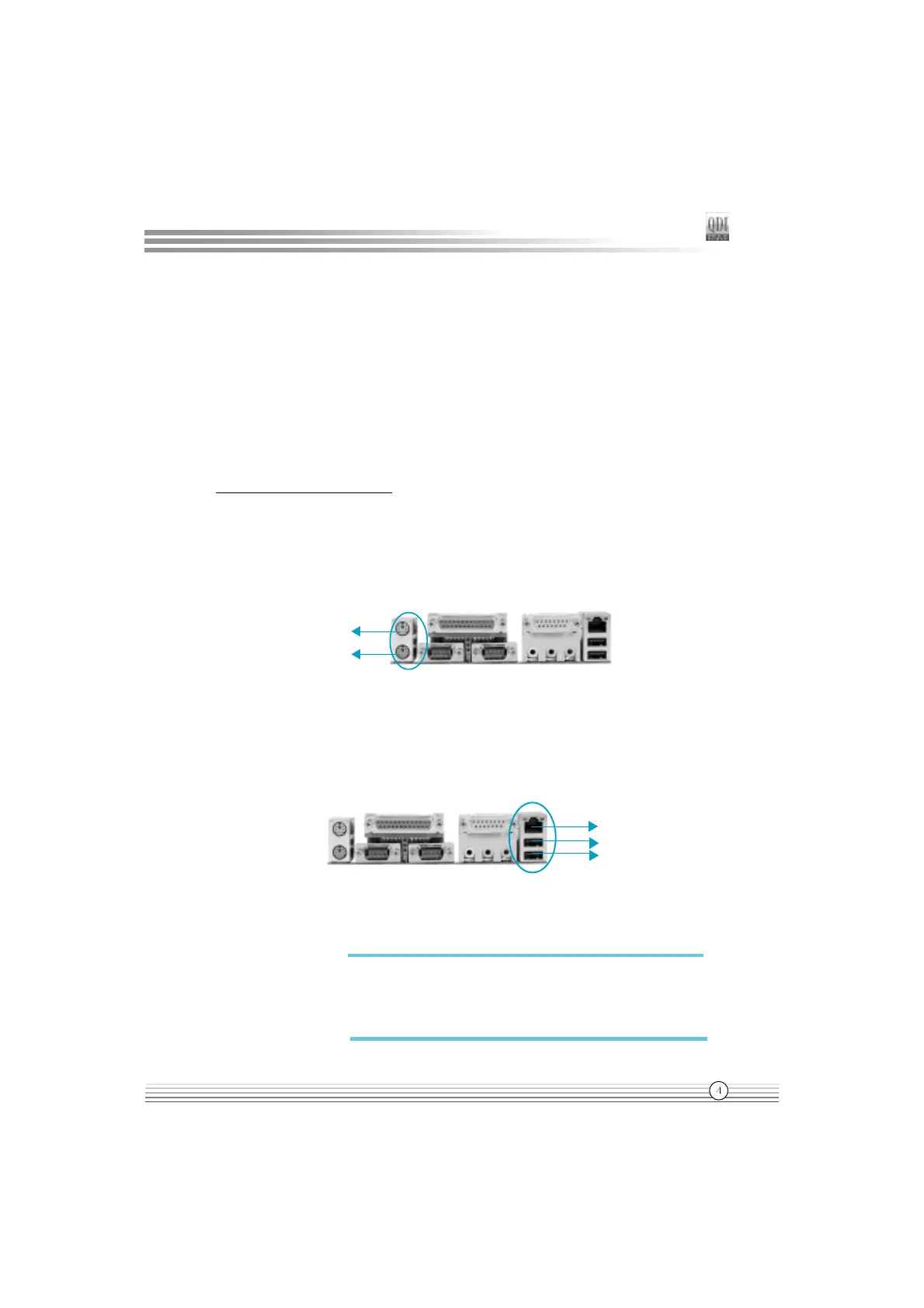

External Connectors
PS/2 Keyboard/Mouse Connector
PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size
keyboard, an adapter should be used to fit this connector. PS/2 mouse connector is for the
usage of PS/2 mouse.
USB1, USB2 and LAN Connectors
Two USB ports are for connecting USB devices.The RJ-45 connector is for onboard LAN,
(LAN connector is available on S4-L/AL mainboard).
PS/2 Mouse connector
PS/2 Keyboard connector
Be sure to unplug the AC power supply before adding or
removing expansion cards or other system peripherals,
otherwise your mainboard and expansion cards might
be seriously damaged.
WW
WW
W
arar
arar
ar
ningning
ningning
ning
WW
WW
W
arar
arar
ar
ningning
ningning
ning
USB1
USB2
LAN(Optional)
