Installation Instructions
Manual for S4 series

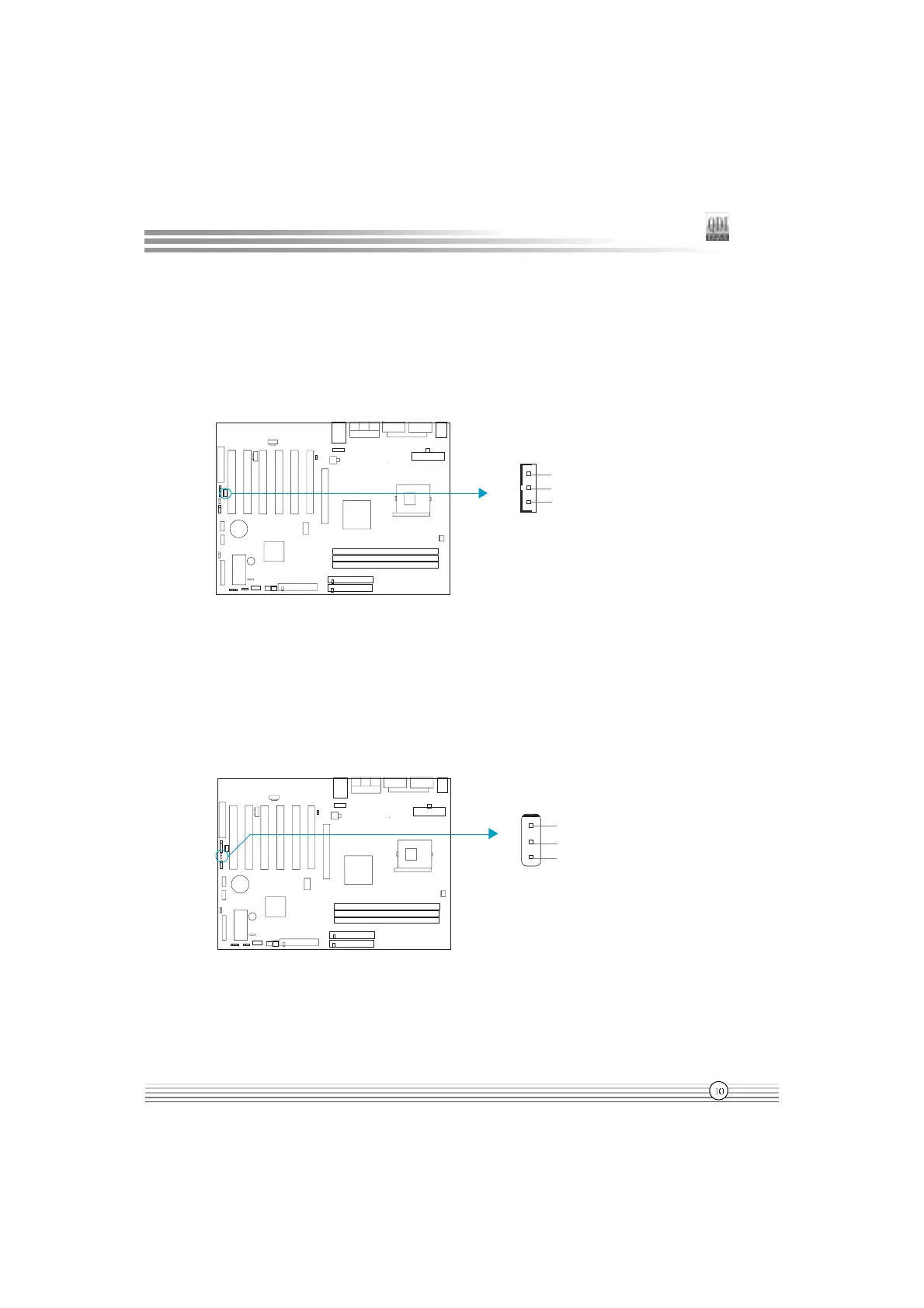

Wake-Up On Internal Modem (WOM)
Through this function, the system which is in the suspend or soft-off status can be
waked up by a ring signal received from the internal modem. When this function is used,
be sure an internal modem card which supports this function is used. Then connect this
header to the relevant connector on the modem card, set Ring Power up Control as
Enabled in the Power Management Setup section of the BIOS. Save and exit, then boot
the operating system once to make sure this function takes effect.
Wake-Up On LAN (WOL)
Through the Wake-Up On LAN function, a wake event occurring from the network can
wake up the system. If this function is to be used, please be sure an ATX12V power, and
a LAN adapter which supports this function is used. Then connect this header to the
relevant connector on the LAN adapter, set Ring Power up Control as Enabled in the
POWER MANAGEMENT SETUP section of the BIOS. Save and exit, then boot the operat-
ing system once to make sure this function takes effect.
1
+5VSB
GND
Signal for waking up
+5V standby
GND
Signal for waking up
1
WOL
WOM
