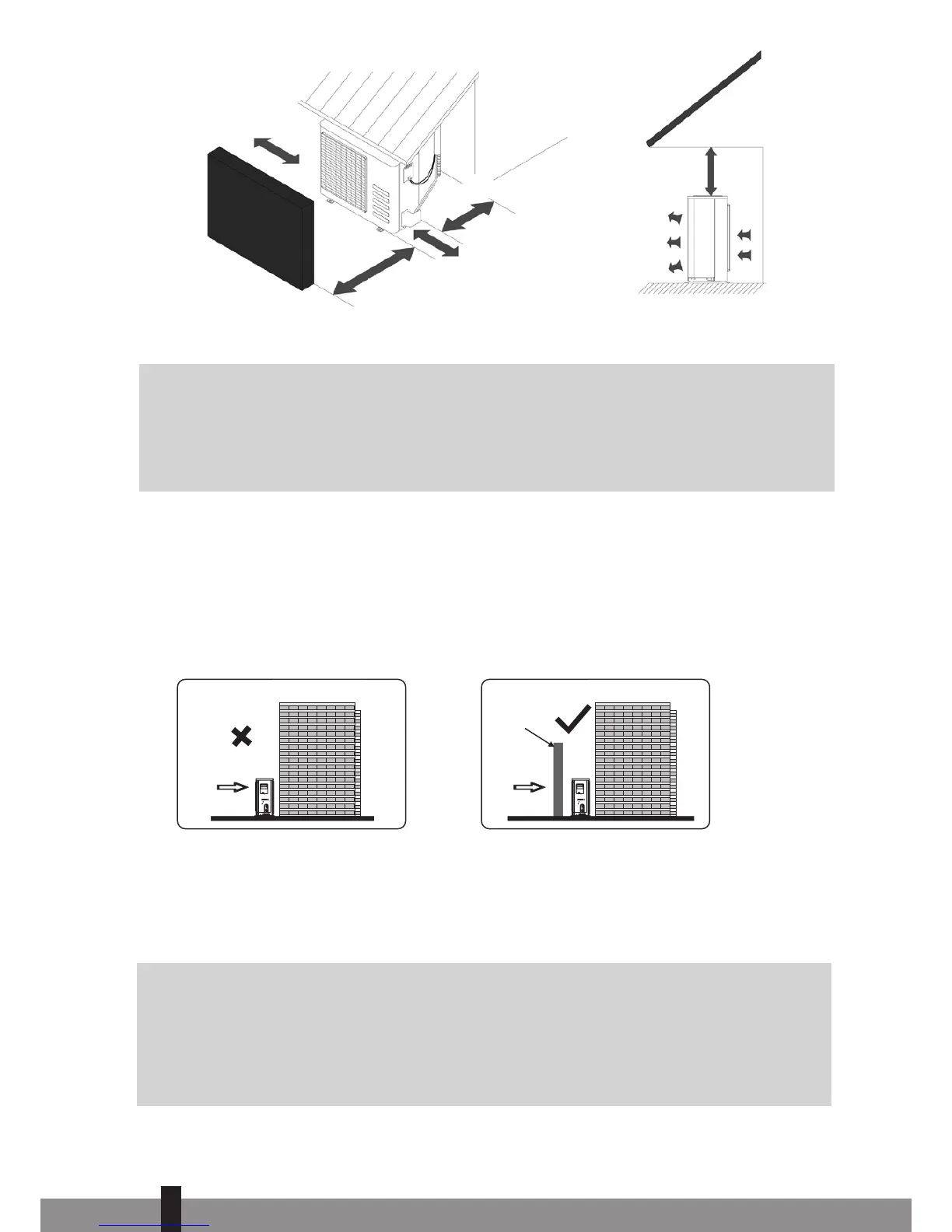

Figure 5
More than 30cm
More than 200cm
More than 60cm
More than 30cm
More than 60cm
Fence or barrier
• When determining the location of the exterior unit take into account the possible location of the
interior unit. The interior and exterior units must be connected by pipes and cables.
G
TAKE CARE
For the SC33xx models: The length of the piping is 4 metres.
For the S33xx models: The maximum length of the piping between the interior and exterior unit
is 20 metres.
The maximum difference in height between the interior and exterior unit is
8 metres.
• Do not place animals and plants or other obstacles in the path of the air inlet or outlet.
• Always install the air conditioner at an easily accessible location.
• Consult and follow local legislation regarding mounting and installation of air conditioner equip-
ment.
• In the case that the installation place is exposed to strong wind such as a seaside, make sure the fan
is operating properly by putting the unit lengthwise along the wall or using a dust or shield plates.
See picture 6.
Strong
wind
Strong
wind
Barrier
Incorrect
Correct
Figure 6
Strong
wind
Strong
wind
Wall
Incorrect Correct
• If the exterior unit is installed on a roofing structure or exterior wall then it can result in bothersome
noise and vibrations.
• Ensure that the exterior unit can be attached to a stable substructure.
G
ATTENTION
If need suspending installation, the installation bracket should accord with all technical
requirements. The installation wall should be strong enough or actions to reinforce should be
taken. The connection between bracket and wall, bracket and the air conditioner should be firm,
stable and reliable. In case of any doubts or uncertainty do not attempt to install the unit but
have the support calculated and engineered by a skilled engineer.
