46
8
9
7
C
B
A
6
2
3
1
15 cm or more
12 cm or more
12 cm or more
Air filter
LEFT
30 cm or more
Air outlet
60 cm above
FRONT
200 cm or more
BACK
30 cm or more
RIGHT
60 cm or more
Loop the
connective cable
Remote Controller
Mounting screw B
ST2.9x10-C-H
Remote controller holder

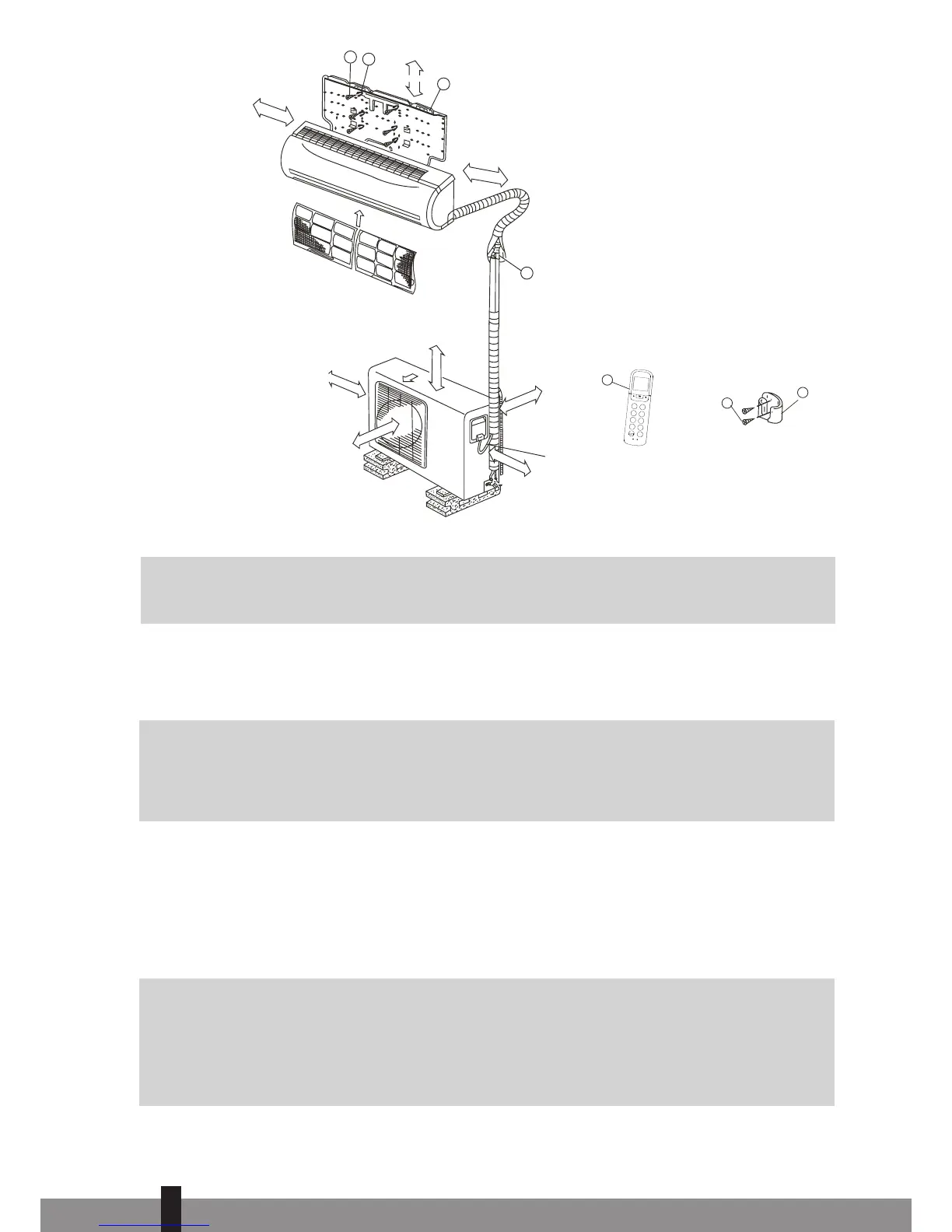

Figure 1
G
ATTENTION
This illustration is for explanation and indication purposes only. The illustration may be different
from the air conditioner you purchased.
3. ACTIVITIES FOR INSTALLING THE AIR CONDITIONER FOR THE SC3XX MODELS
a. Decide where to position the indoor and outdoor unit. See chapter 5 and 6.
G
CAUTION
• Keep in mind where the condensation can be drained off to.
• The distance between indoor and outdoor unit can be max. 4 m (the length of the piping).
b. Fit the Installation Plate for the indoor unit. See chapter 7.1
c. Drill a hole to outside that the piping can be fed through. See chapter 7.2.
d. Feed the piping from the interior unit through the hole in the wall and hang the interior unit, using
the hooks on the back, to the topmost hooks on the installation plate and confirm that the unit is
properly attached. Do not click the bottom hooks in yet.
G
The piping package, coupled to the interior unit, is heavy. Never let the piping package hang
freely from the interior unit. Support the whole piping package during installation of the interior
unit. The weight of the piping package can cause the piping on the interior unit to bend and even
break. Damage to the piping on the interior unit is caused by unprofessional installation and are
not covered by the guarantee.
4
46
