G
CAUTION
if the piping is exiting the unit behind on the right then the piping must be fed through the
drilled hole at the same time as hanging the interior unit.
e. Feed the piping, the power cable and the condensation hose through the hole in the wall.
G
TIP
The piping, power cable and condensation hose can be attached easier
by pulling the bottom of the interior unit about 5 cm from the wall and temporarily inserting
something so that the gap stays open, see figure 3.
f. Connect the coolant pipes, the power cables and the condensation hose to the interior unit. See
chapter 8.2, 9, 10 and 11.2.
g. Position the exterior unit see chapter 5.2
h. Connect the piping and the power cable to the exterior unit. See chapter 11.2.
i. Vacuum the cooling unit. See chapter 12.
j. Check the cooling circuit for leakages. See chapter 13.
k. Check that the entire system is properly installed.
l. Connect the plug of the power supply cable to the power supply and check that the air conditioner
is working properly. See chapter 15.

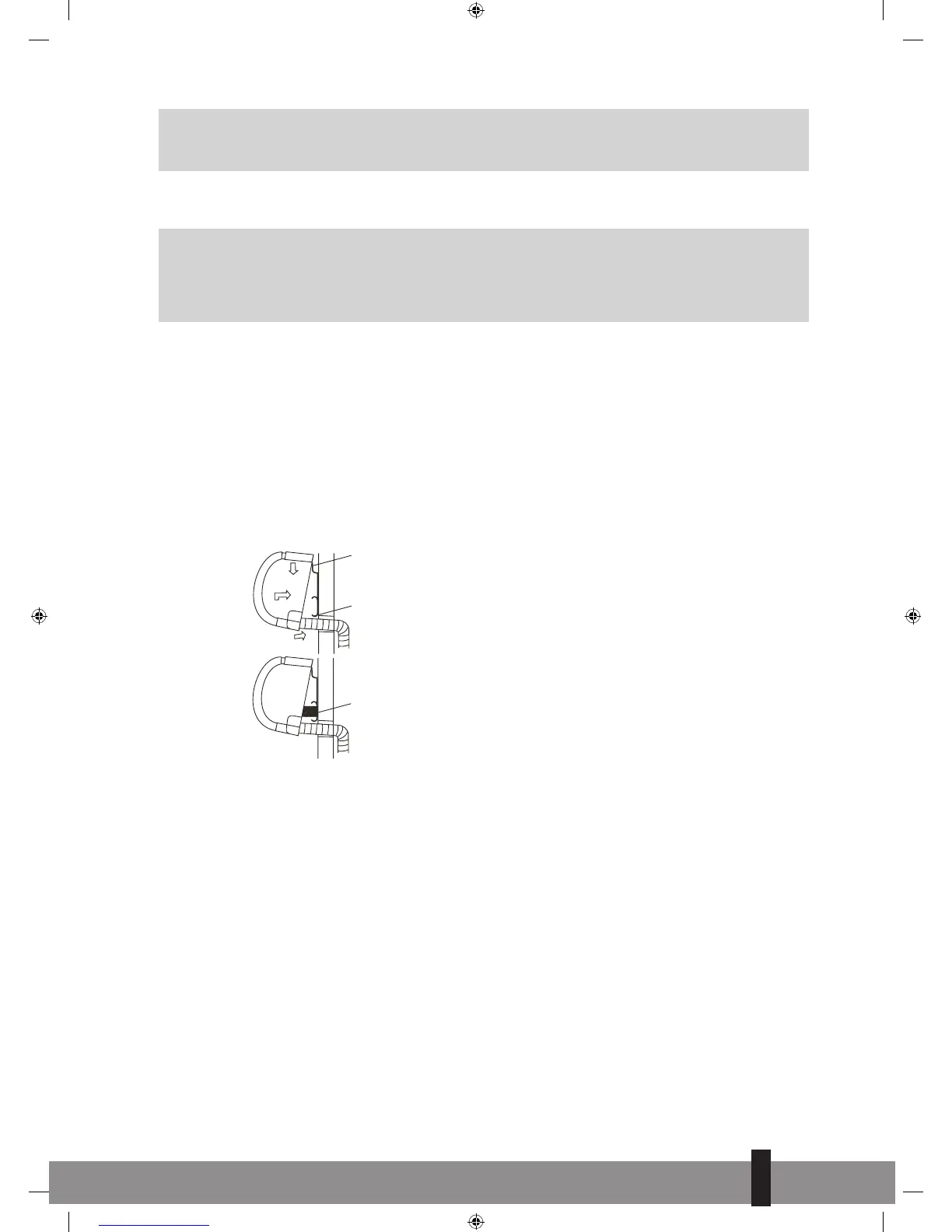

Upper Hook
Lower Hook
Cushion
material
Figure 3
4. DETERMINING THE LOCATION OF THE INSIDE AND OUTSIDE UNIT.
4.1 Determining the location of the inside and outside unit for the
S-JA2518 models.
• Do not expose the indoor unit to heat or steam.
• Select a place where there are no obstacles in front or around the unit.
• Make sure that condensation drainage can be conveniently routed away continuously going down-
wards.
• Do not install near a doorway.
• Ensure that the space on the left and right of the unit is more than 12cm.
• Use a wire detector to detect wires and/or electric cables. to locate studs to prevent unnecessary
damage to the wall.
• The top of the indoor unit should be installed on the wall at a height of 2.3 metres or more from the
floor.
